Polypropylene Polymer Synthetic MacroFiber For Concrete Reinforcement
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
| Minimum Order Quantity : | 500 kgs | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1.0 kg/ PE bag, 10 kgs/plastic woven bag | Payment Terms : | T/T, L/C, D/P, Western Union |
| Supply Ability : | 600 tons per month |
| Place of Origin: | China | Brand Name: | Elite-indus |
|---|---|---|---|
| Certification: | ISO, CE, FDA | Model Number: | PMFT-0012 |
|
Detail Information |
|||
| Delivery Time: | 3-15 Days | Product Name: | Polypropylene Macro Synthetic Fiber |
|---|---|---|---|
| Fiber Type: | Curved Wave/Undee | Tensile Strength: | ≥ 480Mpa |
| Acid & Alkali Resistance: | Strong | Application: | Concrete Of Industrial Flooring |
| Free Sample: | 1kg | Color: | White, Black, Grey |
| Length: | 38mm, 48mm, 51mm, 54mm | ||
| High Light: | macro synthetic fibers,synthetic polymer fibers |
||
Product Description
Polypropylene Macro Synthetic Fiber Twist Form is virgin polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers, welded wire mesh and conventional reinforcing bars in a wide variety of applications.
Polypropylene Macro Synthetic Fiber comply with ISO CE and suitable for Concrete and Shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements.
Concrete with our Macro fiber will have three-dimensional reinforcing with enhanced flexural toughness, impact and abrasion resistance and will also help mitigate the formation of plastic shrinkage cracking in concrete.
Dosage rates will vary depending upon the reinforcing requirements and can range from 2.7 kg/m³ to 5.5 kg/m³.
|
Raw Material :
|
100% Virgin Copolymer
|
Crack Elongation
|
20+/-5%
|
|
Fiber Type :
|
Twist or hybrid
|
Equivalent Dia.
|
0.3+/-0.03mm
|
|
Melting Point(C Deg.) :
|
160 - 170
|
Density (g/cm3)
|
0.91+/-0.01
|
|
Elastic Modulas(Mpa):
|
3500 min
|
Tensile Strength (MPa)
|
480 min.
|
|
Length:
|
30mm, 48mm, 54mm or as per request
|
||

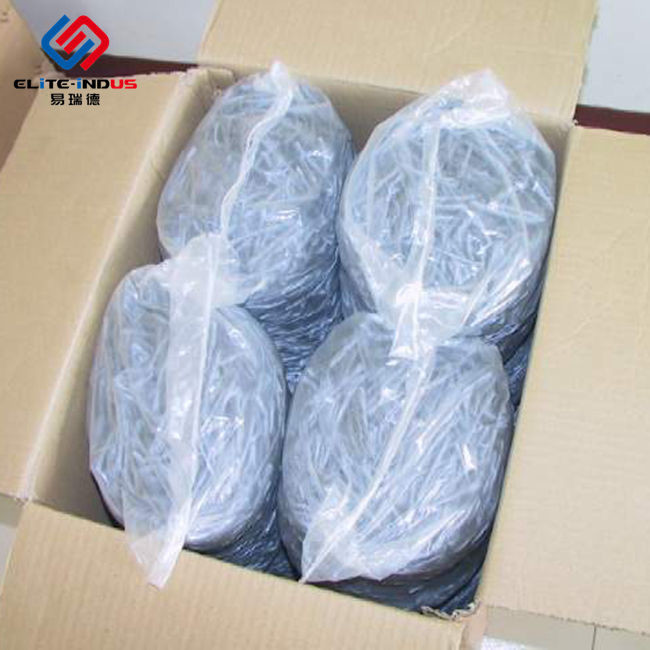

Packing 1 : 1.0kg per PE bag; 10 kgs/plastic woven bag;
total 5500 kgs/1x20`gp; 13000kgs/1x40`hq
Packing 2: 0.5kg/ 1.0kg per water soluble paper bag, 10 kgs/ carton
total 3600 kgs/1x20`gp; 9000 kgs/1x40`hq
|
Delivery Time
|
3-15 days after deposit (we always keep inventory)
|
|
Sample Time
|
1-3 days after confirmation
|
|
Production Time
|
7-15days
|
|
Payment Methods
|
T/T, L/C, or as per negotiate
|
1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg/m³ ( volume ratio is 0.3% ), reinforcement adding amount is 5.5kg/m³ , Compared with adding 47kg of steel fibre, 5.4kg macro synthetic fibre has the same volume ratio to the concrete.
2, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the macro synthetic fibre is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
3, Mixer Adoption: Double-axle horizontal compelling mixer is priority.
4, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely Mixed.
5, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same as the normal concrete.
• Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
• Thin walled pre-cast (septic tanks, vaults, walls, etc.)
• Shotcrete for tunnel linings, pool construction and slope stabilization
• Pavements and white-toppings
Compared with steel fiber, Macro synthetic fiber has the advantages of anti-corrosion and wear-resistant reducing 50% cost with same volume to steel fiber.
1. Decrease the fragility of high strength concrete;
2. Increase the quality of concrete;
3. Increase the freezing resistance of concrete;
4. Increase the impact resistance of concrete;
5. Increase the durability resistance of cncrete;
6. Increase the fire resistance of concrete.
Including Macro Synthetic Fiber Wave, we we also produce:
1. Polypropylene Micro fiber monofilament, fibrillated
2. Macro synthetic fiber Twist, Wave, Hybrid
3. Polyester (PET) Fiber for Bitumen concrete
ELITE was established in 2007, has become one of the leading and professional suppliers of many kinds of Concrete Rei-nforcement Fibers in the world market.
ELITE fibers are made by 100% virgin PP materials with advanced equipment of yarn and cutting. We have one full set of precise testing instrument and quality inspection team, technology research & Development team.
Sales Team
Elite own a team with 10+ years experience.
We know well of Chinese Concrete reinforcement fibers on technical inspection, marketing, transportation
Exhibition
We have been to many international exhibitions all over the world. Hope to chat with all our customers face to face.
Recently exhibition information pls refer to our website.
