Home ProductsGeocomposite Drainage Net

Landfill Drainage Geocomposite Drainage Net 3D Geonet Composite Geotextile

Landfill Drainage Geocomposite Drainage Net 3D Geonet Composite Geotextile

    • Landfill Drainage Geocomposite Drainage Net 3D Geonet Composite Geotextile
    • Landfill Drainage Geocomposite Drainage Net 3D Geonet Composite Geotextile
  • Landfill Drainage Geocomposite Drainage Net 3D Geonet Composite Geotextile

    Product Details:

    Place of Origin: Anhui, China
    Brand Name: Elite-Indus
    Certification: ISO CE
    Model Number: FGGG

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000m2
    Price: Negotiation
    Packaging Details: 50m a roll
    Payment Terms: L/C, D/P, T/T, Western Union
    Supply Ability: 10000m2 a day
    Contact Now
    Detailed Product Description
    Geonet Material: HDPE Geonet Thickness: 5mm To 8MM, Normal Is 5mm 5.5mm 6mm
    Geotextile Material: PP Or PET Geotextile Weight: 100g/m2 To 500g/m2,normal Is 150g 200g
    Width: 1m To 4m, Normal Is 2m And 3.9m Length: Normal Is 50M
    Application: Landfill Drainage

             Geocomposite For Drainage

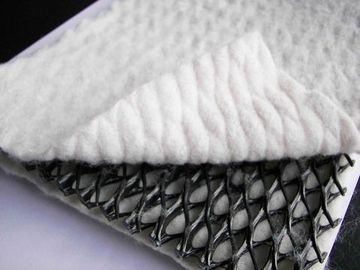

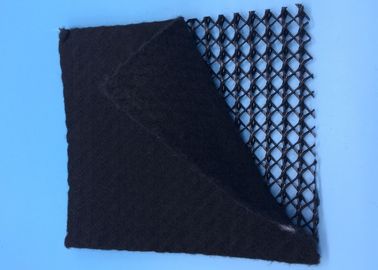

    (        3D Geonet Composite Geotextile



             Introduction:



    Geocomposte for drainage is made of a unique tri-dimension geonet coated geotextile on one side or both sides. It has the property of geotextile(filtration function) and geonet (drainage and protection) and provide a function system Filtration-Drainage-Protection.



    The Core of net its unique tri-dimension structure can bear higher compressing load in construction and remain the certain thickness. Provide good water conductivity.



    Performance:



    1, Excellent drainage function, can bear long time high press load.

    2, High tensile and shear strength.

    3, Reduce the rete geotextile embedding into the core of geonet,

    can protect long time stable water conductivity

    4, tri-dimension composite geonet for drainage can bear

    more than 20Kpa compression load.

    5, Anti-compression capacity is much larger than common geonet for frainage



    Application:



    1, Landfill drainage;

    2, Roadbed and road drainage;

    3, Railway drainage, tunnel drainage,

    underground structure drainage.
    4, The retaining back wall drainage,

    5, gardens and sports grounds drainage.



             Technical specifications:



    Geonet Thickness: 5.0MM to 7.6MM

    Geotextile Type: PET/PP Nonwoven Unit Weight: 100g/m2 to 500g/m2



    Drainage network core Units Specification
    Unit weight g/m2 750 1000 1300 1600
    Thickness OV=20kpa mm 5.0 6.0 7.0 7.6
    Hydraulic conductivity m/s K×10-4 K×10-4 K×10-3 K×10-3
    Elongation % <50 <50 <50 <50
    Tensile strength(core network) KN/m 8 10 12 14
    Geotextiles g/m2 100 to 500,normal is 150/200/250
    Normal Roll Size m 2.0X50 or 3.9X50
