Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

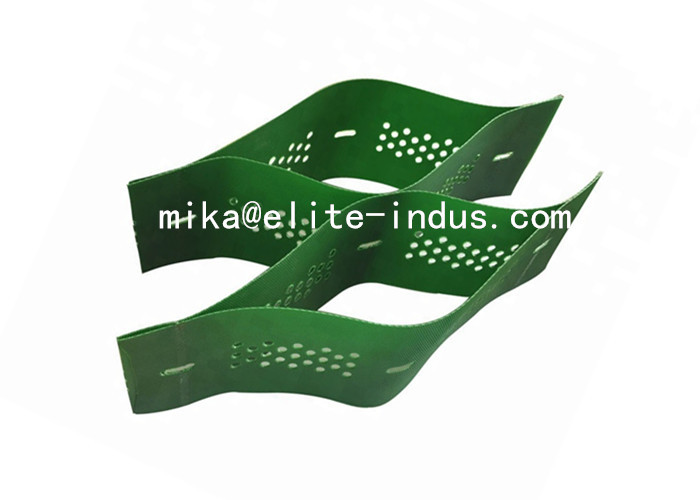

    • Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

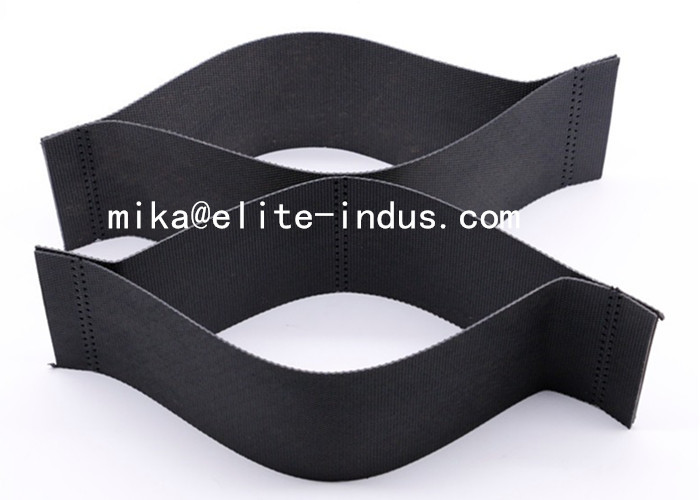

    • Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

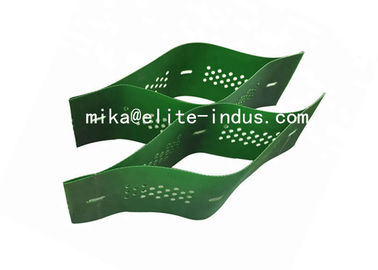

    • Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

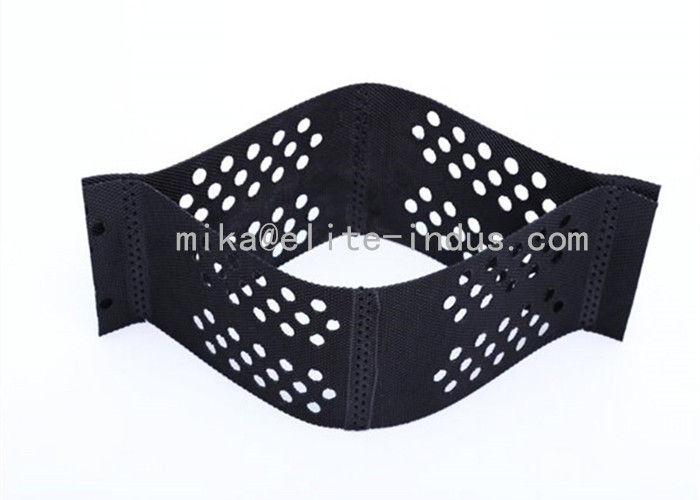

    • Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

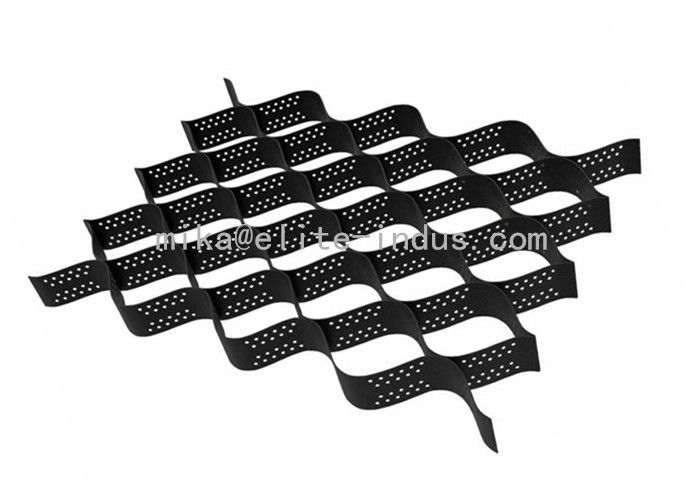

    • Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

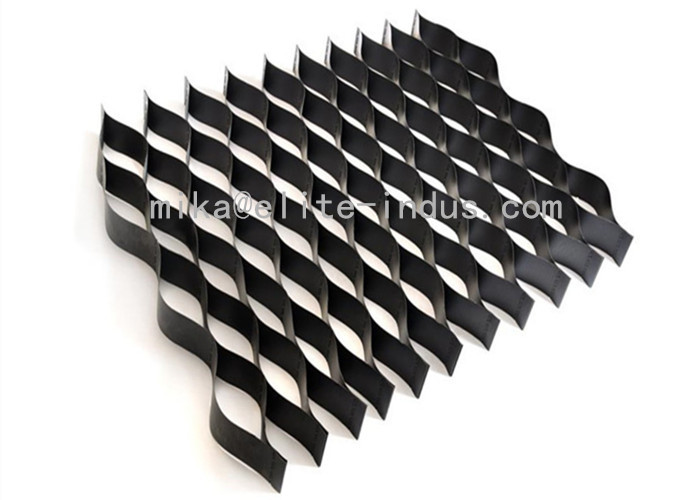

    • Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm
  • Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

    Product Details:

    Place of Origin: Anhui, China
    Brand Name: Elite-Indus
    Certification: ISO CE
    Model Number: Eltcell

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000m2
    Price: Negotiation
    Packaging Details: one set a packing on pallet
    Payment Terms: L/C, D/P, T/T, Western Union
    Supply Ability: 6000m2 a day
    Contact Now
    Detailed Product Description
    Material: 100% Virgin HDPE Resin Normal Color: Black, Other Color Can As Per Your Request
    Cell Height: Normal 50mm 100mm 150mm 200mm Welding Distance: Normal 330mm 356mm 455mm 712mm
    Seam Peel Strength: 1450N/10mm Application: Soil Stabilization

    Earthwork Products HDPE Plastic Geocell Welding distance 300mm-1600mm For Soil Stability

    HDPE Geocell Introduction :



    ¨ ELTcell HDPE Geocell is a lightweight and flexible three-dimensional,expandable panels made from high-density polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.

    Geocell system can be filled with a wide range of material: aggregate,concrete,sand,soil,etc.



    ¨ ELTcell is engineered for soil stabilization applications,it is used to help improve the performance of standard

    Construction materials and erosion-control treatments.



    Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm



    HDPE Geocell Production Process:



    Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm

    HDPE Geocell Applications:



    ¨ Load Support

    ¨ Slope Protection

    ¨ Retaining Wall

    ¨ Channel Protection

    ¨ Ground Stabilization

    ¨ Erosion control



    Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm





    HDPE Geocell Specifications



    Cell Test Method Units Values
    ¨ Cell Depth - mm 50-300(±0.5)
    ¨ Weld Spacing - mm 220-1600(±1.0)
    ¨ Surface - - Smooth/Textured&Perforated
    ¨ Color - - Black/Green/Sand



    Property
    ¨ Material -   Virgin HDPE
    ¨ ESCR ASTM D1603 hr 400
    ¨ Density ASTM D1505 g/cm3 0.945-0.960
    ¨ Thickness (smooth) ASTM D5199 mm 1.20 (-5% +10%)
    ¨ Thickness (Textured) ASTM D5199 mm 1.50 (-5% +10%)
    ¨ Carbon Black ASTM D1603 % ≥ 1.5
    ¨ Seam Peel Strength USACE GL-86-19 N ≥ 15KN/m
    ¨ Tensile Strength at Break ASTM D638 kN/m2 ≥ 32000 (TD) / ≥ 30000 kN (MD)
    ¨ Elongation at Break ASTM D6693   ≥ 900 (TD) / ≥ 480 (MD)
    ¨ Oxidative Induction Time ASTM D3895 min ≥150






    ¨ Long-term Seam Peel Strength

    Long term seam peel strength test shall be performed on all resin or pre-manufactured sheet or strips. A 100mm wide seam sample shall support a 72.5kg load for a period of 168 hours minimum in a temperature controlled environment undergoing a temperature change on a 1-hour cycle from 23℃ to 54℃



    Standard Dimensions 356mm 445mm 712mm
    ¨ Nominal Expanded Cell Size 252mmx252mm 315mmx315mm 503mmx503mm
    ¨ Nominal Section Size 2.52mx7.3m 2.52mx9.12m 2.52mx14.6m
    ¨ Nominal Section Area 18.37m2 22.96m2 36.74m2



    HDPE Geocell Testing



    Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm





    HDPE Geocell Packing:



    Earthwork Products HDPE Geocell Soil Stabilization Welding Distance 300mm-1600mm
