Desert Sand Brown Needle Punched Geotextile 200g 300g For Separation / Filtration

Desert Sand Brown Needle Punched Geotextile 200g 300g For Separation / Filtration

    • Desert Sand Brown Needle Punched Geotextile 200g 300g For Separation / Filtration
    • Desert Sand Brown Needle Punched Geotextile 200g 300g For Separation / Filtration
    • Desert Sand Brown Needle Punched Geotextile 200g 300g For Separation / Filtration
  • Desert Sand Brown Needle Punched Geotextile 200g 300g For Separation / Filtration

    Product Details:

    Place of Origin: Anhui, China
    Brand Name: Elite-Indus
    Certification: ISO CE
    Model Number: NWPET

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000m2
    Price: Negotiation
    Packaging Details: 1roll/packing
    Payment Terms: L/C, D/P, T/T, Western Union
    Supply Ability: 30000M2 A DAY
    Contact Now
    Detailed Product Description
    Material: Polyester Unit Weight: 100g/m2 To 1300g/m2
    Width: 1m To 8m, Normal Is 3.95m/5.8m Length: 100m Or As Request
    Application: Separation / Filtration Color: Desert Sand Brown

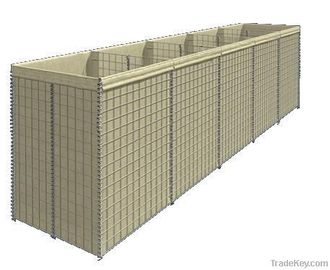

    Desert Sand Brown Color Polyester Nonwoven Geotextiles 200g 300g Used for Hesco



                                                                      --------EltTex-NWPET



    Non woven Geotextile Introduction:



    EltTex-NWPET geotextile is made of polyester Short Fiber. It is production process include fluffing, comb, mix, laying then needle punched.



    Non woven Geotextile Property:



    1, Filtration

    2, Drainage

    3,Reinforcement

    4, Protection

    5, Separation

    6,Waterproofing



    Non woven Geotextile Application:



    It is widely used for separation, filtration, drainage, reinforcement, protection, sealing in reservoir, hydropower, highway, railway, port, airport, sports ground, tunnel, coastal beach, reclamation, environmental area.



    Non woven Geotextile Packaging:



    PP woven bag / PE film , Width1-8m, length 50m-100m (or at your requested)



    Non woven Geotextile Main specification:



    Type: Nonwoven geotextile

    Weight: 100g/m2----1200g/m2

    Width: 1.0m--------8.0m(Normal 3.95M and 5.8M)

    Length: normal 50m or 100m (Also can at your request)

    Color:White/Black or as per your request



    Non woven Geotextile Technical Specification:



    NO.



    Item Technical Specification(GB/T17638-1998)
    100 150 200 250 300 350 400 450 500 600 800
    1 Unit Weight Variation,% -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6
    2 Thickness, mm ≥ 0.9 1.3 1.7 2.1 2.4 2.7 3.0 3.3 3.6 4.1 5.0
    3 Width Variation, % -0.5
    4 Breaking Strength, KN/m ≥ 2.5 4.5 6.5 8.0 9.5 11.0 12.5 14.0 16.0 19 25
    5 Breaking Elongation, % 25~100
    6

    CBR Mullen

    Burst Strength KN ≥

    0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4.0
    7 Sieve Size, mm 0.07~0.2
    8 Vertical Permeability Coefficient K×(10-1~10-3)cm/s
    9 Tear Strength KN ≥ 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6
