Stretched PP Extruded Geogrid Reinforcement For Roads ASTM D 6637 30 / 30kn

Basic Information
Place of Origin: China
Brand Name: elite-Indus
Certification: ISO CE
Model Number: PPBG
Minimum Order Quantity: 5000 sq.m
Price: 0.45-0.65
Packaging Details: 3.95 * 50 m/ roll
Delivery Time: 10-15 working days
Payment Terms: Western Union, L/C, T/T

ASTM D 6637 Stretched PP Extruded Geogrid 30/30kn ground reinforcement grid

PP Biaxial Geogrid is made of polypropylene,mainly applied in highway, railway, slope protecting projects

Function
1. Improving bearing capacity of road foundation and prolong its service life
2. Preventing road surface from subsiding and cracking
3. Be convenient for construction, reducing cost and maintaining expense for the project
4. Providing stability for slopes and avoid the losing of the water and soil.



Features
1.Wth high tensile strength in longitudinal and transverse directions.
2.Provide an chain system of more effective force bearing and spreading for the soil.



Application
Baxilal geogrid is applicable to the reinforcement of permanent load-carrying foundations of large areas.



Specification:  30/30 KN
Index Properties Test Method Units MD Values TD Values

¨Polymer - - PP -
¨Minimum Carbon Black ASTM D 4218 % 2 -
¨Tensile Strength @ 2% Strain ASTM D 6637 kN/m 10.5 10.5
¨Tensile Strength @ 5% Strain ASTM D 6637 kN/m 21 21
¨Ultimate Tensile Strength ASTM D 6637 kN/m 30 30
¨Strain @ Ultimate Strength ASTM D 6637 % 13 10
Structural Integrity

¨Junction Efficiency GRI GG2 % 95 95
¨Flexural Rigidity ASTM D 1388 mg-cm 3,930,000 -
¨Aperture Stability COE Method mm-N/deg 1432 -
Dimensions
¨Aperture Dimensions - mm 34 36
¨Minimum Rib Thickness ASTM D 1777 mm 2 1.5
¨Roll Width - m 3.95 -
¨Roll Length - m 50 -
¨Roll Weight - kg 66 -

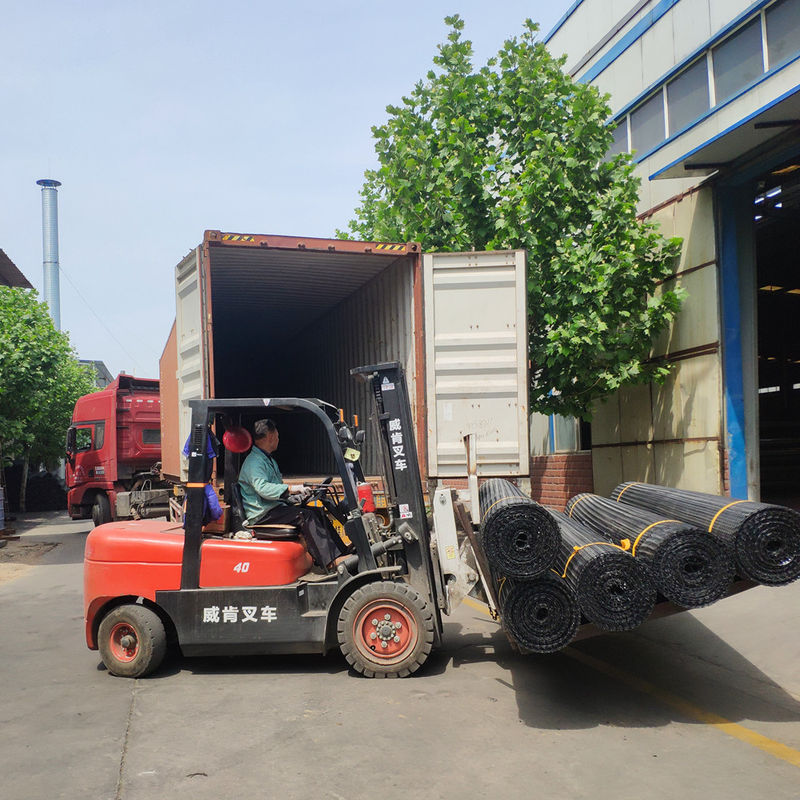

Packing & Delivery

20KnX20Kn: width 3.95m * length 50 m per roll.220 rolls,43450 M2/40'HQ
30KnX30Kn: width 3.95 m * l ength 50 m per roll.144 rolls,28440 M2/40'HQ
40KnX40Kn: width 3.95m * length 50 m per roll.90 rolls, 17775 M2/40'HQ

Stretched PP Extruded Geogrid Reinforcement For Roads ASTM D 6637 30 / 30kn

Delivery Time: 3-15 days
Sample Time: 1-3 days
Payment Methord: T/T, L/C, Western Union or as per negotiate


Specification of 15-15 KN, 20-20 KN, 25-25 KN, 30-30 KN, 40-40 KN, 45-45 KN, 50-50 KN Polypropylene Geogrid



No. Index Properties Test Method 15/15 20/20 25/25 30/30 40/40 45/45 50/50
1 Polymer _ PP
2 Minimum Carbon Black % ASTM D4218 2
3 Tensile Strength @ 2% Strain MD kN/m ASTM D6637 5.0 7.0 9.0 10.5 14 16 17.5
Tensile Strength @ 2% Strain TD kN/m 5.0 7.0 9.0 10.5 14 16 17.5
4 Tensile Strength @ 5% Strain MD kN/m 7.0 14 17 21 28 32 35
Tensile Strength @ 5% Strain TD kN/m 7.0 14 17 21 28 32 35
5 Ultimate Tensile Strength MD kN/m 15 20 25 30 40 45 50
Ultimate Tensile Strength TD kN/m 15 20 25 30 40 45 50
6 Strain @ Ultimate Strength %   13
7 Junction Efficiency % GRI GG2 95
8 Flexural Rigidity mg-cm ASTM D7748 690, 000 1,090,000 _ 3,930,000 11,480,00 _ _
9 Aperture Stability m-N/deg COE Method 0.64 0.7 _ 1.43 2.1 _ _
  Dimensions
10 Aperture Dimensions MD mm _ 36 36 34 34 34 34 34
Aperture Dimensions TD mm _ 38 38 36 36 35 34 36

11 Minimum Rib Thickness MD mm ASTM D1777 0.9 1.3 1.8 2.1 2.6 3.2 3
Minimum Rib Thickness TD mm 0.7 1 1.5 1.8 1.6 1.6 2
12 Roll Width m _ 3.95 3.95 3.95 3.95 3.95 3.95 3.95
13 Roll Length m _ 50 50 50 50 50 50 50
14 Roll Weight Kg _ 39 48 58 68 96 110 128



Certificate
