Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete

China ANHUI ELITE INDUSTRIAL CO.,LTD certification
China ANHUI ELITE INDUSTRIAL CO.,LTD certification
I'm Online Chat Now

Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete

Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete
Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete

Large Image :  Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete

Product Details:

Place of Origin: Anhui
Brand Name: ELITE-INDUE
Certification: CE ISO
Model Number: EltFiber-PPMF

Payment & Shipping Terms:

Minimum Order Quantity: 1000kgs
Price: Negotiation
Packaging Details: 1kg/PE film bag, 20kg/Plastic Woven bag,9000kgs/20'gp
Delivery Time: Within 15days after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000TON PER YEARS
Detailed Product Description
Material: Virgin Homopolymer Polypropylene Length: 1/2" Mm
Crack Elongation:: 20+/-5% Fiber Diameter: 20-30um
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 450 Min. Acid &Alkali Resistance: Strong
Shape: Multifilament Application: Fiber Reinforced Concrete
High Light:

fibrillated polypropylene fibers

,

synthetic polymer fibers

                 Micro Synthetic Fibre Virgin Homopolymer Polypropylene Fiber Multifilament Monofilament 1/2"mm



1, Description:



Multifilament Polypropylene Fiber is easy to finish,fully oriented,100% Virgin Homo-polymer Polypropylene Multi-filament Fibrous Reinforcement.

Our Monofilament Polypropylene Fiber offers long term durability, and functions as a plastic shrinkage reinforcement intended to reduce

the formation of shrinkage cracks prior to the initial set.This Monofilament Fiber is non-corrosive, chemically inert, and 100% Alkali Proof.



Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete 0


2, PP Fiber Monofilament Functions And Advantages

Functions
Advantages

Increase freezing & thawing resistance
Cost effective
Improve tendons protection
Replaces anti crack mesh reinforcement
Resist to shrink & crack
Decreases construction time and labor
Increase seepage resistance
Inhibits intrinsic cracking in concrete
Increase friction resistance
Do not rust
Replace steel net (using in plastering)
Disperses uniformly throughout the mix
Prevent mortar split and crackle expansion
Explosive spall control



3, Applications:



A). suit for the waterproof layer, floor, inner & outer wall of industrial and civil construction.

B). Increase cracking resistance on the surface of industrial workshop, warehouse and parking lot.

C). Increase cracking & seepage resistance of the ground in natatorium, swimming pool, pond and ditch.

D). Suit for any mortar projects and common concrete projects.

E). Highway, bridge and other roads.



Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete 1



4, Applying Instruction:



A). Dosage: for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement mortar Is enough,

                    and for increasing reinforce and seepage resist application 1.8kg/m3 is enough.



B). Stirring requirement: The proportion of cement, sand and aggregate is no need to be changed.

                                        Put cement, aggregate, additive and fiber together, then stir after adding enough water

                                        and time for stirring can be prolonged for 2~3 minutes in order to make the compound mix completely.



      Also it can be mixed with cement and other aggregates in advance, stirring by adding water at worksite before construction.



5, Brief specification:



Compliance

ASTM C1116, Type III

BS EN 14889 - 2



1), Normal Type MicroFiber Monofilament PPMF-A





Raw Material

Polypropylene Crack Elongation 20+/-5%



Fiber Type

Monofilament PPMF-A Fiber Diameter 20-30um



Melting Point ( C Deg.)

160 - 170 Density (g/cm3)  0.91+/-0.01



Acid &Alkali Resistance

Strong Tensile Strength (MPa) 450 min.



Length

Times of 4mm or 6mm Water absorbency  NO
Normal Length



4mm, 6mm, 8mm, 12mm,18mm, 24mm, 30mm etc...

(times of 4mm or 6mm with 1mm more or less )



2),Special Type MicroFiber Monofilament



A, MicroFiber Monofilament PPMF-B: High Tensile Strength -----------600MPa Min

B, MicroFiber Monofilament PPMF-C: Superfine---------------------------20+/-2um Dia

C, MicroFiber Monofilament PPMF-D: High dispersion------------------Special Surface-Treating

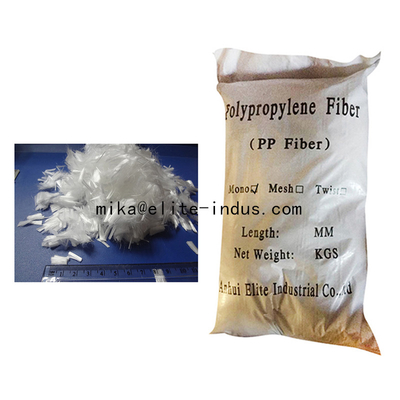

6, Packing:

Multifilament Monofilament Concrete Reinforcement Fiber 1/2"Mm Fiber Reinforced Concrete 2



PP Fiber Shape

Inner Packing

(PE film bag)

Outer Packing

(Plastic Woven bag)

20’gp 40’HQ
Monofilament 0.6/0.9/1.0 kg 18/20kg 10000kg 20000kg
Fibrillated 0.6/0.9/1.0 kg 12/18kg 5500kg 12000kg
Twist/Hybrid 0.5/1.0kg 10kg 5500kg 12000kg
Wave 1.0kg 10kg 3000kg 7500kg


Inner Packing

(water Soluble paper bag)

Outer Packing

(Carton)


Monofilament 0.6/0.9/1.0 kg 18/20kg 8000kg 16000kg
Fibrillated 0.6/1.0 kg 12kg 4800kg 9000kg
Twist/Hybrid 0.5/1.0kg 10kg 4000kg 8500kg
