500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer

Good quality Soluble Dietary Fiber for sales
Good quality Soluble Dietary Fiber for sales
I'm Online Chat Now

500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer

China 500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer supplier

Large Image :  500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer

Product Details:

Place of Origin: Anhui
Brand Name: ELITE-INDUE
Certification: CE ISO
Model Number: Elt-Twist

Payment & Shipping Terms:

Minimum Order Quantity: 1000kgs
Price: FOB Qingdao Port,China
Packaging Details: 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12000KG/20'gp
Delivery Time: Within 15days after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10000TON PER YEARS
Contact Now
Detailed Product Description
Material: Virgin Polypropylene Copolymer Length: Normal Is 48mm, 54mm Or As Per Your Request.
Elastic Modulas: Min 3500MPa Equivalent Diameter: 0.3+/-0.03mm
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 480 Min. Color: Gray/black/white
Tensile Strength: 500 To 800MPA

                 Macro Synthetic Fiber TWIST Type Tensile Strength 500 to 800MPA



1, Description:

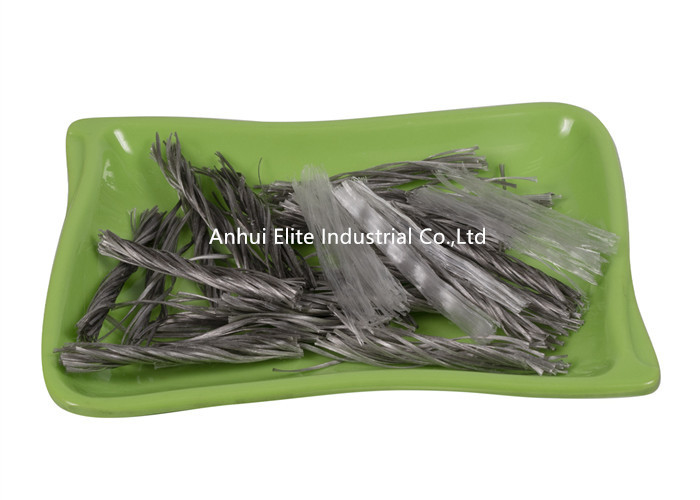

ELT-TWIST is a 100% virgin blended copolymer synthetic Structural macro-fiber successfully used as an alternate to steel fibers, welded wire

mesh and conventional reinforcing bars in a wide variety of secondary reinforcement applications.

ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.

A twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.



500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer

                       PMFT-A: 100% Twist Fiber                                             PMFT-B: Hybrid(PP Twist Fiber Mix with PP Fibrillated Fiber)



2, Production Process



500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer



3, Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
PP
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>3500
Resistance to acid & alkali
strong



4, Packing:



500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer



5, Applying Instruction:



1, Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.


2, Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm


3, Matching Ratio:


Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.



5, Mixing process:

Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add

cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be

properly prolonged to make fiber completely Mixed.



6, Shaping & Maintenance


There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



6, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts



7, Related Product:



500 - 800MPA Tensile Strength Macro Fiber Virgin Polypropylene Copolymer
