Twisted Bundle 38mm Polypropylene Fibre Cement Concrete Admixture

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, T/T, Western Union Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-PMFT

Detail Information

Material: Polypropylene Fibre Length: 38mm/48mm/54mm
Equivalent Diameter: 0.3+/-0.03mm Melting Point(C Deg.): 160 - 170
Density(g/cm3): 0.91+/-0.01 Tensile Strength(MPa): 550 Min.
Acid &Alkali Resistance: Strong Application: Concrete Admixture
High Light:

Polypropylene Fibre cement admixtures

,

Polypropylene Fibers Concrete Admixture

,

38mm Polypropylene cement admixtures

Product Description

                Concrete Admixture Macro Synthetic Reinforced Polypropylene Fibre Twisted Bundle 38mm 48mm 54mm



1, Description:



ELT-TWIST is sort of Macro synthetic reinforcing fiber,which is specifically engineered for secondary reinforcement use and provide high

performing reinforcement system for concrete. It's made of 100% virgin polypropylene, has obvious advantage in reducing plastic shrinkage,

increasing fatigue resistance and conrete toughness, and improving impact strength.



Elt-TWIST Macro Synthetic Fibre Polypropylene Hybrid is a kind of filament bunch assembled together by many round or flat yarns.

When used in concrete, Macro Synthetic Fibre Polypropylene Hybrid will be dispersed into multiple filament, then play a role in enhancing

the toughness of concrete and prevent the crack of concrete.



ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.

B twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.

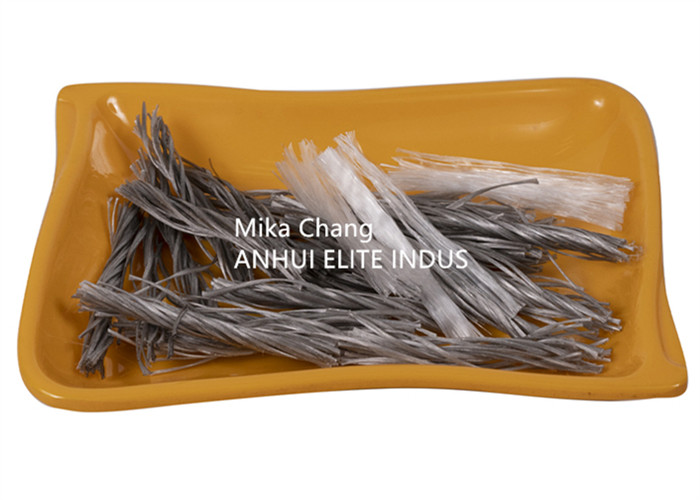

Twisted Bundle 38mm Polypropylene Fibre Cement Concrete Admixture 0

                       PMFT-A: 100% Twist Fiber                                             PMFT-B: Hybrid(PP Twist Fiber Mix with PP Fibrillated Fiber)

Functions

· Increases impact, shatter and abrasion resistance of concrete

· Reduces segregation, plastic settlement, and shrinkage cracking of concrete

· Provides three-dimensional reinforcement against macro-cracking

· Increases overall durability, fatigue resistance and flexural toughness

· Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control

· Easily added to concrete mixture at any time prior to placement



2, Production Process



Twisted Bundle 38mm Polypropylene Fibre Cement Concrete Admixture 1



3,Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
Virgin Copolymer/Polypropylene
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>550 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>5500
Resistance to acid & alkali
strong



4, Packing:



Twisted Bundle 38mm Polypropylene Fibre Cement Concrete Admixture 2



5, Applying Instruction:



1), Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.



2), Matching Ratio:

Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

3), Mixer Adoption: Double-axle horizontal compelling mixer is priority.



4), Mixing process:

Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add

cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be

properly prolonged to make fiber completely Mixed.



5),Directions for Use

ELT-TWIST fibers can be added to the concrete mixture at any time prior to placement of the concrete. It is generally recommended to

add any fiber material at the ready-mix concrete plant during batching. Fibers must be mixed with concrete for a minimum of three to five

minutes at maximum mixing speed, depending on the mixer type, to ensure complete dispersion and uniformity.



6 Application:

  • Industrial and residential floors
  • Whitetoppings, bridge decks and pavements
  • Thin walled pre-cast (septic tanks, vaults, walls, etc.)
  • Mass concrete

Twisted Bundle 38mm Polypropylene Fibre Cement Concrete Admixture 3



7, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





Twisted Bundle 38mm Polypropylene Fibre Cement Concrete Admixture 4

Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
