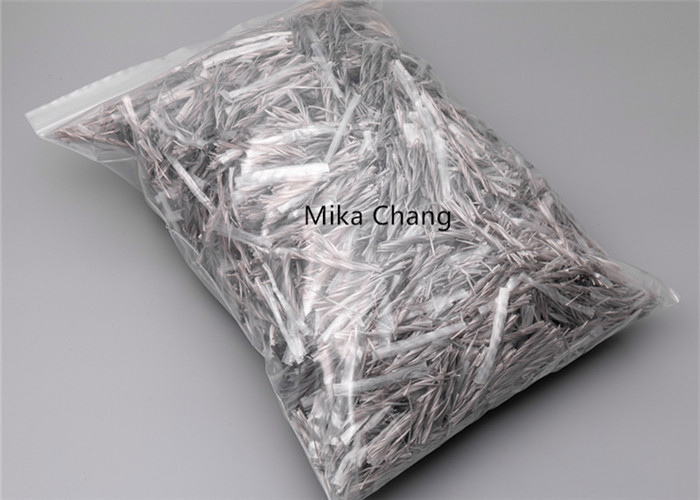

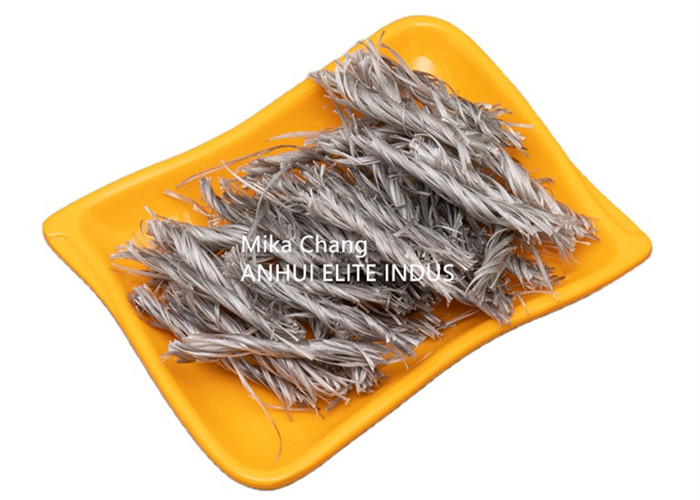

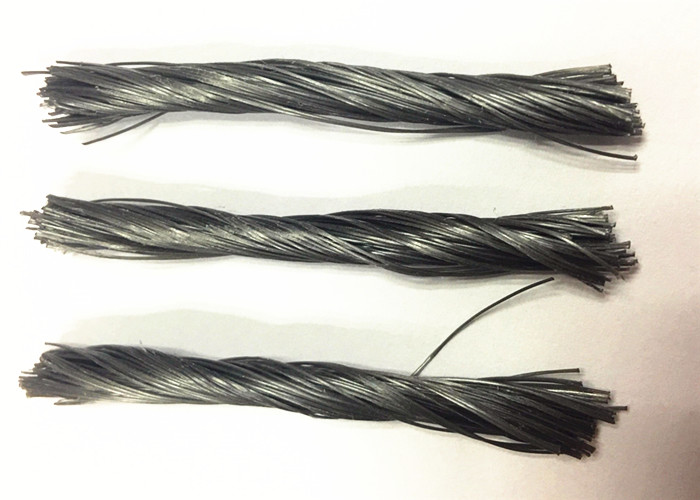

54mm Length PP Twist Bunchy Concrete Reinforcement Fiber

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-PMFT

Detail Information

Fiber Length: 54mm Elastic Modulas: Min 4850MPa
Equivalent Diameter: 0.3mm Melting Point(C Deg.): 160-170
Density(g/cm3): 0.91 Tensile Strength(MPa): 595min.
Application: Civil Tunnels Similar To: FORTA FERRO
Shape: Twist Bunchy
High Light:

PP Twist Concrete Reinforcement Fiber

,

Bunchy PP Concrete Reinforcement Fiber

,

54mm pp concrete fiber

Product Description

              Macro Synthetic Fibre Polypropylene PP Twist Bunchy Fiber Forta Ferro Macrofiber



1, Description:



ELT-TWIST is a structural synthetic macro-fiber designed to improve the durability and mechanical properties of concrete and sprayed concrete.

ELT-Twist macro fiber consists of a monofilament made of a special mix of polymers and a polypropylene fibrillated fiber which reduces or completely

eliminates plastic shrinkage.

ELT-TWIST Macro Synthetic Fiber of Twist Form is a patented polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers,

welded wire mesh and conventional reinforcing bars in a wide variety of applications.Our Macro Synthetic Fiber comply with ISO CE and suitable for

Concrete and Shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements.

Concrete with our Macro fiber will have three-dimensional reinforcing with enhanced flexural toughness, impact and abrasion resistance and will also

help mitigate the formation of plastic shrinkage cracking in concrete.
Dosage rates will vary depending upon the reinforcing requirements and can range from 2.7 kg/m³ to 5.5 kg/m³.

54mm Length PP Twist Bunchy Concrete Reinforcement Fiber 0

2,Advantage:

  • Saves time from handling the steel mesh on the site.
  • Significantly reduces application times and direct labor expenses.
  • Due to being non-corrosive significantly reduces slab thickness.
  • Prevention of corrosion increases service life and reduces maintenance costs.
  • Eliminates labor related risks and removes potential hazards from the work site related to steel mesh and steel fibers.
  • Does not damage construction equipoment as steel fiber.
  • Reduces costs of storage and due to not having a shelf life can be stored for long-term.
  • Overall cost is lower than steel mesh and steel fibers.

3, Production Process



54mm Length PP Twist Bunchy Concrete Reinforcement Fiber 1



4,Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
PP
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>3500
Resistance to acid & alkali
strong

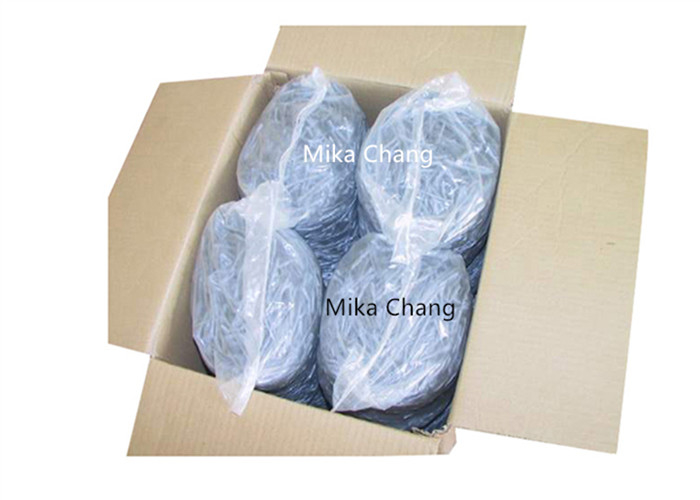

5, Packing:

  • A,1kgs/PE film bag,10PE film bags/10Kg/Plastic Woven Bag.5500kgs/20'gp,11000kgs/40'gp,12000kgs/40'HQ
  • B,1kgs/PE film bag, 10PE film bags/carton, 4000kgs/20'gp,8000kgs/40'gp, 9300kgs/40HQ
  • C,0.5kgs/Water-soluble paper bag, 20 paper bag bags/carton, 4000kgs/20'gp,8000kgs/40'gp, 9300kgs/40HQ
  • D,other packing can as per your request

Anti Cracking Concrete Reinforcement Fiber Durable Plastic Fiber For Concrete 0



6, Applying Instruction:



1, Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.


2, Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm


3, Matching Ratio:


Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.



5, Mixing process:

Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add

cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be

properly prolonged to make fiber completely Mixed.



6, Shaping & Maintenance


There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.



7 Application:

  • Field Concrete and Industrial Floors
  • Coastal Structures & Ports
  • Mining
  • Tunnel Applications
  • Residential Buildings
  • Parking Lot Flooring
  • Pre-cast and Prefabricated Structures
  • Water Structures
  • Concrete Pavements
  • Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
  • Thin walled pre-cast (septic tanks, vaults, walls, etc.)
  • Shotcrete for tunnel linings, pool construction and slope stabilization
  • Pavements and white-toppings



Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



8, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





54mm Length PP Twist Bunchy Concrete Reinforcement Fiber 4





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
