Golden Mine Tunnel Support Structural Macro Synthetic Fibrillated Polypropylene Fibers

Minimum Order Quantity : 1000kgs Price : FOB Qingdao Port,China
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'HQ Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: Elt-Twist

Detail Information

Length: 54mm Or As Request Elastic Modulas: Min 4550MPa
Equivalent Diameter: 0.3+/-0.04mm Melting Point(C Deg.): 160 - 170
Density(g/cm3): 0.91+/-0.01 Tensile Strength(MPa): 550-680Mpa
Similar Brand: FORTA FERRO Similar Type: TUF-STRAND SF
Type: Structural Macro Application: Mine/Tunnel
High Light:

Synthetic fibrillated polypropylene fibers

,

Macro fibrillated polypropylene fibers

,

Tunnel Support Macro Synthetic fibers

Product Description

                                   Golden Mine Tunnel Support Used Structural Macro Synthetic PP Fiber Shotcrete Fibre

1, Description:

ELT-TWIST This newer class of fibers has emerged over the last 15 years as a suitable alternative to steel fibers when dosed properly.

Typical materials include polypropylene and other polymer blends with the same physical characteristics (e.g., length, shape) as steel fibers.

These fibers can be dosed from 3 to 20 lbs/yd (1.8 to 12 kg/m3).

ELT-TWIST is a 100% virgin blended copolymer synthetic Structural macro-fiber successfully used as an alternate to steel fibers, welded wire mesh

and conventional reinforcing bars in a wide variety of secondary reinforcement applications.

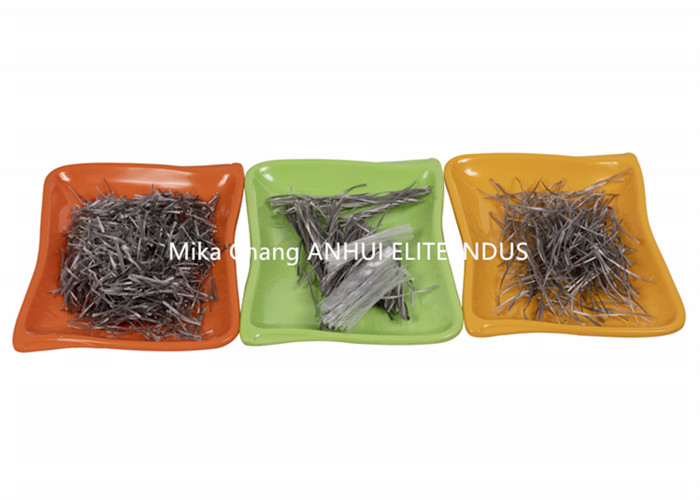

Golden Mine Tunnel Support Structural Macro Synthetic Fibrillated Polypropylene Fibers 0


Benefits and characteristics

  • It has the common advantages of steel fiber and synthetic fiber.
  • Excellent dispersion
  • It is suitable for both dry spray and wet spray process.
  • Improving toughness and durability of concrete
  • Improve the strength of concrete and prevent rebound
  • Alkali and acid resistance, no rust, not easy to corrosion
  • Lower dosage and lower use cost
  • The surface does not need to be trimmed, and the operation is safe and easy.

2, Production Process

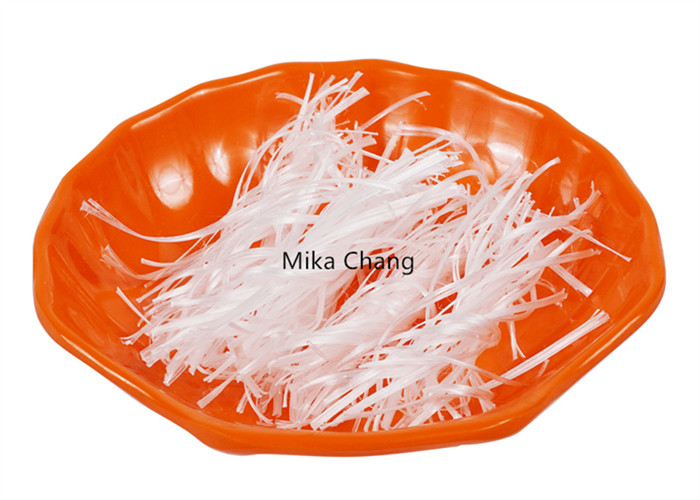

Golden Mine Tunnel Support Structural Macro Synthetic Fibrillated Polypropylene Fibers 1



3, Specification:

Density(g/cm 3 ) 0.91 +/- 0.01 Equivalent Dia(mm) 0.3±0.05
Shape twist break tensile Ratio(%) 8-15
Crack Ratio (%) 20+/-5 Melting point ( C. Deg) 160-170
Tensile Strength (Mpa) 500 to 800 Water Absorption Negligible
Elastic Modulus (Mpa) >3500 Resistance to acid & alkali Excellent
Material Virgin Copolymer/Polypropylene
Length(mm) 38/48 /54 or as per your request
Dosage rates will vary depending upon the reinforcing requirements and can range from 2kg/m³ to 5 kg/m³

4, Packing:

Shape Inner Packing(PE Film Bag) Outer Packing(Plastic Woven Bag) 20’gp 40’HQ
Twist 0.5/1.0kg 10kg 5500kg 12000kg
Inner Packing(Water Soluble Paper Bag) Outer Packing (Carton)
0.5/1.0kg 10kg 4000kg 9000kg
Other Packing Can As Per Your Request

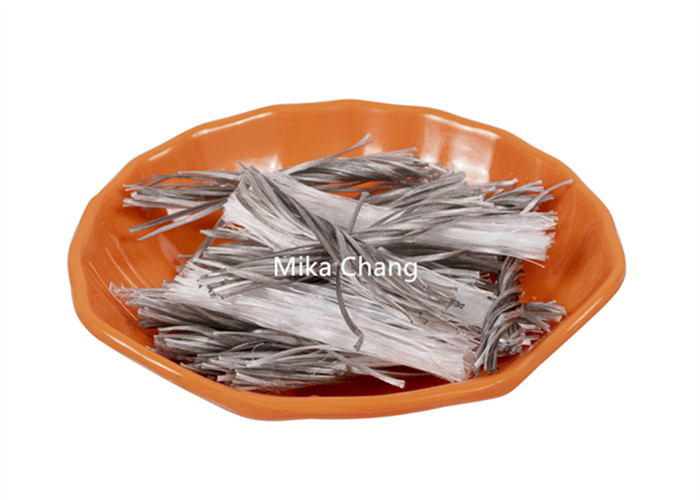

Golden Mine Tunnel Support Structural Macro Synthetic Fibrillated Polypropylene Fibers 2



5,Application:

  • Slab on grade.
  • Elevated slabs.
  • Parking areas.
  • Stamped concrete.
  • Pre-cast concrete.
  • Water tanks.
  • Pavements.
  • Shotcrete.
  • Renders.
  • Composite decks
  • Upper concrete layer - parking decks etc.
  • Concrete products
  • Hall floors
  • Agricultural construction
  • l Operational areas

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



6, CERTIFICATE:

Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.

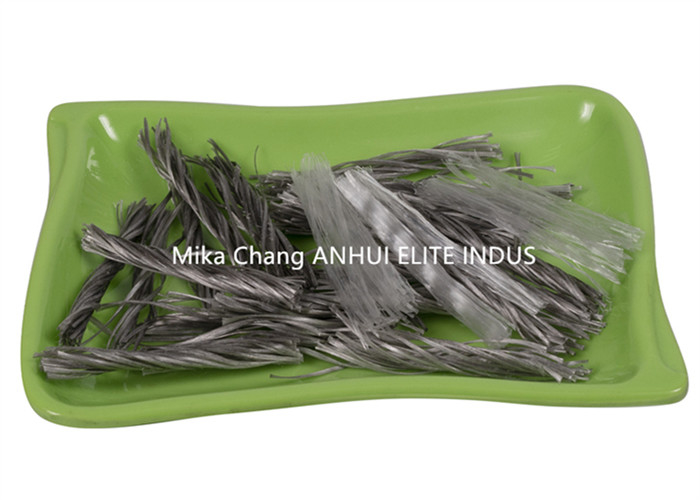

Golden Mine Tunnel Support Structural Macro Synthetic Fibrillated Polypropylene Fibers 4



7, Related Product:

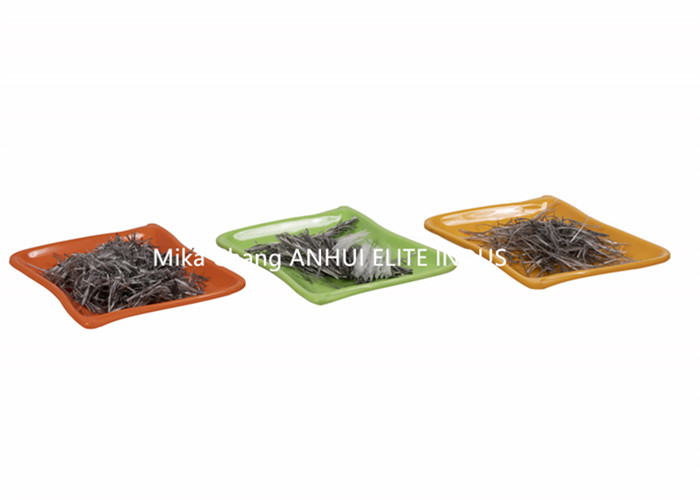

Golden Mine Tunnel Support Structural Macro Synthetic Fibrillated Polypropylene Fibers 5
