High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction

High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction

    • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction
    • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction
    • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction
    • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction
    • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction
    • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction
    • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction
  • High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction

    Product Details:

    Place of Origin: China
    Brand Name: Elite-indus
    Certification: ISO, CE, FDA
    Model Number: PMFC-0024

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 kgs
    Price: Negotiation
    Packaging Details: 1.0 kg/ PE bag, 10 kgs/plastic woven bag
    Delivery Time: 3-15 days
    Payment Terms: T/T, Western Union, L/C, D/P
    Supply Ability: 600 tons per month
    Contact Now
    Detailed Product Description
    Product Name: Homogeneity And Good Dispersion Structural Fibers For High Performence Concrete Fiber Type: Curved Wave/Undee
    Tensile Strength: ≥450Mpa Acid &Alkali Resistance: Strong
    Application: Concrete Free Sample: Yes
    Delivery Time: 3-15 Days Color: White, Black, Gray

    Homogeneity And Good Dispersion Structural Fibers For

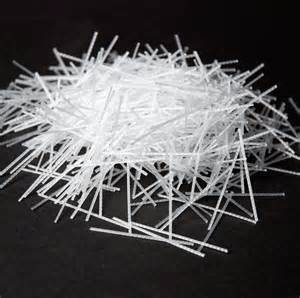

    Elite Macro Synthetic Fiber of Wave Form is a patented polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers, welded wire mesh and conventional reinforcing bars in a wide variety of applications. Our Macro Synthetic Fiber comply with ISO CE and suitable for Concrete and Shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements.

    1. SPECIFICATIONS:

    Raw Material
    Virgin grade copolymer
    Tensile Strength(MPa):
    480 min.
    Water Absorbency:
    No
    Density(g/cm3) :
    0.91+/-0.01
    Melting Point(C Deg.) :
    160 - 170
    Equivalent Dia(mm):
    0.8-1.2
    Elastic Modulas(Mpa):
    3500 min
    Crack Ratio:
    15+/-5%
    Length:
    30mm, 48mm, 54mm or as per request



    2. Packing & Delivery

    Packing : 1.0kg per PE bag; 10 kgs/plastic woven bag;

                     total 3100 kgs/1x20`gp; 7500 kgs/1x40`hq



    Delivery Time
    3-15 days after deposit (we always keep inventory)
    Sample Time
    1-3 days after confirmation
    Production Time
    7-15days
    Payment Methods
    T/T, L/C, Western Union or as per negotiate



    High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction



    3. Directions For Use



    1, Ration design of the fibre concrete:
    Generally the recommended amount to add to the concrete is more than 2.0-3.0 kg/m³ ( volume ratio is 0.3% ), reinforcement adding amount is 5.5kg/m³ , Compared with adding 47kg of steel fibre, 5.4kg macro synthetic fibre has the same volume ratio to the concrete.
    2, Matching Ratio:
    Usually, it is no need to Change the matching ratio of the concrete.
    3, Mixer Adoption: Double-axle horizontal compelling mixer is priority.
    4, Mixing process:
    Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes, fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely Mixed.
    5, Shaping & Maintenance
    There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same as the normal concrete.



    4. Applications:

    •Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
    •Thin walled pre-cast (septic tanks, vaults, walls, etc.)
    •Shotcrete for tunnel linings, pool construction and slope stabilization
    •Pavements and white-toppings

    High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction

    5. Features & Benefits

    Economy, Durable, High Tensile Strength

    Compared with steel fiber, our fiber has the advantages of anti-corrosion and wear-resistant reducing 50% cost with same volume to steel fiber.
    1. Equivalent strengths to WWM and rebar provided by engineering calculations;
    2. Controls and mitigates plastic shrinkage cracking and reduces segregation and bleed-water;
    3. Provides three-dimensional reinforcement against micro and macro-cracking;
    4. Reduces equipment wear, fiber rebound and increases build-up thickness compared to steel fibers for shotcrete applications;
    5. Increases overall durability, fatigue resistance and flexural toughness;
    6. Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control;
    7. Easily added to concrete mixture at any time prior to placement;
    8. Tested in accordance with ASTM C 1116, EN14889-2.

    6. Related Products

    Including Macro Synthetic Fiber Wave, we we also produce:

    1. Polypropylene Micro fiber monofilament, fibrillated

    2. Macro synthetic fiber Twist, Wave, Hybrid

    3. Polyester (PET) Fiber for Bitumen concrete

    High Performance Concrete Reinforcement Fiber / Structural Fibers For Civil Construction



    Company Brief Introduction



    ELITE was established in 2007, has become one of the leading and professional suppliers of many kinds of Concrete Rei-nforcement Fibers in the world market.

    ELITE fibers are made by 100% virgin PP materials with advanced equipment of yarn and cutting. We have one full set of precise testing instrument and quality inspection team, technology research & Development team.



    Sales Team

    Elite own a team with 10+ years experience.

    We know well of Chinese Concrete reinforcement fibers on technical inspection, marketing, transportation



    Exhibition

    We have been to many international exhibitions all over the world. Hope to chat with all our customers face to face.

    Recently exhibition information pls refer to our website.
