White Polypropylene Granular Concrete Reinforcement Fiber Monofilament Form

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 20kg/Plastic Woven bag,9000kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-PPMF

Detail Information

Material: Polypropylene Granular Length: Times Of 4mm/5mm/6mm
Crack Elongation:: 20+/-5% Fiber Diameter: 20-30um
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 450 Min. Form: Monofilament
Application: Fiber Reinforced Concrete Color: White
Type: Microfiber HS Code: 5503400000
High Light:

fibrillated polypropylene fibers

,

synthetic polymer fibers

Product Description

Polypropylene PP Micro Synthetic Fiber Monofilament For Fiber Reinforced Concrete and Shotcrete

1, Description:

Polypropylene PP Micro Synthetic Fiber is a monofilament polypropylene micro-fiber for concrete reinforcement that complies with

ASTM C 1116, Standard Specification for Fiber Reinforced Concrete and Shotcrete, and is specifically designed to help mitigate the

formation of plastic shrinkage cracking in concrete. Typically used at a dosage rate of 0.6 kg/m³ to 1.8 kg/m³, Elt micro-fibers have been

shown to greatly reduce plastic shrinkage cracking when compared to plain concrete.

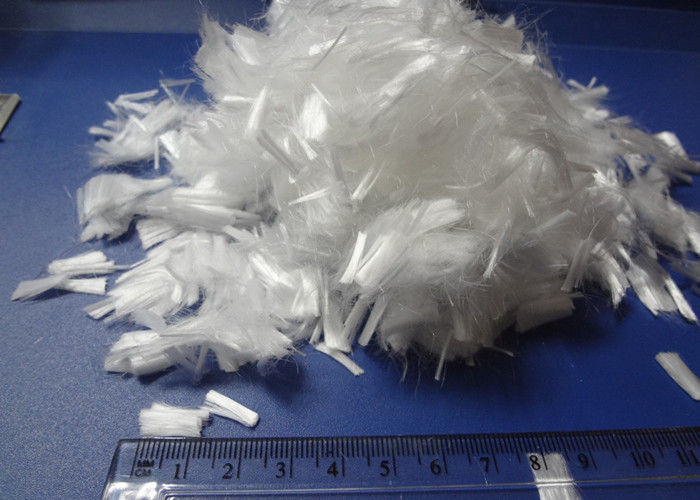

White Polypropylene Granular Concrete Reinforcement Fiber Monofilament Form 0

2, Functions And Advantages
  • Controls and mitigates plastic shrinkage cracking
  • Reduces segregation, plastic settlement and bleed-water
  • Provides three-dimensional reinforcement against micro-cracking
  • Increases surface durability, impact and abrasion resistance
  • Reduction of in-place cost versus wire mesh for non-structural temperature / shrinkage crack control
  • Easily added to concrete mixture at any time prior to placement


3, Applications:

  • Slabs on grade, sidewalks, driveways, curb work, overlays and toppings
  • Footings, foundations, walls and tank applications
  • Stucco applications, pre-cast concrete and pre-stressed beams
  • Shotcrete, slope paving and composite steel deck construction

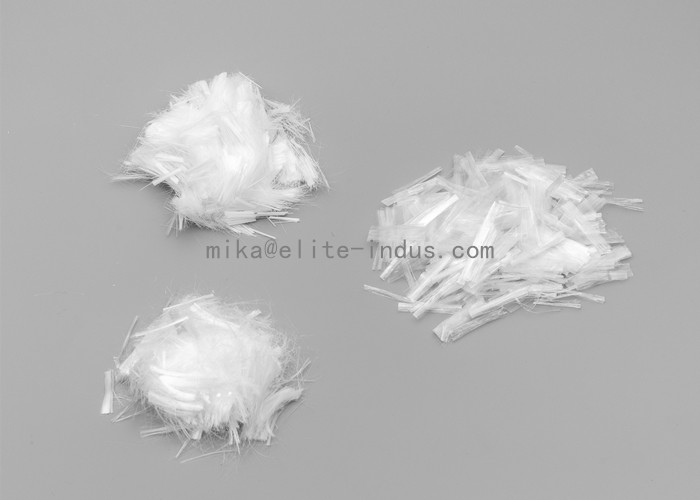

White Polypropylene Granular Concrete Reinforcement Fiber Monofilament Form 1

4, Applying Instruction:

A). Dosage: for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement mortar Is enough, and for increasing reinforce and

seepage resist application 1.8kg/m3 is enough.

B). Stirring requirement: The proportion of cement, sand and aggregate is no need to be changed. Put cement, aggregate, additive

and fiber together, then stir after adding enough water and time for stirring can be prolonged for 2~3 minutes in order to make the

compound mix completely. Also it can be mixed with cement and other aggregates in advance, stirring by adding water at worksite

before construction.

5, Brief specification:

Compliance

ASTM C1116, Type III

BS EN 14889 - 2

1), Normal Type MicroFiber Monofilament PPMF-A

Raw Material : Polypropylene Crack Elongation: 20+/-5%
Fiber Type : Monofilament PPMF-A Fiber Diameter: 20-30um
Melting Point(C Deg.) : 160 - 170 Density(g/cm3) : 0.91+/-0.01
Acid &Alkali Resistance : Strong Tensile Strength(MPa): 450 min.
Length: Times of 4mm or 6mm Water absorbency : NO
Normal Length

4mm, 6mm, 8mm, 12mm,18mm, 24mm, 30mm etc...

(times of 4mm or 6mm with 1mm more or less )

2),Special Type MicroFiber Monofilament

A,MicroFiber Monofilament PPMF-B:High Tensile Strength -----------600MPa Min

B,MicroFiber Monofilament PPMF-C:Superfine---------------------------20+/-2um Dia

C,MicroFiber Monofilament PPMF-D:High dispersion------------------Special Surface-Treating

6, Packing:

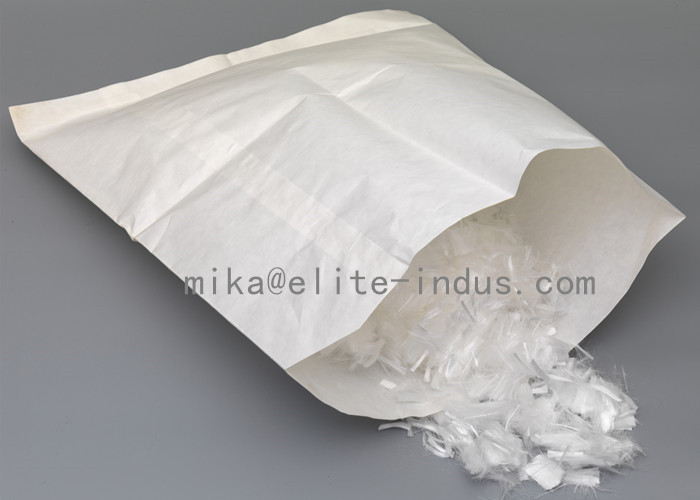

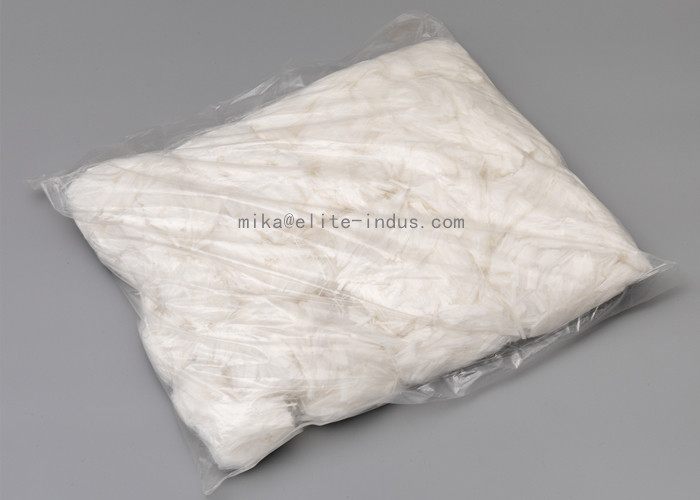

White Polypropylene Granular Concrete Reinforcement Fiber Monofilament Form 2

PP Fiber Shape

Inner Packing

(PE film bag)

Outer Packing

(Plastic Woven bag)

20’gp 40’HQ
Monofilament 0.6/0.9/1.0 kg 18/20kg 10000kg 20000kg
Fibrillated 0.6/0.9/1.0 kg 12/18kg 5500kg 12000kg
Twist/Hybrid 0.5/1.0kg 10kg 5500kg 12000kg
Wave 1.0kg 10kg 3000kg 7500kg


Inner Packing

(water Soluble paper bag)

Outer Packing

(Carton)


Monofilament 0.6/0.9/1.0 kg 18/20kg 8000kg 16000kg
Fibrillated 0.6/1.0 kg 12kg 4800kg 9000kg
Twist/Hybrid 0.5/1.0kg 10kg 4000kg 8500kg



7, Our Company:

Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.

Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.

Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.

White Polypropylene Granular Concrete Reinforcement Fiber Monofilament Form 3

Our Mainly Product and Production Capacity as below:

Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
