Polyester Fiberglass Plastic Geogrid Geocomposite Bonded For Asphalt Road

Minimum Order Quantity : 5000 sqm Price : USD0.6-1.35/Sqm
Packaging Details : 5.8 * 50 m/ roll Delivery Time : 10-15 working days
Payment Terms : , L/C, T/T
Place of Origin: China Brand Name: ELITE
Model Number: PEG 25

Detail Information

Certification: CE /ISO 9001 Material: Fibeglass Or Polyester
Tensile Strength: 50 Kn To 200 KN Color: Black Or White
Roll Length: 50 M To 100 M Product Name: Geocomposite
Roll Width: 2-6 M
High Light:

geogrid retaining wall

,

hdpe uniaxial geogrid

Product Description

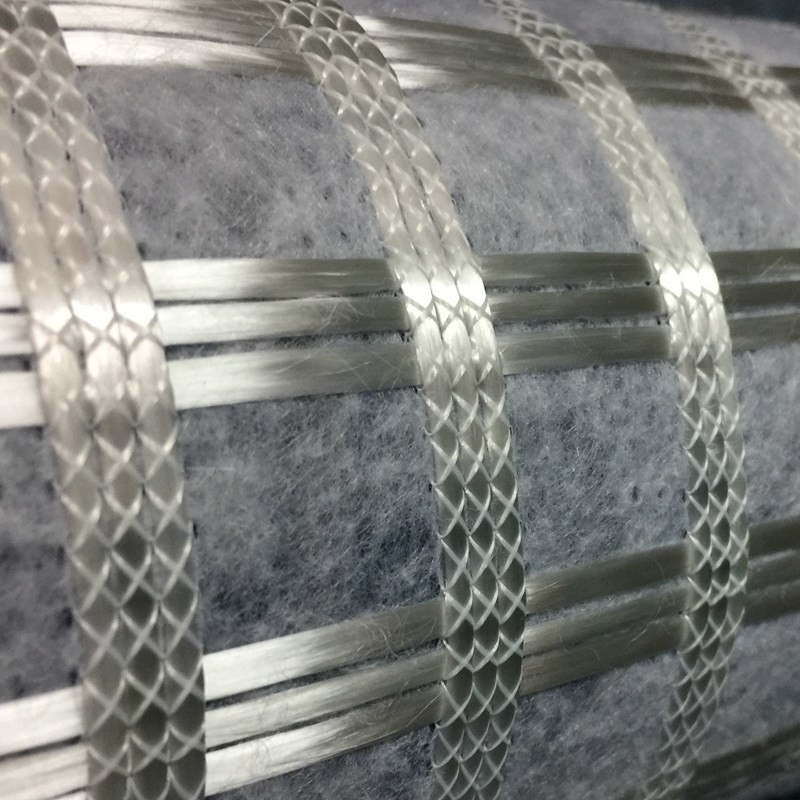

Reinforcing geotextile Polyester Fiberglass Geogrid bonded together for Asphalt Road



The fiberglass / polyester yarns with high tensile strength and low creep performs the function of reinforcement and the nonwoven performs the functions of separation, filtration and drainage.



Polyester / Fiberglass geogrid reinforcing geotextile is the geocomposite which comprises a high-strength, low-strain reinforcement grid with extra aperture size and a flexible nonwoven fabric bonded to the upper face.



Polyester / Fiberglass composite geogrids is the composite of Polyester / Fiberglass geogrid combined with nonwoven fabric or geotextile.

It installed between two asphalt layers, the main function is to reduce reflective and fatigue cracking, reduce rutting, extend pavement structural life.



Main Specification:



Tensile strength : 50x50KN, 60x60KN, 80x80KN, 100x100KN, 120x120KN, 200x200KN
Nonwoven fabric:  20g/ 30g/ 50g/ 80g/ 100g
Or as per your requirements.


Our services

1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English
3. Special discount and protection of sales are provided to our distributor.
4. Sample: we can send out sample for test in one week if the order quantity is big enough.

    But the shipment charges is usually paid by your side,the charges will be rebounded when we haveformal order.
5. Professional factory: We are manufacturer,specializing in producing all kinds of geogrids for more than 10 years,

    competitive with good quantity.
6. As an honest seller, we always use superior raw material, advanced machines,

    skilled technicians to ensure our products to be finished in high quality and stable feature.


Packing & Delivery

Different products have different packing quantity, for detailed info pls feel free to contact us

Delivery Time: 3-15 days
Sample Time: 1-3 days
Payment Methord: T/T, L/C, or as per negotiate



Polyester Fiberglass Plastic Geogrid Geocomposite Bonded For Asphalt Road 0



Specifications


Polyester geogrid stitched with Nonwoven geotextile:



Item No. Tensile Strength (MD CD) Elongation (%) Mesh Size (mm ) Width (m)
EPR 50 50 14 13 5-50 2-6
EPR 100 100 14 13 5-50 2-6
EPR 200 200 14 13 5-50 2-6
EPR 400 400 14 13 5-50 2-6
EPR 600 600 14 13 5-50 2-6
EPR 5050 50 50 13 5-50 2-6
EPR 100100 100 100 13 5-50 2-6
EPR 200200 200 200 13 5-50 2-6




Fiberglass geogrid stitched with Nonwoven geotextile:



  Item No. Tensile Strength (MD CD) Elongation (%) Mesh Size (mm ) Width (m)
EGR 5050 50 50 4 5-50 2-6
EGR 8080 80 80 4 5-50 2-6
EGR 100100 100 100 4 5-50 2-6






Application
1. New road and renovation project;
2. Asphalt overlay on the old cement concrete road surface;
3. Repair of asphalt pavements cracks and old asphalt road;
4. To be reinforced layer for airport runway, bridge, playground

Polyester Fiberglass Plastic Geogrid Geocomposite Bonded For Asphalt Road 1
