Multifilaments Micro Synthetic Fibrillated 18mm Concrete Reinforcement Fiber

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5400kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/P, T/T, Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-PPME

Detail Information

Material: PP Resin Length: 18mm 38mm 48mm 50mm 54mm Or As Request
Crack Elongation: 20%+/-5% Equivalent Diameter: 100+/-50 Um
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 450 Min. Acid &Alkali Resistance: Strong
Shape: Mesh/Network
High Light:

Micro Synthetic Concrete Reinforcement Fiber

,

18mm Concrete Reinforcement Fiber

,

multifilaments Fibrillated Fiber

Product Description

Concrete Fiber Micro Synthetic Fibre Mesh Fibrillated 18mm 20mm 48mm 54mm



1, Description:



EltFiber-PPME pp fibrillated Mesh fiber use virgin polypropylene as raw material,

The products appear net-like structure with many fiber monofilaments connected.



When the fiber is put into the concrete, the horizontal structure in fiber

monofilament can be destroyed in the course of stirring owing to friction and rubbing, and the fiber monofilament or net-like structure

will fully stretch, thus the concrete is reinforced by a great number of polypropylene fibers.

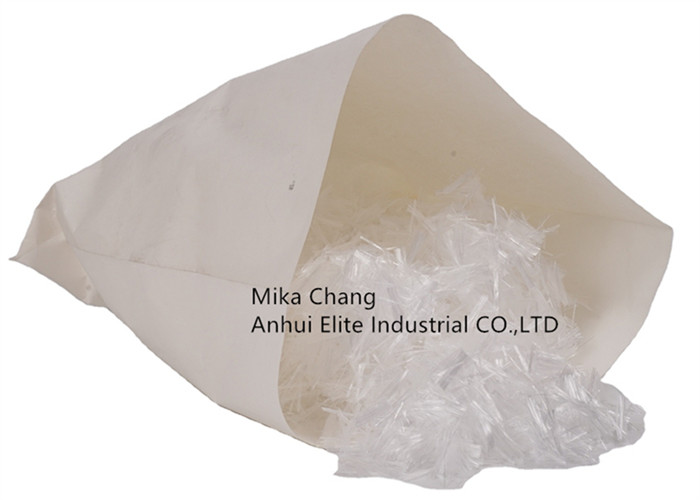

Multifilaments  Micro Synthetic Fibrillated 18mm Concrete Reinforcement Fiber 0



2, Typical physical properties

As a new type concrete-strengthening fiber, it becomes a new popular subject in the field of fiber concrete research and application

after glass fiber and steel fiber.Reinforced Functions to Concrete:



compared with steel fiber, full-dispersed polypropylene fiber has advantages in its thinness, large amount, non-water absorbency,

strong acid & alkali resistance and similar elastic modulus with that of concrete.



The reinforced functions run as follows



Increase seepage resistance

Prolong endurance

Improve steel protection



Increase cracking resistance

Increase fire resistance

Strengthen spurt & fatigue



Improve tensile, bending & folding strength

Improve plastic deformity

Strong acid & alkali resistance and good endurance



3, Specification:



Compliance with ASTM C1116, Type III and BS EN 14889 - 2


1), Normal Type MicroFiber Fibrillated PPME-A




Density (g/cm3)
0.91
Elastic Modulas (MPa)
>3500

Length (mm)
Times of 4mm/5mm/ 6mm
Equivalent Diameter um
100 +/- 50

Shape
Beam-like Net
Crack Elongation (%)
20+/-5

Acid & Alkali Resistance
Strong
Water-Absorbency
No

Tensile Strength (MPa)

>450
Melting Point (℃)
160 --170

Normal Length
12mm,15mm,18mm, 20mm,24mm, 30,36mm,40mm,48mm,50mm,54mm etc...



2) Special Type Microfiber Fibrillated PPME-B------------------Net Uniform,Smooth



4,Packing:

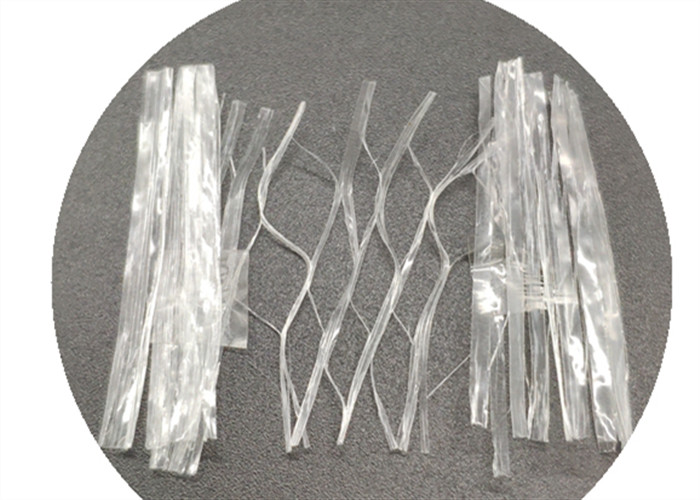

Multifilaments  Micro Synthetic Fibrillated 18mm Concrete Reinforcement Fiber 1



5, Application:



A). Projects like concrete road, bridge, airport road and factory floor which strictly require cracking resistance.

     The life span of these projects will be lengthened for 5-10 years.



B). The walls of tunnels, mines, roofs and reservoir projects with special construction.

     When using spray technology in concrete construction, the polypropylene fiber added into the concrete can effectively decrease

    the spray concrete's deformation rate of the walls less than 8% and that of the roof less than 12%,

    and also can reduce the friction. It can improve the constructing efficiency and working environment and popularize the spray technology.



C). River courses and dams, etc.

      The polypropylene fiber can improve concrete's resistance to crack and squirt and wear to lengthen projects' life span.



D). Military defense works, dock banks and piers, etc.

      This fiber can greatly strengthen the concrete's spurt resistance and heighten these projects' safety and lengthen their life span.

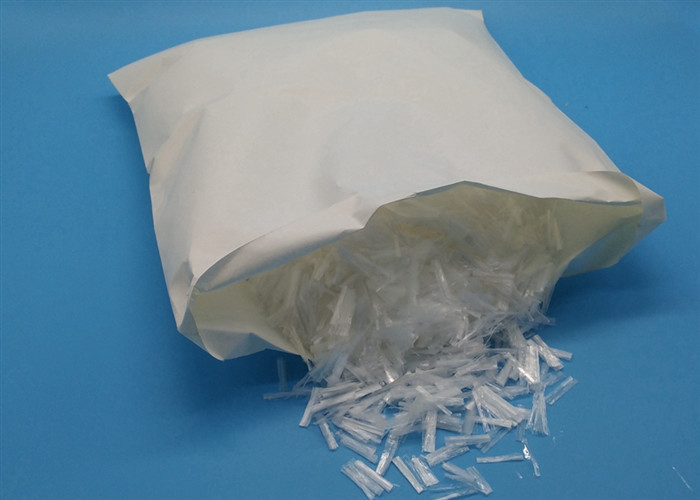

Multifilaments  Micro Synthetic Fibrillated 18mm Concrete Reinforcement Fiber 2



6, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.

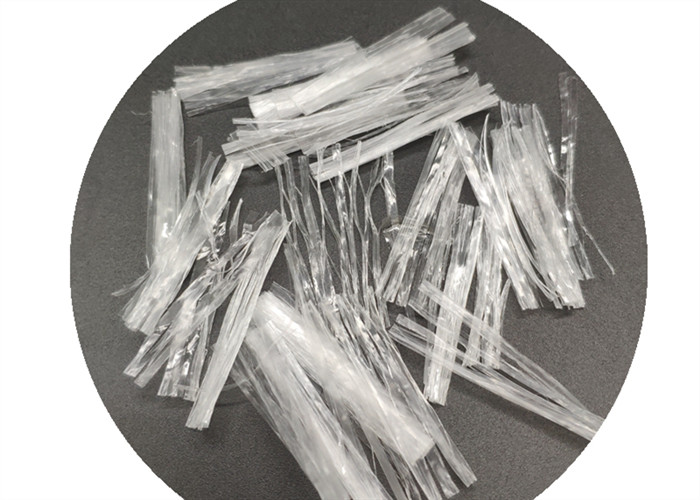

Multifilaments  Micro Synthetic Fibrillated 18mm Concrete Reinforcement Fiber 3





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual

Polypropylene Fiber (PP Fiber)
15000mts

Polyester Fiber (PET Fiber)
6000mts

Polyvinyl Alcohol Fiber ( PVA Fiber)
30000mts

Polyacrylonitrile Fiber (PAN Fiber)
6000mts

Naphthalene Formaldehyde Sulphonate
300000mts

Polycarboxylate Superplasticizer (Powder/Liquid)
150000mts

Concrete Foaming Agent
30000mts



7, Related Product:

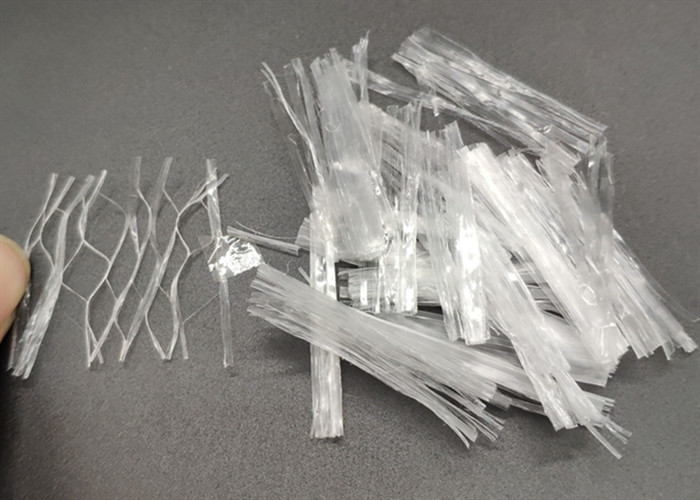

Multifilaments  Micro Synthetic Fibrillated 18mm Concrete Reinforcement Fiber 4
