Plastic HDPE Tri -Dimension Geocomposite Drainage Net geonet
Minimum Order Quantity : | 2000m2 | Price : | Negotiation |
---|---|---|---|
Packaging Details : | Width 5.8M X Length 50M per roll | Payment Terms : | L/C, D/P, T/T, |
Supply Ability : | 10000m2 a day |
Place of Origin: | Anhui, China | Brand Name: | Elite-Indus |
---|---|---|---|
Certification: | CE ISO | Model Number: | Eltmembrane |
Detail Information |
|||
Material: | Geomembrane And Geotextile | Geomembrane Thickness: | 0.2mm To 3.0mm |
---|---|---|---|
Geotextile Unit Weight: | 100g/m2 To 1000g/m2 | Width: | 1M To 6M |
Length: | 50M Or As Per Your Request | Geomembrane Type: | HDPE LLDPE LDPE PVC |
Geotextile Type: | PET Or PP Non Woven | ||
High Light: | geosynthetic clay liner,dimpled drainage board |
Product Description

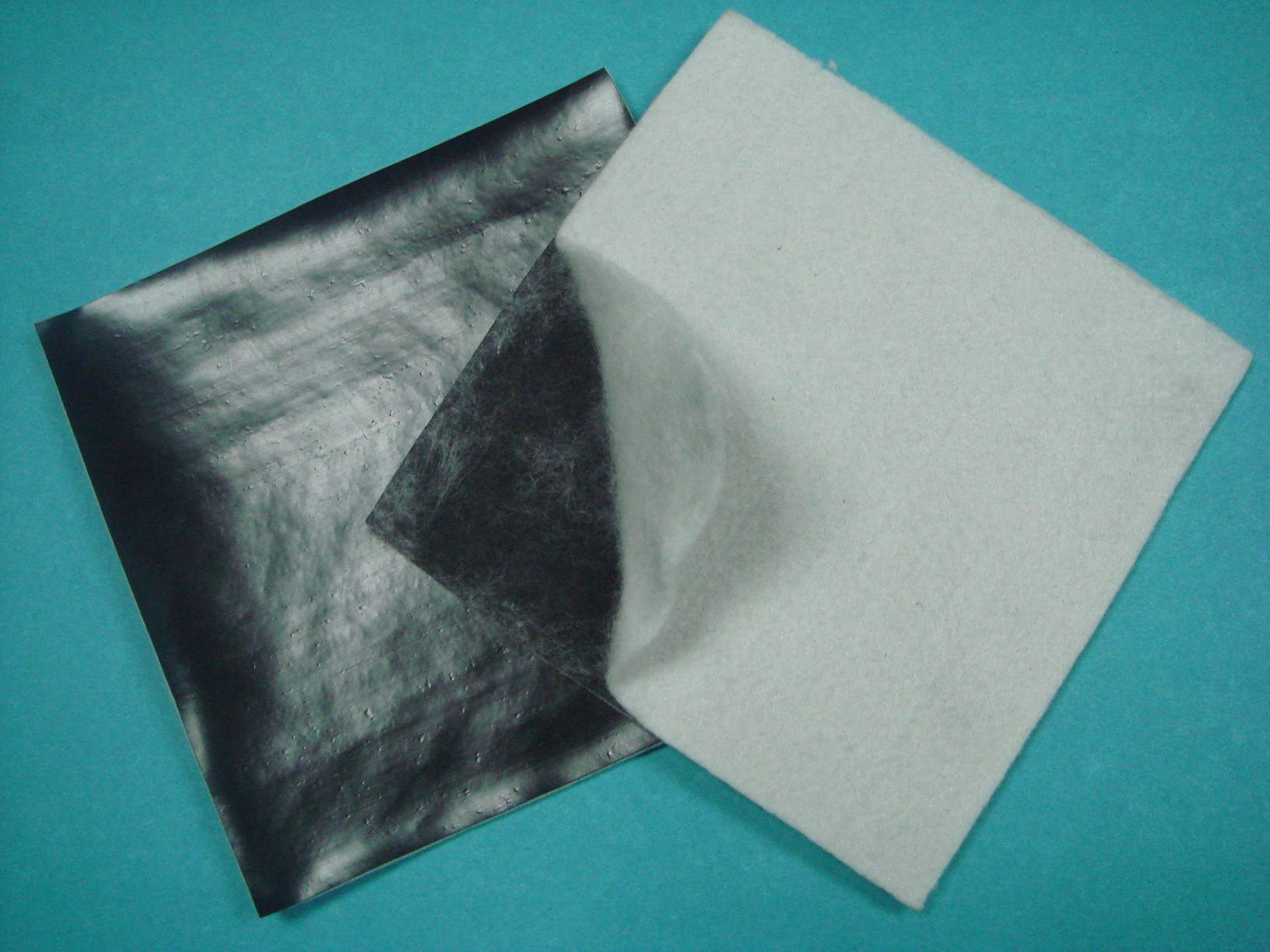

Te Smooth Surface HDPE Geomembrnae Liner Heated Nonwoven Geotextiles 400GSM For Waterproof
Introduction:
Composite geomembrane based on non woven geotextile and PE membrane. There are:
One layer geotextile and one layer geomembrane;
Two layers geotextile and one layer geomembrane,
Two layers geomembrane and one layer geotextile and
Multi-layer geotextile and geomembrane.
Properties:
1,It integrate permeation,inverse filter and drainage function, and has various functions such as isolation and reinforcement.
2,It has high synthetic strength, large removal strength and high puncture resistance.
3,It has strong drainage capacity, large factor and small expansion factor.
4,It has good aging resistance, wide environmental temperature range and stable quality.
Application:
Widely used in dam, traffic tunnel, road, airport, drainage, housing, environmental protection and many other fields, main function is preventing leakage, protection, reinforcement etc.
Product Technological Standard
Table 1
No. | Project | Unit weight g/m2 | ||||||
400 | 500 | 600 | 700 | 800 | 900 | 1000 | ||
1 | Thickness of Membrane mm | 0.25-0.35 | 0.3-0.5 | |||||
2 | Breaking strength kn/m | 5.0 | 7.5 | 10 | 12 | 14 | 16 | 18 |
3 | Elongation at break % | 30-100 | ||||||
4 | CBR mullen Burst Strength KN≥ | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3.0 |
5 | Tear strength KN≥ | 0.15 | 0.25 | 0.32 | 0.40 | 0.48 | 0.56 | 0.62 |
6 | Pell Strength N/cm≥ | 6 | ||||||
7 | Hydraulic pressure | As table 2 | ||||||
8 | Vertical permeability coefficient/(㎝/s) | (1.0-9.9)×10-11~-13 |
Table2
Item | Thickness of geomembrane(mm) | ||||||||
0.2 | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 | ||
Hydraulic pressure MPa≥ | Geotextile+Geomembrane | 0.4 | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 |
Geotextile+Geomembrene+Geotextile | 0.5 | 0.6 | 0.8 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 |
