Uniaxial Biaxial fiberglass Geogrid with Tensile Strength 30-400KN
Minimum Order Quantity : | 5000 sq.m | Price : | 0.45-0.65 |
---|---|---|---|
Packaging Details : | 3.95 * 50 m/ roll | Delivery Time : | 10-15 working days |
Payment Terms : | , L/C, T/T |
Place of Origin: | Anhui China | Brand Name: | Indus |
---|---|---|---|
Certification: | ISO CE ASTM | Model Number: | PPSG |
Detail Information |
|||
Polymer: | PP | Tensile Strength: | 20-20 KN 30-30 KN 40-40 KN 50-50 KN |
---|---|---|---|
Color: | Black | Roll Length: | 50 M, 100m |
Product Name: | PP Biaxial Geogrd | Roll Width: | 3.95m, 3.9m |
Certificate: | ASTM D6337 D4218 D7748 | ||
High Light: | geogrid retaining wall,hdpe uniaxial geogrid |
Product Description
20/20 kn/M 30/30 kn/M Pp Biaxial Geogrid For Road Reinforcement Plastic Road Geo Grids geogrid mat
Apperance of bidirectional tension plastic geotechnical grid is shape structure with near square. It uses polypropylene and high-density polyethylene as main raw materials, is pressed into plate by melting extrusion and formed by punching, heating, vertical and horizontal directional tension.
Product Technological Standard
No. | Index Properties | Test Method | 15/15 | 20/20 | 25/25 | 30/30 | 40/40 | 45/45 | 50/50 |
1 | Polymer | _ | PP | ||||||
2 | Minimum Carbon Black % | ASTM D4218 | 2 | ||||||
3 | Tensile Strength @ 2% Strain MD kN/m | ASTM D6637 | 5.0 | 7.0 | 9.0 | 10.5 | 14 | 16 | 17.5 |
Tensile Strength @ 2% Strain TD kN/m | 5.0 | 7.0 | 9.0 | 10.5 | 14 | 16 | 17.5 | ||
4 | Tensile Strength @ 5% Strain MD kN/m | 7.0 | 14 | 17 | 21 | 28 | 32 | 35 | |
Tensile Strength @ 5% Strain TD kN/m | 7.0 | 14 | 17 | 21 | 28 | 32 | 35 | ||
5 | Ultimate Tensile Strength MD kN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 | |
Ultimate Tensile Strength TD kN/m | 15 | 20 | 25 | 30 | 40 | 45 | 50 | ||
6 | Strain @ Ultimate Strength % | 13 | |||||||
7 | Junction Efficiency % | GRI GG2 | 95 | ||||||
8 | Flexural Rigidity mg-cm | ASTM D7748 | 690, 000 | 1,090,000 | _ | 3,930,000 | 11,480,00 | _ | _ |
9 | Aperture Stability m-N/deg | COE Method | 0.64 | 0.7 | _ | 1.43 | 2.1 | _ | _ |
Dimensions | |||||||||
10 | Aperture Dimensions MD mm | _ | 36 | 36 | 34 | 34 | 34 | 34 | 34 |
Aperture Dimensions TD mm | _ | 38 | 38 | 36 | 36 | 35 | 34 | 36 | |
11 | Minimum Rib Thickness MD mm | ASTM D1777 | 0.9 | 1.3 | 1.8 | 2.1 | 2.6 | 3.2 | 3 |
Minimum Rib Thickness TD mm | 0.7 | 1 | 1.5 | 1.8 | 1.6 | 1.6 | 2 | ||
12 | Roll Width m | _ | 3.95 | 3.95 | 3.95 | 3.95 | 3.95 | 3.95 | 3.95 |
13 | Roll Length m | _ | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
14 | Roll Weight Kg | _ | 39 | 48 | 58 | 68 | 96 | 110 | 128 |
Product Pictures

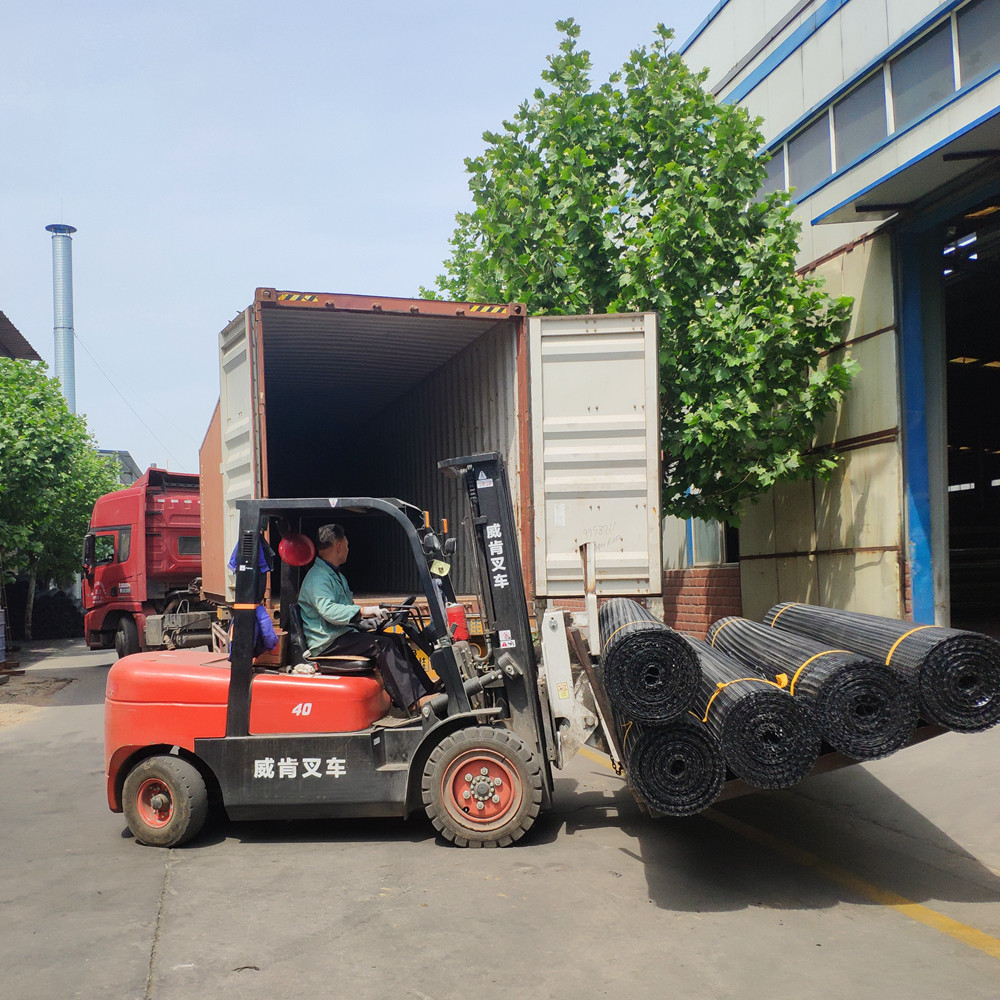

Packing & Delivery
20KnX20Kn: width 3.95m * length 50 m per roll.220 rolls,43450 M2/40'HQ
30KnX30Kn: width 3.95 m * l ength 50 m per roll.144 rolls,28440 M2/40'HQ
40KnX40Kn: width 3.95m * length 50 m per roll.90 rolls, 17775 M2/40'HQ
Delivery Time: 3-15 days
Sample Time: 1-3 days
Payment Methord: T/T, L/C, or as per negotiate
Application
1. Reinforcement of road beds of various highways, railway and highway.
2. Reinforcement of permanent bearing road beds of large parking area and dock goods yard.
3. Slope protection an culvert reinforcement of railway and highway.
4. Secondary reinforcement of soil slope after unidirectional tension geotechnical reinforcement and further reforcement of soil slope so as to avoid soil erosion.
5. Reinforcement of mile an gallery.
TRI Test Report
Our Company:
ELITE was established in 2007, has become one of the leading and professional suppliers of Geocynthetic products
Elite have one full set of precise testing instrument and quality inspection team, technology research & Development team.
Elite own a team with 10+ years experience.We know well of geosynthetics on technical inspection, marketing, transportation.
