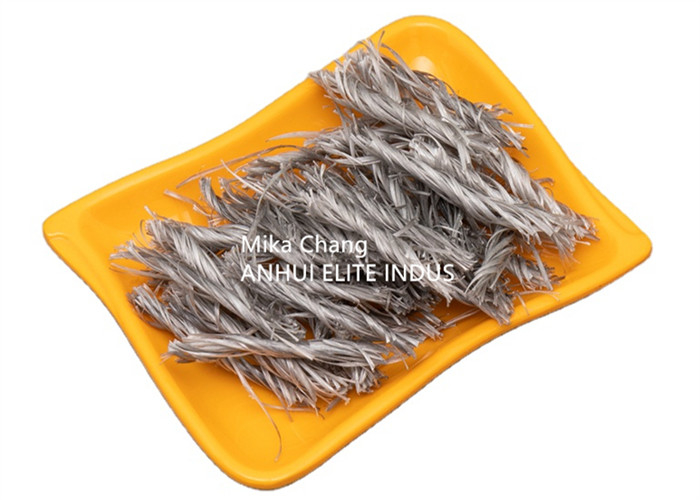

Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN

Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN
Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN

Large Image :  Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN

Product Details:
Place of Origin: Anhui
Brand Name: ELITE-INDUE
Certification: CE ISO
Model Number: Elt-Twist
Payment & Shipping Terms:
Minimum Order Quantity: 1000kgs
Price: FOB Qingdao Port,China
Packaging Details: 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'HQ
Delivery Time: Within 15days after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 10000TON PER YEARS
Detailed Product Description
Material: 100% Virgin Blended Copolymer Length: 19mm 25mm 38mm 40mm 48mm 54MM
Elastic Modulas: Min 4800MPa Equivalent Diameter: 0.3+/-0.03mm
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 500MPA To 800Mpa HS CODE: 5503400000
Similar Brand: TUF-STRAND MAXTEN Similar Type: TUF-STRAND SF
High Light:

twist Bundle Macro Synthetic Fiber

,

19mm Macro Synthetic Fiber

,

twist Bundle macro concrete fiber concrete

                                        Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN

1, Description:



ELT-Twist is a 100% virgin blended copolymer synthetic macrofiber, is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.B twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.ELT-TWIST is a synthetic fibre designed for optimising the load carrying performance of concrete and screed.



ELT-Twist can be mixed easily and homogeneously with concrete.The low-weight fibre can be distributed easily in three dimensions.Optimising the static properties of concrete,ELT-Twist improves the impact resistance, the ultimate flexural strength and the ductility of concrete.The high fibre frequency in concrete spreads the tension homogeneously and ensures prevention of shrinkage and stress cracks.

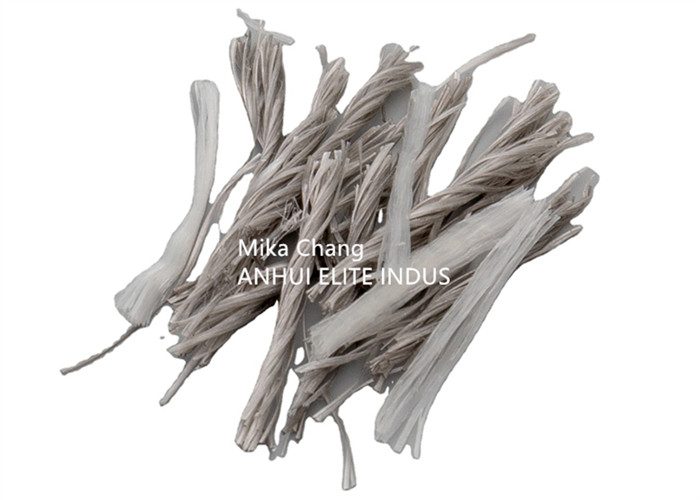

Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN 0

Advantage:

  • Equivalent tensile and bending resistance to conventional reinforcement requirements
  • Controls and mitigates plastic shrinkage cracking and reduces segregation and bleed-water
  • Provides three-dimensional reinforcement against micro and macro-cracking
  • Reduces equipment wear, fiber rebound and increases build-up thickness compared to steel fibers for shotcrete applications
  • Increases overall durability, fatigue resistance and flexural toughness
  • Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control
  • Easily added to concrete mixture at any time prior to placement





2, Production Process



Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN 1



3, Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
PP
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>3500
Resistance to acid & alkali
strong



4, Packing:

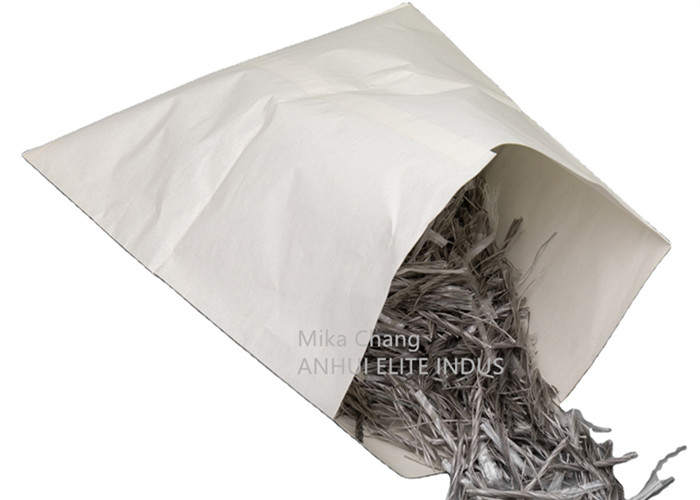

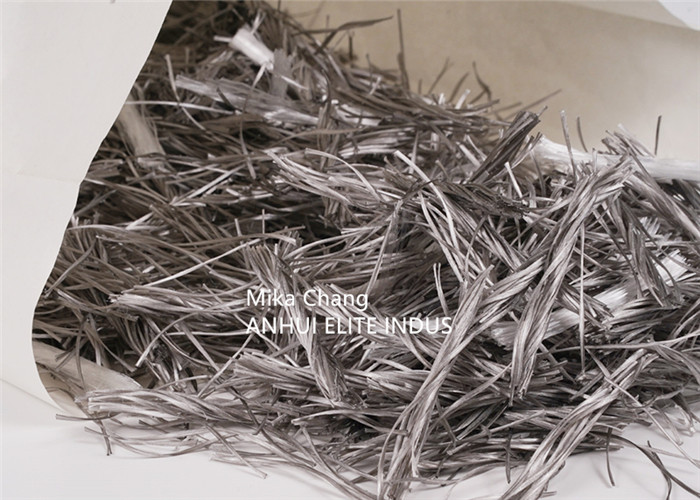

Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN 2



5, Applying Instruction:



1, Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.


2, Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm


3, Matching Ratio:


Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.



5, Mixing process:

Doses of synthetic macro fibers varies between 2,5 kg/m3 and 5 kg/m3 depending on engineering requirements of the projects. Homogeneous mixture is obtained by adding the fibers to the aggregate band at the batching plant or mixing at the site to the truck. It is recommended to to add fibers after plasticizer additives and mix for at least 4 to 5 min. at high speed



6, Shaping & Maintenance


There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



6, CERTIFICATE:



Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN 4





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts



7, Related Product:



Polypropylene TWIST Bundle Macro Synthetic Fiber Similar To EUCLID TUF-STRAND MAXTEN 5
