Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color

Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color

    • Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color
    • Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color
    • Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color
    • Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color
  • Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color

    Product Details:

    Place of Origin: Anhui,China
    Brand Name: Elite-Indus
    Certification: ISO CE
    Model Number: Elt-Cell

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000M2
    Price: USD1.0 to USD4.0/m2 FOB Qingdao Port
    Packaging Details: Width 2.44m X Length 6.15m per Piece, about 6000m2/20'gp
    Delivery Time: Within 15days after order confirmation
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 20000m2 PER DAY
    Contact Now
    Detailed Product Description
    Material: HDPE Resin Sheet Thickness: 0.9mm To 1.8mm
    Cell Depth: 50mm To 300mm Welding Space: 300mm To 1600mm
    Surface: Smooth/Textured/Perforated Seam Peel Strength: 1000N/10cm,1100N/cm,1200N/10cm,1420N/10cm
    Hole Size: 8mm Color: Black/Green/Sand



    Smooth Textured Perforated Surface Plastic HDPE Geocell GEOWEB Black Green Sand Color



    Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color



    1,Product Description:

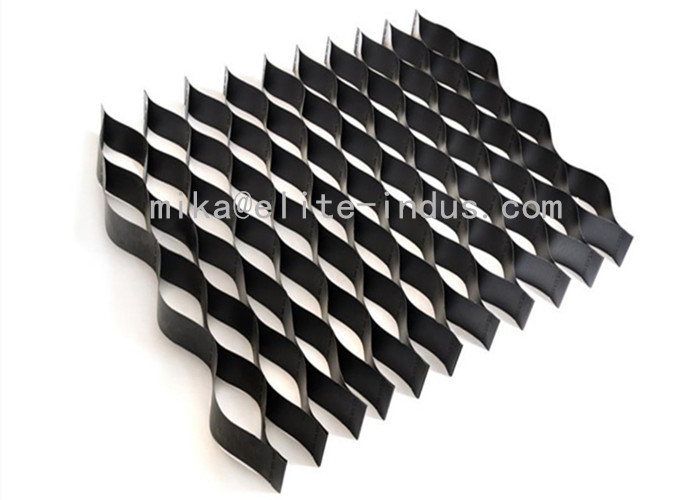

    ELTcell Geocell is a lightweight and flexible three-dimensional,expandable panels made from high-density polyethylene(HDPE)
    strips which are ultrasonically bonded together to form an extremely strong configuration.Geocell system can be filled with a wide
    range of material: aggregate,concrete,sand,soil,etc.

    ELTcell is engineered for soil stabilization applications,it is used to help improve the performance of standard Construction
    materials and erosion-control treatments.

    2,Main Specification



    Item
    Main Specification
    Width Spacing
    300mm to 1600mm
    Cell Height
    50mm to 300mm
    Seam Peel Strength
    1000N, 1100N,1200N,1420N
    Color
    Black, Green, Sand
    Surface
    Smooth/Textured/Perforated


    Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color

    3, ELTcell Advantage:

    1,Virgin HDPE basic with Unique Formula.
    2,Tensile Strength reaches 33000 kN/m² (33 MPa)
    3,Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
    4,Various weld spacing available from 220mm to 1600mm
    5,Various strip height available from 25mm to maximum 300mm
    6,Maximum strip length reaches 8m, expanded width reaches 6m.
    7,Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
    8,Easy to transport, all weather installation with high construction speed.
    9,Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.

    4,Production Process:



    Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color


    5,Specification:



    Cell
    Test Method
    Units
    Values
    Cell Depth
    -
    mm
    50-300(±0.5)
    Weld Spacing
    -
    mm
    220-1600(±1.0)
    Surface
    -
    -
    Smooth/Textured&Perforated
    Color
    -
    -
    Black/Green/Sand
    Property
    Material
    -

    Virgin HDPE
    ESCR
    ASTM D1603
    hr
    400
    Density
    ASTM D1505
    g/cm3
    0.945-0.960
    Thickness (smooth)
    ASTM D5199
    mm
    1.20 (-5% +10%)
    Thickness (Textured)
    ASTM D5199
    mm
    1.50 (-5% +10%)
    Carbon Black
    ASTM D1603
    %
    ≥ 1.5
    Seam Peel Strength
    USACE GL-86-19
    N
    ≥ 15KN/m
    Tensile Strength at Break
    ASTM D638
    kN/m2
    ≥ 32000 (TD) / ≥ 30000 kN (MD)
    Elongation at Break
    ASTM D6693

    ≥ 900 (TD) / ≥ 480 (MD)
    Oxidative Induction Time
    ASTM D3895
    min
    ≥150
    Long-term
    Seam Peel Strength
    Long term seam peel strength test shall be performed on all resin or pre-manufactured sheet or strips. A 100mm wide seam sample shall support a 72.5kg load for a period of 168 hours minimum in a temperature controlled environment undergoing a temperature change on a 1-hour cycle from 23ºC to 54ºC

    Standard Dimensions
    356mm
    445mm
    712mm
    Nominal Expanded Cell Size
    252mmx252mm
    315mmx315mm
    503mmx503mm
    Nominal Section Size
    2.52mx7.3m
    2.52mx9.12m
    2.52mx14.6m
    Nominal Section Area
    18.37m2
    22.96m2
    36.74m2


    6,Application:






    Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color

    7,Packing and Connector:



    Smooth Textured Perforated Surface Plastic Geo Geocell Geoweb Black Green Sand Color
