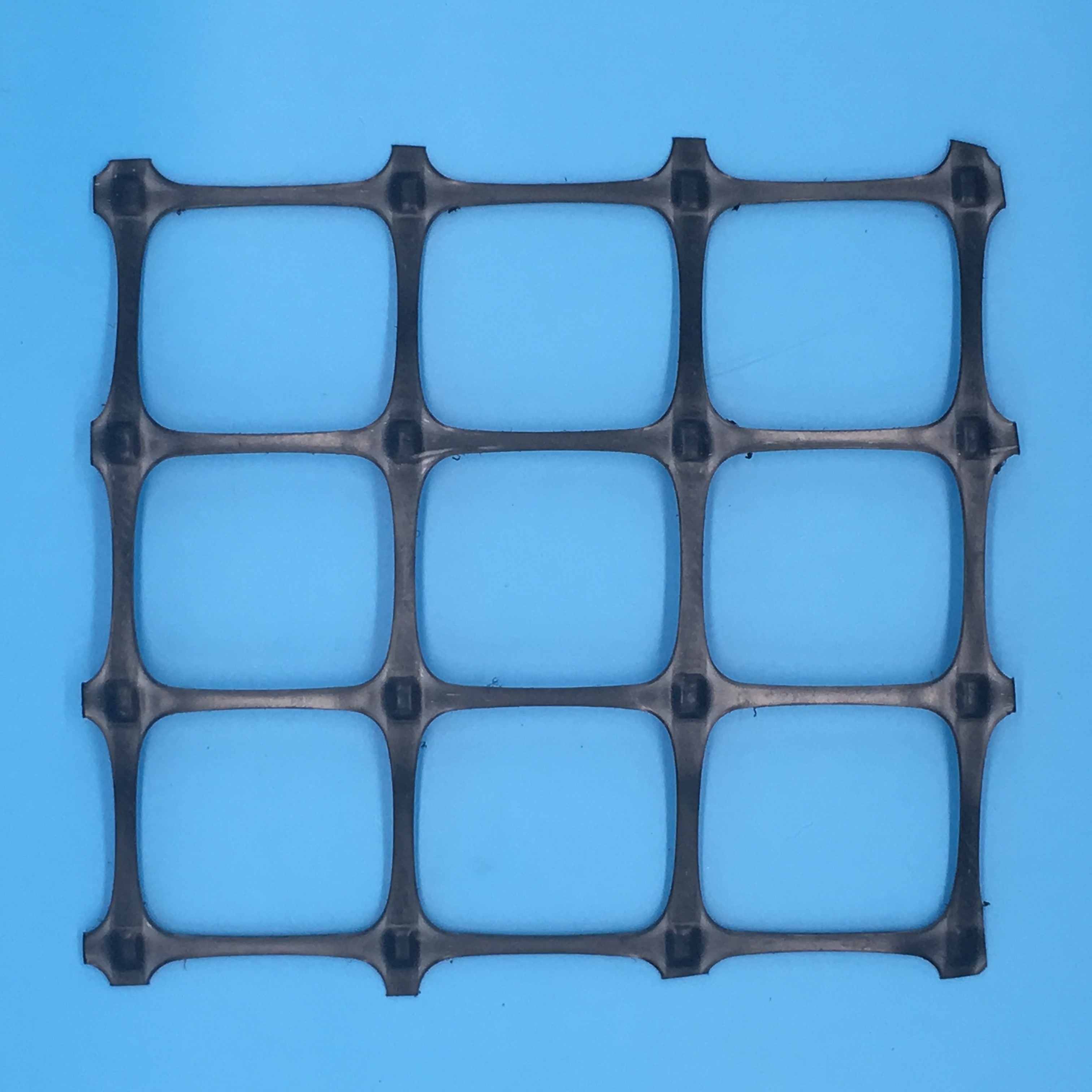

High Strength Plastic Geogrid / Polyester Mining Geogrid Soil Stabilization

Basic Information
Place of Origin: Anhui,China
Brand Name: Elite-Indus
Certification: CE ISO
Model Number: EltGrid-FETG
Minimum Order Quantity: 5000M2
Price: Negotiation
Packaging Details: Width 3.95m X Length 100M Per Roll
Supply Ability: 100000M2/Day

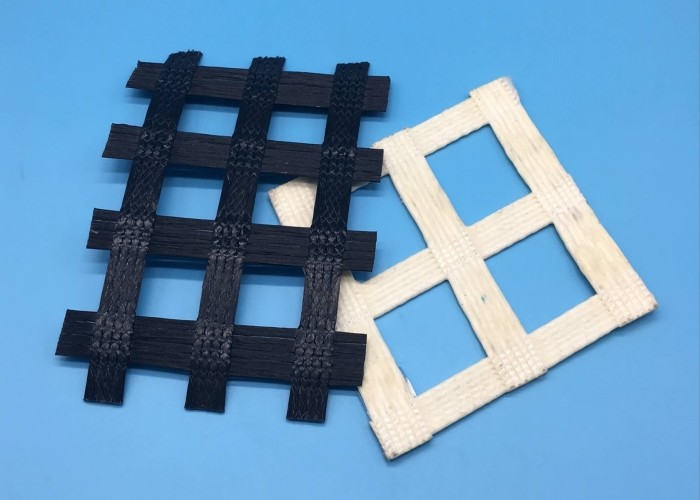

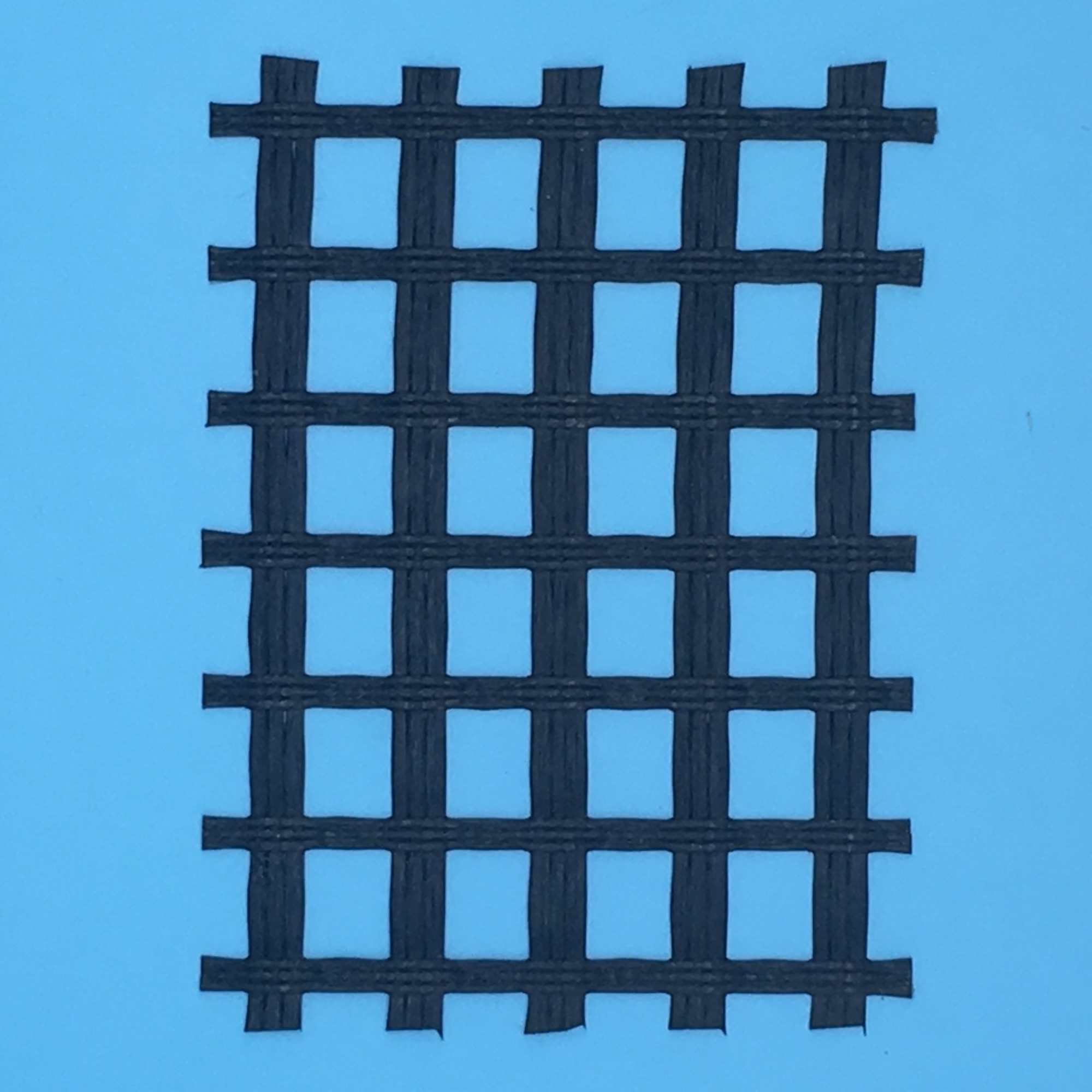

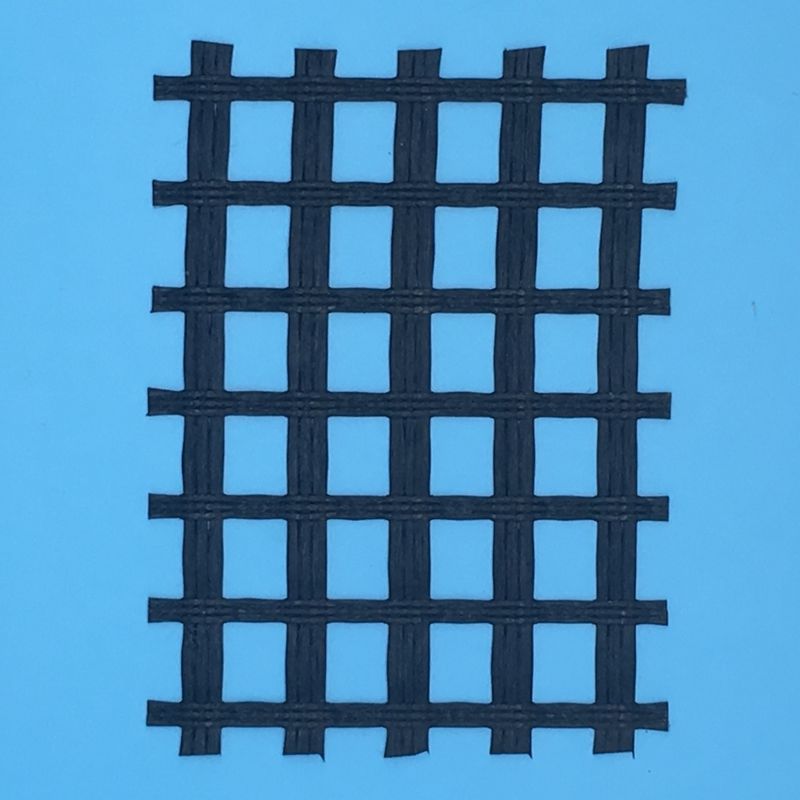

Polyester Mining Geogrid



Description:



Polyester Mining Geogrid is a kind of fake ceiling mesh mainly used for coal mine as well as

other mines and underground civil engineering.

It adopts high-modulus and high strength long polyester fiber warp knitted and bundled together

as its body and then is coated with fire retarding and static conducting material. It is a good

substitute for metal mesh, plastic mesh, steel-plastic composite mesh, packing belt mesh and etc.



High Strength Plastic Geogrid / Polyester Mining Geogrid Soil Stabilization





Features:



1. Soft, light, high tensile and high strength of the junction

2. Acid and alkali resistance, cold and moisture resistance.

3. Corrosion resistance, long life, fire retarding and and static conduction.



Applications:



1. Fake ceiling supporting in stoping face

2. Anchoring and shotcreting tunnel supporting
3. Temporary and permanent supporting in tunnel
4. Other mining tunnel projects and underground civil engineering



High Strength Plastic Geogrid / Polyester Mining Geogrid Soil Stabilization



Technical parameter:



Performance/specification

PETMG

40-40

PETMG

50-50

PETMG

60-60

PETMG

80-80

PETMG

100-100

PETMG

120-120

PETMG

160-160

Stretching ratio %≤ 25
Intensity Vertical 40 50 60 80 100 120 140
KN/m Horizontal 40 50 60 80 100 120 140
Mesh size mm 25.4*25.4 50.8*50.8 76.2*76.2
Aperture mm 20*20 40*40 50*50
Flame retardancy s Flame:<3 No-flame: <10
Static conduction Ω <1.0*109
Width m 1-6



Performance/specification

PETMG

200-200

PETMG

240-240

PETMG

300-300

PETMG

400-400

PETMG

600-600

PETMG

800-800

Breaking Elongation %≤ 25
Intensity Vertical 200 240 300 400 600 800
KN/m Horizontal 200 240 300 400 600 800
Mesh size mm 25.4*25.4 50.8*50.8 76.2*76.2
Aperture mm 20*20 40*40 50*50
Flame retardancy s Flame:<3 No-flame: <10
Static conduction Ω <1.0*109
Width m 1-6

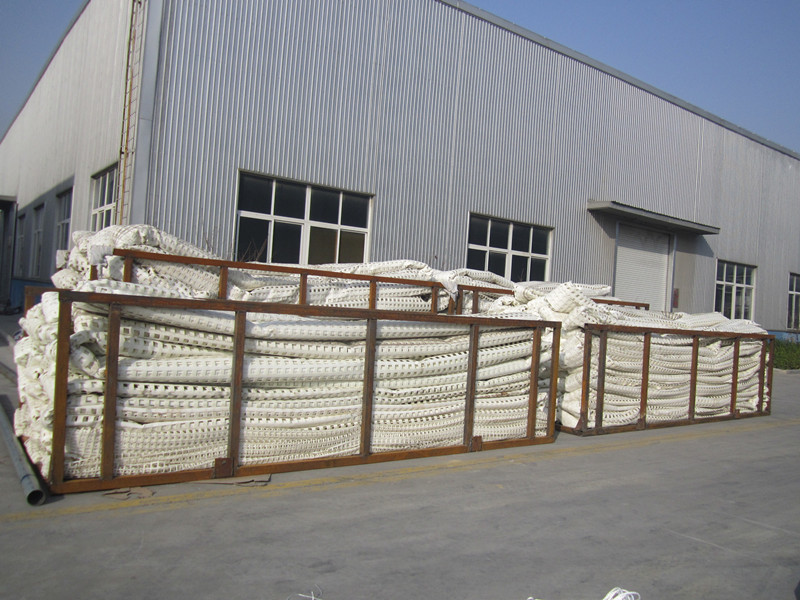

Packing:



High Strength Plastic Geogrid / Polyester Mining Geogrid Soil Stabilization
