PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction

Good quality Soluble Dietary Fiber for sales
Good quality Soluble Dietary Fiber for sales
I'm Online Chat Now

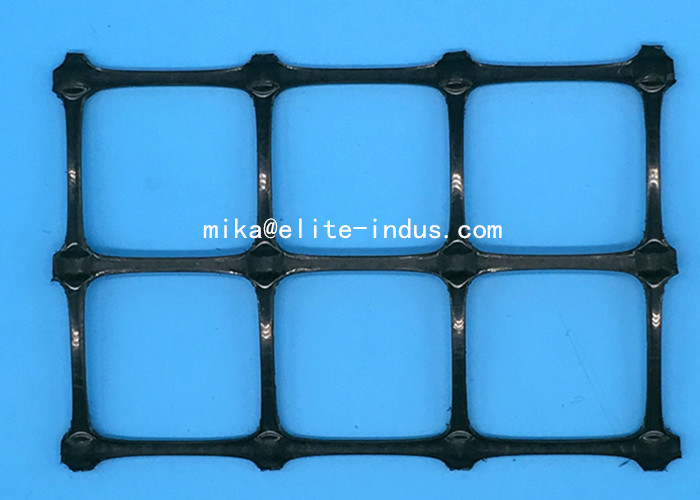

PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction

China PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction supplier
PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction supplier PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction supplier PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction supplier PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction supplier

Large Image :  PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction

Product Details:

Place of Origin: ANHUI,CHINA
Brand Name: ELITE-INDUS
Certification: ISO/CE
Model Number: ELT-GRID

Payment & Shipping Terms:

Minimum Order Quantity: 1000M2
Price: USD0.4/m2 to USD2.0/m2
Packaging Details: Width 3.95M X length 50M Per roll
Delivery Time: Within 15 days after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000m2/days
Contact Now
Detailed Product Description
Material: Polypropylene Resin Color: Black
Strength: 10/10Kn To 50/50Kn Width: 3.95m
Length: 50m Type: Biaxial
Feature: High Strength MOQ: 1000M2
HS Code: 3926909090 Application: Road Construction
Mesh Size: 32mm~38mm/ 65mmX65mm

                                High Strength Plastic Polypropylene Biaxial Geogrid 15/15 20/20 30/30 40/40 50/50



1,Description:

POLYPROPYLENE (PP) biaxial geogrids offer improved roadway solutions based on time tested design principles. Biaxial geogrids add strength

and stability to the soil layers via confinement of the soil particles. Whether paved or unpaved, biaxial geogrids provide two unique yet related

functions of Soil Stabilization and Base Reinforcement.



EltGrid-PPBG biaxial geogrid is manufactured from Polypropylene,from the process of extruding,longitudinal stretching and transverse stretching.

it is have High tensile strength at both longitudinal (MD) and transverse (TD) direction. it makes soil reinforced with its excellent structure stability

and strong mechanical interlock performance.

PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction

2. Features & Benefits
1), High tensile strength at both longitudinal and transverse direction.
2), High tension resistance,high plane torsion resistance modulus,good creep resistance and stable chemical nature.
3), High mechanic damage resistance and durability and large friction factor with sandy stone.
4), It can improve bearing force of foundation and increase diffusion angle


3. Production Process



PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction



4,Specification:



No. Index Properties Test Method 15/15 20/20 25/25 30/30 40/40 45/45 50/50
1 Polymer _ PP
2 Minimum Carbon Black % ASTM D4218 2
3 Tensile Strength @ 2% Strain MD kN/m ASTM D6637 5.0 7.0 9.0 10.5 14 16 17.5
Tensile Strength @ 2% Strain TD kN/m 5.0 7.0 9.0 10.5 14 16 17.5
4 Tensile Strength @ 5% Strain MD kN/m 7.0 14 17 21 28 32 35
Tensile Strength @ 5% Strain TD kN/m 7.0 14 17 21 28 32 35
5 Ultimate Tensile Strength MD kN/m 15 20 25 30 40 45 50
Ultimate Tensile Strength TD kN/m 15 20 25 30 40 45 50
6 Strain @ Ultimate Strength % 13
7 Junction Efficiency % GRI GG2 95
8 Flexural Rigidity mg-cm ASTM D7748

690,

000

1,090,000 _ 3,930,000 11,480,000 _ _
9 Aperture Stability m-N/deg COE Method 0.64 0.7 _ 1.43 2.1 _ _
10 Aperture Dimensions MD mm _ 36 36 34 34 34 34 34
Aperture Dimensions TD mm _ 38 38 36 36 35 34 36
11 Minimum Rib Thickness MD mm ASTM D1777 0.9 1.3 1.8 2.1 2.6 3.2 3
Minimum Rib Thickness TD mm 0.7 1 1.5 1.8 1.6 1.6 2
12 Roll Width m _ 3.95 3.95 3.95 3.95 3.95 3.95 3.95
13 Roll Length m _ 50 50 50 50 50 50 50
14 Roll Weight Kg _ 39 48 58 68 96 110 128




5. Packing
20KnX20Kn: width 3.95m*length per roll.220rolls,43450M2/40'HQ
30KnX30Kn: width 3.95m*length per roll.144rolls,28440M2/40'HQ
40KnX40Kn: width 3.95m*length per roll. 90rolls,17775M2/40'HQ

PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction

6. Applications

  • Paved highways, secondary roads, haul roads
  • Parking areas for commercial and industrial facilities
  • Airport runways and taxiways
  • Truck freight distribution centers and terminals
  • Heavily loaded equipment yards at port, rail, intermodal, and industrial facilities
  • Haul roads
  • Soft soil stabilization
  • Base reinforcement
  • Embankments over soft soils
  • Working platforms

PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction

7, Test

PP Biaxial Plastic Geogrid 3.95m Width 50m Length For Road Construction

8, Our Company:
ANHUI ELITE INDUSTRIAL CO.,LTD
ELITE was established in 2007, has become one of the leading and professional suppliers of many kinds of Geosynthetics
(Geotextile,Geomembrane, Geogrid,Geocell, GCL,Geocomposite) in the world market.

ELITE equipements are mainly import from Germany, Italy, Cabada, France. We have one full set of precise testing instrument
and quality inspection team, technology research & Development team.



Geotextile

1, PET Non Woven Geotextile        2, PP Non Woven Geotextile

Geomembrane

1, HDPE  Geomembrane                2, LDPE Geomembrane

3,LLDPE Geomembrane                4, PVC Geomembrane
Geogrid

1, PP Biaixal Geogrid                     2,HDPE Uniaxial Geogrid

3, Fiberglass Geogrid                    4, Polyester Geogrid
Geocell
Plastic HDPE Geocell
GCL
Geosynthetic Clay Liner
Geocomposite

1, Composite geomembrane              2, Geogrid composite geotextile

3, 3D Geonent composite geotextle   4, Composite Dimple membrnae
