Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber

China ANHUI ELITE INDUSTRIAL CO.,LTD certification
China ANHUI ELITE INDUSTRIAL CO.,LTD certification
I'm Online Chat Now

Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber

Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber
Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber

Large Image :  Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber

Product Details:
Place of Origin: Anhui
Brand Name: ELITE-INDUE
Certification: CE ISO
Model Number: Elt-Twist
Payment & Shipping Terms:
Minimum Order Quantity: 1000kgs
Price: FOB Qingdao Port,China
Packaging Details: 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12000KG/20'gp
Delivery Time: Within 15days after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 10000TON PER YEARS
Detailed Product Description
Material: Copolymer Polypropylene Length: 54MM
Elastic Modulas: Min 5000MPa Equivalent Diameter: 0.3+/-0.03mm
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 550MPA To 800Mpa Appearance: Twisted Monofilaments
Delivery Time: Within 15days No. Fibers Per Kg: 100000
High Light:

Reinforcement macro synthetic fiber

,

Monofilaments macro synthetic fiber

,

Twisted macro synthetic fiber

                                        Concrete Reinforcement Macro Fibers Twisted Monofilaments Tensile Strength 550 Mpa to 800Mpa

1, Description:



ELT-TWIST is for concrete reinforcement macro fibers. It turns concrete into a reinforced composite material that slows crack propagation and reduces plastic shrinkage cracking. Impact and corrosion resistance are also enhanced.



ELT-TWIST fibers comply with ASTM C1116, Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used for the reduction of plastic shrinkage cracks, to improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term durability of concrete, structural enhancements and cement based building products.



ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.A twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.

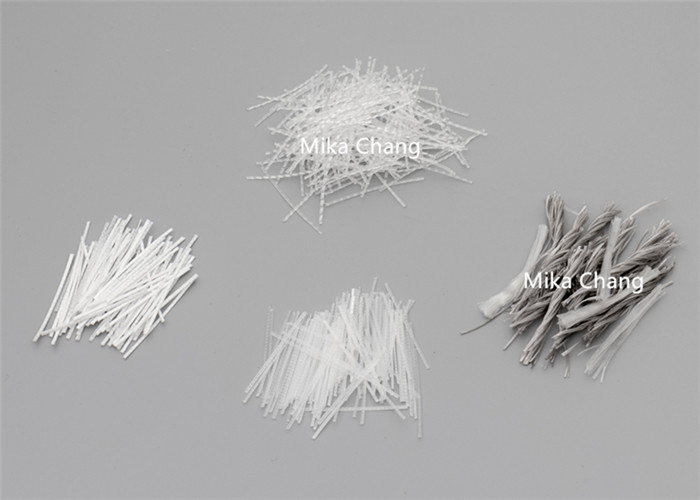

Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber 0







2, Production Process

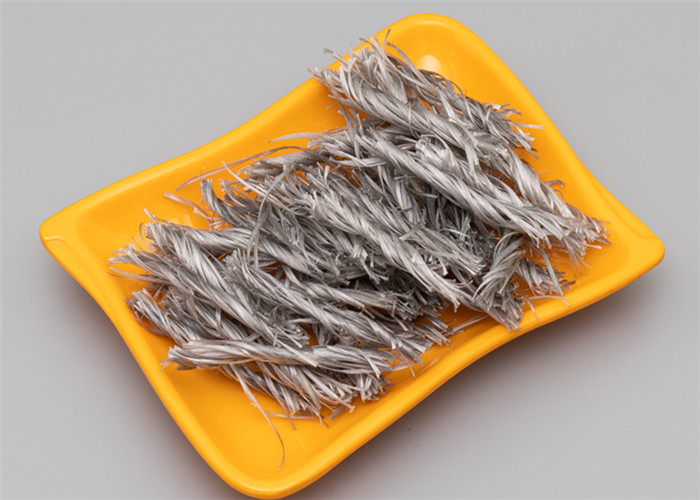

Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber 1



3, Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
PP
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>3500
Resistance to acid & alkali
strong



4, Packing:

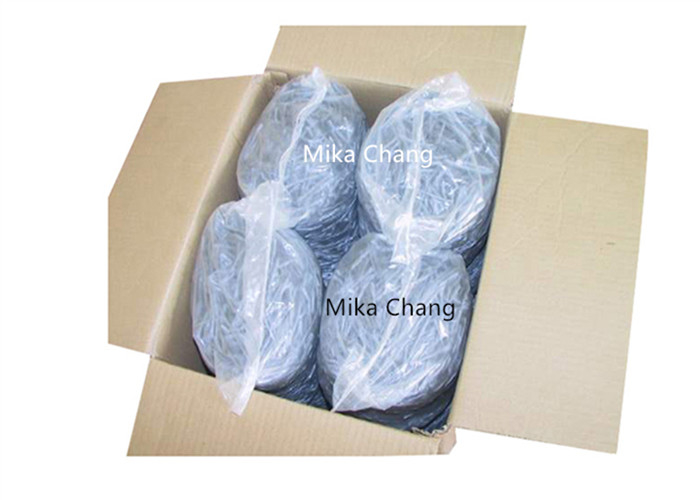

Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber 2



5, Applying Instruction:



1, Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.


2, Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm


3, Matching Ratio:


Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.



5, Mixing process:

Doses of synthetic macro fibers varies between 2,5 kg/m3 and 5 kg/m3 depending on engineering requirements of the projects. Homogeneous mixture is obtained by adding the fibers to the aggregate band at the batching plant or mixing at the site to the truck. It is recommended to to add fibers after plasticizer additives and mix for at least 4 to 5 min. at high speed



6, Shaping & Maintenance


There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



6, CERTIFICATE:

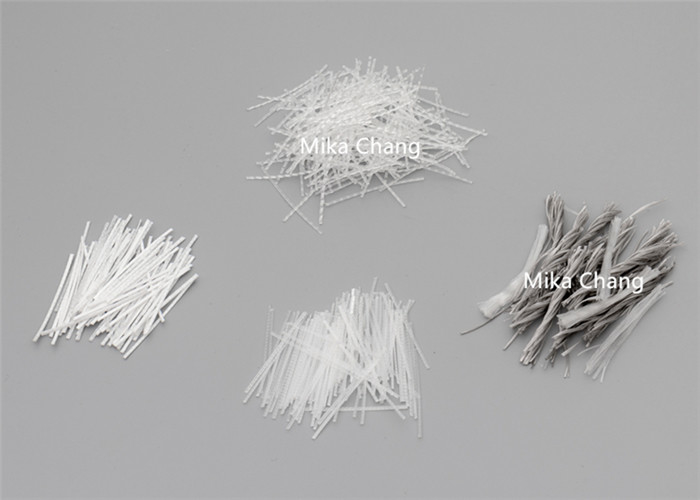

Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber 4





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts



7, Related Product:

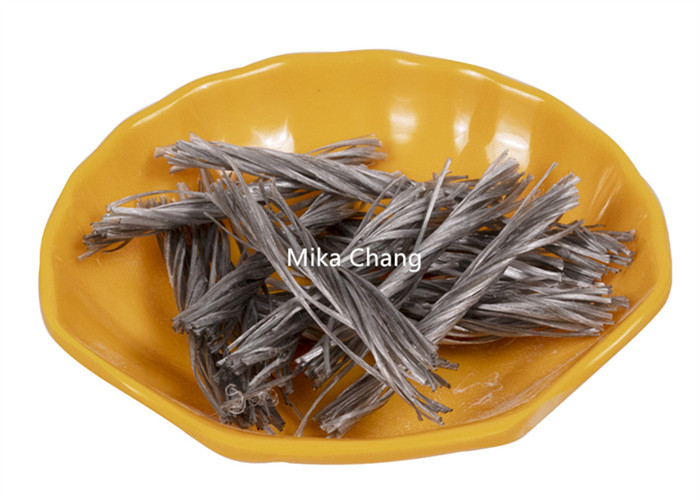

Concrete Reinforcement Twisted Monofilaments Macro Synthetic Fiber 5
