Landfill Drainage Geocomposite Drainage Net 3D Geonet Composite Geotextile
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
| Minimum Order Quantity : | 5000m2 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 50m a roll | Payment Terms : | L/C, D/P, T/T, |
| Supply Ability : | 10000m2 a day |
| Place of Origin: | Anhui, China | Brand Name: | Elite-Indus |
|---|---|---|---|
| Certification: | ISO CE | Model Number: | FGGG |
|
Detail Information |
|||
| Geogrid: | Fiberglass Geogrid | Geogrid Strength: | 50Kn To 200kn |
|---|---|---|---|
| Geotextile: | PP Or PET Non Woven | Geotextile Unit Weight: | 17g/m2 To 200g/m2 |
| Width: | 1-6m | Length: | 50m/100m |
| High Light: | dimpled drainage board,geomembrane pond liner,Fiberglass Geocomposite Drainage Net |
||
Product Description

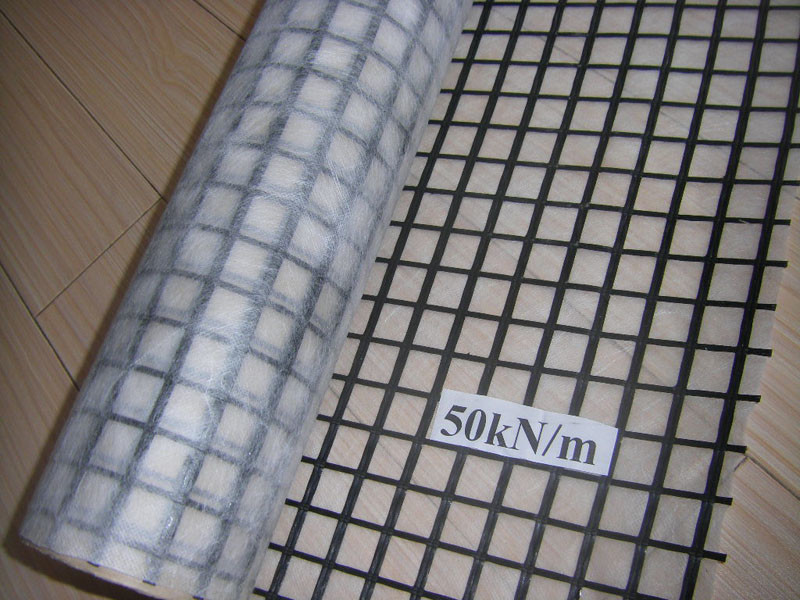

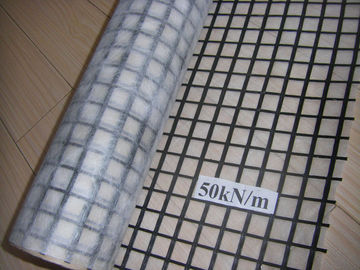

Fiberglass Geogrid Composite Geotextile
Fiberglass Geogrid Composite Geotextile Description:
EltGrid-FGCG fiberglass geogrid composite geotextile is a compound product made of fiberglass geogrid and geotextile. The polypropylene/polyester geotextile stitch bonding or paste on the fiberglass geogrid.
It is the new material that can prevent the reflection cracking,water damage and improving loading capacity in the project of road construction and renovation.It has the properties of high temperature rut resistance and anti-fatigue cracking, therefore prolong the life time of pavement.
Fiberglass Geogrid Composite Geotextile properties:
1, High tensile strength, excellent in anti-tearing and anti-bursting performance.
2, Use geotextile as the basic fabric,it has the function of material isolation,water drainage,Pavement reinforcement, protection,and anti-seepage.
Fiberglass Geogrid Composite Geotextile Potential Applications:
The fiberglass geogrid composite geotextile has a widely application on water conservation,road construction,architecture,subway and tunnel.
Fiberglass Geogrid Composite Geotextile Technical parameter:
| specification | FGCG 30×30 |
FGCG 50×50 |
FGCG 60×60 |
FGCG 80×80 |
FGCG 100×100 |
FGCG 120×120 |
FGCG 150×150 |
FGCG 200×200 |
FGCG 300×300 |
|
| Fiberglass geogrid properties (GB/T 21825-2008) | ||||||||||
| Mesh center distance(mm) | MD | 12.7±3.8 25.4±3.8 50.8±3.8 | ||||||||
| TD | 12.7±3.8 25.4±3.8 50.8±3.8 | |||||||||
| breaking strength(kn/m) | MD | 30 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | 300 |
| TD | 30 | 50 | 60 | 80 | 100 | 120 | 150 | 200 | 300 | |
| Breaking Elongation(%) | MD | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| TD | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Normal composite Geotextile properties (GB/T17638-1998) | ||||||||||
| Unit weight(g/m2) | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | |
| breaking strength(kn/m) | 2.5 | 4.5 | 6.5 | 8 | 9.5 | 11 | 12.5 | 14 | 16 | |
| CBR mullen burst strength | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | |
| Tear strength | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | |
| width(m) | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m | 1m-6m | |
Remark:
1, The normal composite geotextile is short fiber needle punched polyester nonwoven geotextile
2, The normal composite geotextile weight is 100g/m2,120g/m2,150g/m2,200g/m2
3,Gram weight and type of geotextile can be produced with buy’s requirement.
4,The normal composite fiberglass geogrid tensile strength is 50/50kn/m, 100/100kn/m.
