HDPE Geocell for Slope Stabilization With Height 50 - 300mm

Minimum Order Quantity : 5000m2 Price : Negotiation
Packaging Details : one set a packing on pallet Payment Terms : L/C, D/P, T/T,
Supply Ability : 6000m2 a day
Place of Origin: Anhui, China Brand Name: Elite-Indus
Certification: ce Model Number: Eltcell

Detail Information

Material: Virgin High Density PE Color: Black, Green, Brown
Cell Height: 50mm To 300mm Welding Space: 356mm 455mm 712mm 1600mm
Seam Peel Strength: 1000N 1200N 1420N Density: 0.95 G/cm3
Welding Distance: 300mm To 1600mm Surface 1: Smooth
Surface 2: Textured With Hole
High Light:

geocell road construction

,

plastic geocell

Product Description

HDPE geocell with height 50-300mm welding distance 220-1600mm



HDPE Geocell Introduction :



ELTcell HDPE Geocell is a lightweight and flexible three-dimensional,

expandable panels made from high-density polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.



HDPE Geocell system can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.



ELTcell is engineered for soil stabilization applications,

it is used to help improve the performance of standard Construction materials and erosion-control treatments.

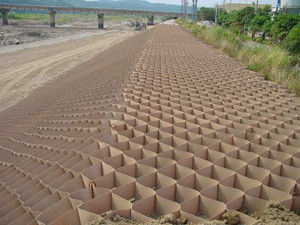

HDPE Geocell for Slope Stabilization With Height 50 - 300mm 0



HDPE Geocell Production Process:

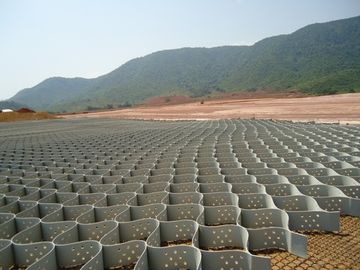

HDPE Geocell for Slope Stabilization With Height 50 - 300mm 1



HDPE Geocell Applications:



Load Support

Slope Protection

Retaining Wall

Channel Protection

Ground Stabilization

Erosion control



HDPE Geocell for Slope Stabilization With Height 50 - 300mm 2



HDPE Geocell Advantage:



Virgin HDPE basic with Unique Formula.

Tensile Strength reaches 33000 kN/m² (33 MPa)

Seam Peel Strength above 16 kN/m (USACE GL-86-19);



Split Strength above 28 kN/m (EN ISO13426-1 Method C).

Various weld spacing available from 220mm to 1600mm



Various strip height available from 25mm to maximum 300mm

Maximum strip length reaches 8m, expanded width reaches 6m.



Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost

Easy to transport, all weather installation with high construction speed.



Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.





HDPE Geocell Specifications



Item No. Height
(mm)
Weld distance
(mm)

Thickness

of the Sheet
(mm)

Tensile Strength of Welding Points
(N/cm)
GC5/40 50 330≤A<1000 ≥1.1 ≥100
GC7.5/40 75 330≤A<1000 ≥1.1 ≥100
GC10/40 100 330≤A<1000 ≥1.1 ≥100
GC15/40 150 330≤A<1000 ≥1.1 ≥100
GC20/40 200 330≤A<1000 ≥1.1 ≥100
GC20/33 200 330 1.25+/-0.05 ≥100
GC20/60 200 600 1.50+/-0.05 ≥100
GC20/60 200 600 1.25+/-0.05 ≥100

Remarks: Width of the product can be made according to the customer’s demand,

and other special standards will carry out by agreement or contract.



HDPE Geocell Testing



HDPE Geocell for Slope Stabilization With Height 50 - 300mm 3





HDPE Geocell Packing:



HDPE Geocell for Slope Stabilization With Height 50 - 300mm 4
