Eco Friendly Macro Synthetic Fibers , Plastic Fibre Reinforced Concrete

Minimum Order Quantity : 500 kgs Price : Negotiation
Packaging Details : 1.0 kg/ PE bag, 10 kgs/plastic woven bag Delivery Time : 3-15 days
Payment Terms : T/T, , L/C, D/P Supply Ability : 600 tons per month
Place of Origin: China Brand Name: Elite-indus
Certification: ISO, CE, FDA Model Number: PMFT-0012

Detail Information

Product Name: Macro Synthetic Fibers Fiber Type: Curved Wave/Undee
Tensile Strength: ≥480Mpa Acid &Alkali Resistance: Strong
Application: Concrete Free Sample: Yes
Delivery Time: 3-15 Days Color: White, Black, Gray
High Light:

fibrillated polypropylene fibers

,

synthetic polymer fibers

Product Description

Eco Friendly Macro Synthetic Fibers , Plastic Fibre Reinforced Concrete



Elite Macro Synthetic Fiber of Twist Form is a patented polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers, welded wire mesh and conventional reinforcing bars in a wide variety of applications.



Our Macro Synthetic Fiber comply with ISO CE and suitable for Concrete and Shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements.

Concrete with our Macro fiber will have three-dimensional reinforcing with enhanced flexural toughness, impact and abrasion resistance and will also help mitigate the formation of plastic shrinkage cracking in concrete.
Dosage rates will vary depending upon the reinforcing requirements and can range from 2.7 kg/m³ to 5.5 kg/m³.

1. SPECIFICATIONS of Macro Synthetic Fiber :

Raw Material :
100% Virgin Copolymer
Crack Elongation:
20+/-5%
Fiber Type :
Twist
Equivalent Dia
0.3+/-0.03mm
Melting Point(C Deg.) :
160 - 170
Density(g/cm3) :
0.91+/-0.01
Elastic Modulas(Mpa):
3500 min
Tensile Strength(MPa):
480 min.
Length:
30mm, 48mm, 54mm or as per request



2. Packing of Macro Synthetic Fiber

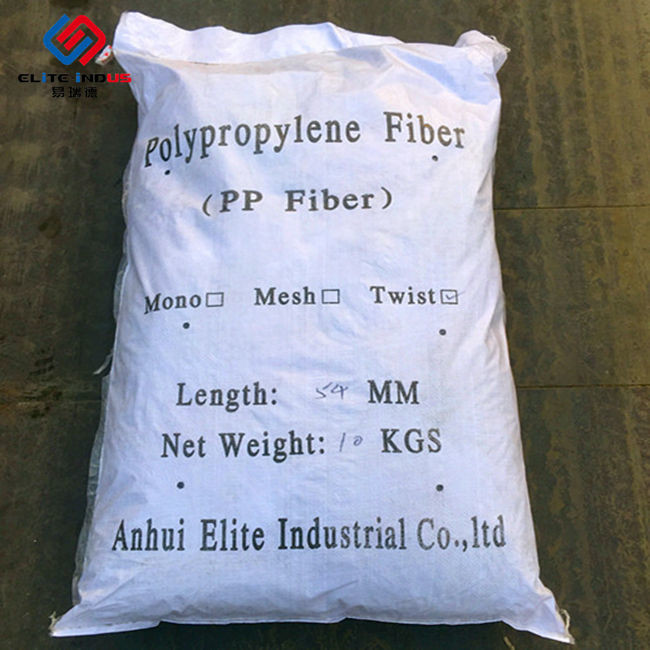

Packing 1 : 1.0kg per PE bag; 10 kgs/plastic woven bag;

                  total 5600 kgs/1x20`gp; 12000 kgs/1x40`hq

Packing 2: 0.5kg/ 1.0kg per water soluble paper bag, 10 kgs/ carton

                  total 3600 kgs/1x20`gp; 9000 kgs/1x40`hq



Delivery Time
3-15 days after deposit (we always keep inventory)
Sample Time
1-3 days after confirmation
Production Time
7-15days
Payment Methods
T/T, L/C, or as per negotiate



Eco Friendly Macro Synthetic Fibers , Plastic Fibre Reinforced Concrete 0



3. Directions of Macro Synthetic Fiber

1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg/m³ ( volume ratio is 0.3% ), reinforcement adding amount is 5.5kg/m³ , Compared with adding 47kg of steel fibre, 5.4kg macro synthetic fibre has the same volume ratio to the concrete.


2, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the macro synthetic fibre is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).


3, Mixer Adoption: Double-axle horizontal compelling mixer is priority.


4, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely Mixed.


5, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same as the normal concrete.



4. Applications of Macro Synthetic Fiber :

• Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
• Thin walled pre-cast (septic tanks, vaults, walls, etc.)
• Shotcrete for tunnel linings, pool construction and slope stabilization
• Pavements and white-toppings



Eco Friendly Macro Synthetic Fibers , Plastic Fibre Reinforced Concrete 1

5. Features & Benefits

Economy, Durable, High Tensile Strength

Compared with steel fiber, Macro synthetic fiber has the advantages of anti-corrosion and wear-resistant reducing 50% cost with same volume to steel fiber.

1. Decrease the fragility of high strength concrete;
2. Increase the quality of concrete;
3. Increase the freezing resistance of concrete;
4. Increase the impact resistance of concrete;
5. Increase the durability resistance of cncrete;
6. Increase the fire resistance of concrete.

6. Related Products

Including Macro Synthetic Fiber Wave, we we also produce:

1. Polypropylene Micro fiber monofilament, fibrillated

2. Macro synthetic fiber Twist, Wave, Hybrid

3. Polyester (PET) Fiber for Bitumen concrete

Eco Friendly Macro Synthetic Fibers , Plastic Fibre Reinforced Concrete 2
