Engineering Curved Wave Concrete Reinforcement Fiber Anti - Crack 20mm - 54mm

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,3300kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-PMFC

Detail Information

Material: Polypropylene Resin Length: 20mm 25mm 48mm 50mm 54mm Or As Your Request
Elastic Modulas: Min 4000MPa Equivalent Diameter: 0.8-1.2mm
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 450 Min. Acid &Alkali Resistance: Strong
Color: Black/White/Gray Certificate: CE/ISO
High Light:

synthetic polymer fibers

,

fibrillated polypropylene fibers

Product Description

Macro Curved Wave Concrete Reinforced Anti-Crack PP Fibres 20mm 25mm 30mm 48mm 54mm For Engineering



1, Description:



Elite Macro Synthetic Fiber of Wave Form is a patented polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers,

welded wire mesh and conventional reinforcing bars in a wide variety of applications. Our Macro Synthetic Fiber comply with ISO CE and

suitable for Concrete and Shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional

reinforcement requirements. Concrete with our Macro fiber will have three-dimensional reinforcing with enhanced flexural toughness,

impact and abrasion resistance and will also help mitigate the formation of plastic shrinkage cracking in concrete.
Dosage rates will vary depending upon the reinforcing requirements and can range from 2.0 kg/m³ to 3.0 kg/m³.



Engineering Curved Wave Concrete Reinforcement Fiber Anti - Crack 20mm - 54mm 0 Engineering Curved Wave Concrete Reinforcement Fiber Anti - Crack 20mm - 54mm 1

               PP Wave Fiber PMFC White Color                                                               PP Wave Fiber PMFC Black Color



2,Specification:



Density(g/cm3)
0.91
Elastic Modulas (MPa)
>4000
Length(mm)
48/50/54mm
Equivalent Dia(mm)
0.8-1.2
Shape
Curved/Undee /wave
Crack Ratio(%)
15 +/-5
Resistance to acid & alkali
Strong
Water absorbency
No
Tensile Strength(MPa)
≥450
Melt Point, C. Deg.
≥160

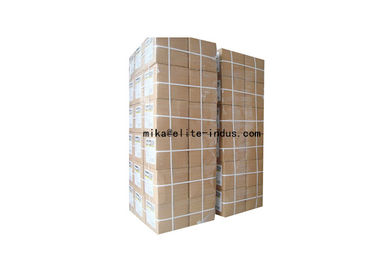

3, Packing:



1kg/PE film bag, 10kg/Plastic woven bag,3000kgs/20'gp,7500kgs/40'HQ



Engineering Curved Wave Concrete Reinforcement Fiber Anti - Crack 20mm - 54mm 2

           1kg/PE Film bag                                           10kg/Plastic Woven bag                             3300kgs/20'gp,7500kgs/40'HQ





4, Applying Instruction:



• Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
• Thin walled pre-cast (septic tanks, vaults, walls, etc.)
• Shotcrete for tunnel linings, pool construction and slope stabilization
• Pavements and white-toppings



Engineering Curved Wave Concrete Reinforcement Fiber Anti - Crack 20mm - 54mm 3



1), Recommend Adding Amount: 2.0 - 3.0kg per cubic meter of cement concrete.
2), length: Common crack-resistant usage: 48mm For spraying concrete: 20-54mm.
3), Mixing process: Same as common cement concrete
4), Package:1kgs per bag, 10kgs/plastic woven bag, 3000kgs/1x20`gp Or 7000kgs/1x40`hq without pallet.



Engineering Curved Wave Concrete Reinforcement Fiber Anti - Crack 20mm - 54mm 4



5, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





Engineering Curved Wave Concrete Reinforcement Fiber Anti - Crack 20mm - 54mm 5





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
