HDPE Resin Geocell Soil Stabilization / Geocell Hdpe 0.9mm-1.8mm Sheet Thickness
geocell road construction
,plastic geocell
Smooth / Textured / Perforated Surface HDPE Geocell Black / Green / Sand Color For Soil Stabilization
1,Product Description:

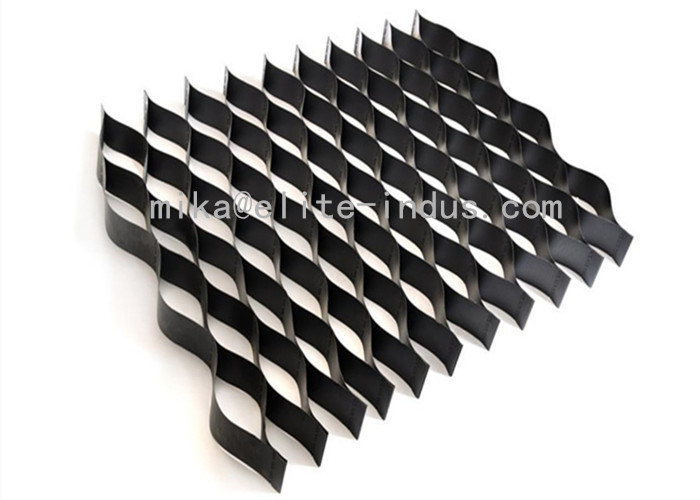

ELTcell Geocell is a lightweight and flexible three-dimensional,expandable panels made from high-density polyethylene(HDPE)
strips which are ultrasonically bonded together to form an extremely strong configuration.Geocell system can be filled with a wide
range of material: aggregate,concrete,sand,soil,etc.
ELTcell is engineered for soil stabilization applications,it is used to help improve the performance of standard Construction
materials and erosion-control treatments.
2,Main Specification
|
Item
|
Main Specification
|
|
Width Spacing
|
300mm to 1600mm
|
|
Cell Height
|
50mm to 300mm
|
|
Seam Peel Strength
|
1000N, 1100N,1200N,1420N
|
|
Color
|
Black, Green, Sand
|
|
Surface
|
Smooth/Textured/Perforated
|
3, ELTcell Advantage:
1,Virgin HDPE basic with Unique Formula.
2,Tensile Strength reaches 33000 kN/m² (33 MPa)
3,Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
4,Various weld spacing available from 220mm to 1600mm
5,Various strip height available from 25mm to maximum 300mm
6,Maximum strip length reaches 8m, expanded width reaches 6m.
7,Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
8,Easy to transport, all weather installation with high construction speed.
9,Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.
4,Production Process:
5,Specification:
|
Cell
|
Test Method
|
Units
|
Values
|
|
Cell Depth
|
-
|
mm
|
50-300(±0.5)
|
|
Weld Spacing
|
-
|
mm
|
220-1600(±1.0)
|
|
Surface
|
-
|
-
|
Smooth/Textured&Perforated
|
|
Color
|
-
|
-
|
Black/Green/Sand
|
| Property | |||
|
Material
|
-
|
|
Virgin HDPE
|
|
ESCR
|
ASTM D1603
|
hr
|
400
|
|
Density
|
ASTM D1505
|
g/cm3
|
0.945-0.960
|
|
Thickness (smooth)
|
ASTM D5199
|
mm
|
1.20 (-5% +10%)
|
|
Thickness (Textured)
|
ASTM D5199
|
mm
|
1.50 (-5% +10%)
|
|
Carbon Black
|
ASTM D1603
|
%
|
≥ 1.5
|
|
Seam Peel Strength
|
USACE GL-86-19
|
N
|
≥ 15KN/m
|
|
Tensile Strength at Break
|
ASTM D638
|
kN/m2
|
≥ 32000 (TD) / ≥ 30000 kN (MD)
|
|
Elongation at Break
|
ASTM D6693
|
|
≥ 900 (TD) / ≥ 480 (MD)
|
|
Oxidative Induction Time
|
ASTM D3895
|
min
|
≥150
|
| Long-term
Seam Peel Strength
|
Long term seam peel strength test shall be performed on all resin or pre-manufactured sheet or strips. A 100mm wide seam sample shall support a 72.5kg load for a period of 168 hours minimum in a temperature controlled environment undergoing a temperature change on a 1-hour cycle from 23ºC to 54ºC | ||
|
Standard Dimensions
|
356mm
|
445mm
|
712mm
|
|
Nominal Expanded Cell Size
|
252mmx252mm
|
315mmx315mm
|
503mmx503mm
|
|
Nominal Section Size
|
2.52mx7.3m
|
2.52mx9.12m
|
2.52mx14.6m
|
|
Nominal Section Area
|
18.37m2
|
22.96m2
|
36.74m2
|
6,Application:
7,Packing and Connector:
8, Our Company:
ANHUI ELITE INDUSTRIAL CO.,LTD
ELITE was established in 2007, has become one of the leading and professional suppliers of many kinds of Geosynthetics
(Geotextile,Geomembrane, Geogrid,Geocell, GCL,Geocomposite) in the world market.
ELITE equipements are mainly import from Germany, Italy, Cabada, France. We have one full set of precise testing instrument
and quality inspection team, technology research & Development team.
|
Geotextile
|
1, PET Non Woven Geotextile 2, PP Non Woven Geotextile |
| Geomembrane |
1, HDPE Geomembrane 2, LDPE Geomembrane 3,LLDPE Geomembrane 4, PVC Geomembrane
|
| Geogrid |
1, PP Biaixal Geogrid 2,HDPE Uniaxial Geogrid 3, Fiberglass Geogrid 4, Polyester Geogrid
|
| Geocell | Plastic HDPE Geocell |
| GCL | Geosynthetic Clay Liner |
| Geocomposite |
1, Composite geomembrane 2, Geogrid composite geotextile 3, 3D Geonent composite geotextle 4, Composite Dimple membrnae
|
-
