20-20 KN Pp Grid Plastic Geogrid For Base Subgrade Slope Embankment Reinforcement

Name: 20-20 KN Pp Grid Plastic Geogrid For Base Subgrade Slope Embankment Reinforcement
Brand: ANHUI ELITE INDUSTRIAL CO.,LTD
SKU: PPBG
Price: 0.45 USD
Availability: InStock

Specifications

Highlight:

geogrid retaining wall

,

hdpe uniaxial geogrid

Material:

Polypropylene

Tensile Strength:

10KNX10Kn To 50KNX50KN

Color:

Black

HS code:

39269090

Roll Length:

50 M, 100m

Product name:

PP Biaxial Geogrd, High Tensile Strength Biaxial Plastic Geogrid Price, Plastic Soil Stabilization Biaxial Geogrid

Roll width:

3.95m, 3.9m

Certification:

CE /ISO9001,CJ/T,ASTM,GB/T,JT/T

Tags:

envirogrid geocell

plastic geocell

Key Attributes

Brand Name: None

Model Number: PPBG

Place of Origin: China

Certification: ISO CE

Minimum Order Quantity: 5000 sq.m

Price: 0.45-0.65

Delivery Time: 10-15 working days

Payment Terms: , L/C, T/T

Standard Packaging: 5.8 * 50 m/ roll

Product Description

Polypropylene geogrid 20-20kn pp grid plastic geogrid for wall retaining projects

Elite PPBG serial product is an integrally formed structure,which especially designed for soil stabilization
and reinforcement applications.

Performance

High tensile strength at both longitudinal and transverse direction

Applications

Soft foundation reinforcing for highway, railway
Slope protecting projects
Landfill sites

Benefits

Improving bearing capacity of foundation
Preventing cracking and subsiding
Convenient to construct, reducing cost and maintaining expense

Specifications:	20-20 KN Polypropylene Geogrid
Index Properties	Test Method	Units	MD Values	TD Values

¨Polymer	-	-	PP	-
¨Minimum Carbon Black	ASTM D 4218	%	2	-
¨Tensile Strength @ 2% Strain	ASTM D 6637	kN/m	7	7
¨Tensile Strength @ 5% Strain	ASTM D 6637	kN/m	14	14
¨Ultimate Tensile Strength	ASTM D 6637	kN/m	20	20
¨Strain @ Ultimate Strength	ASTM D 6637	%	13	10
Structural Integrity

¨Junction Efficiency	GRI GG2	%	95	95
¨Flexural Rigidity	ASTM D 1388	mg-cm	1,090,000	-
¨Aperture Stability	COE Method	mm-N/deg	707	-
Dimensions

¨Aperture Dimensions	-	mm	36	38
¨Minimum Rib Thickness	ASTM D 1777	mm	1.4	1
¨Roll Width	-	m	3.95	-
¨Roll Length	-	m	50	-
¨Roll Weight	-	kg	48	-

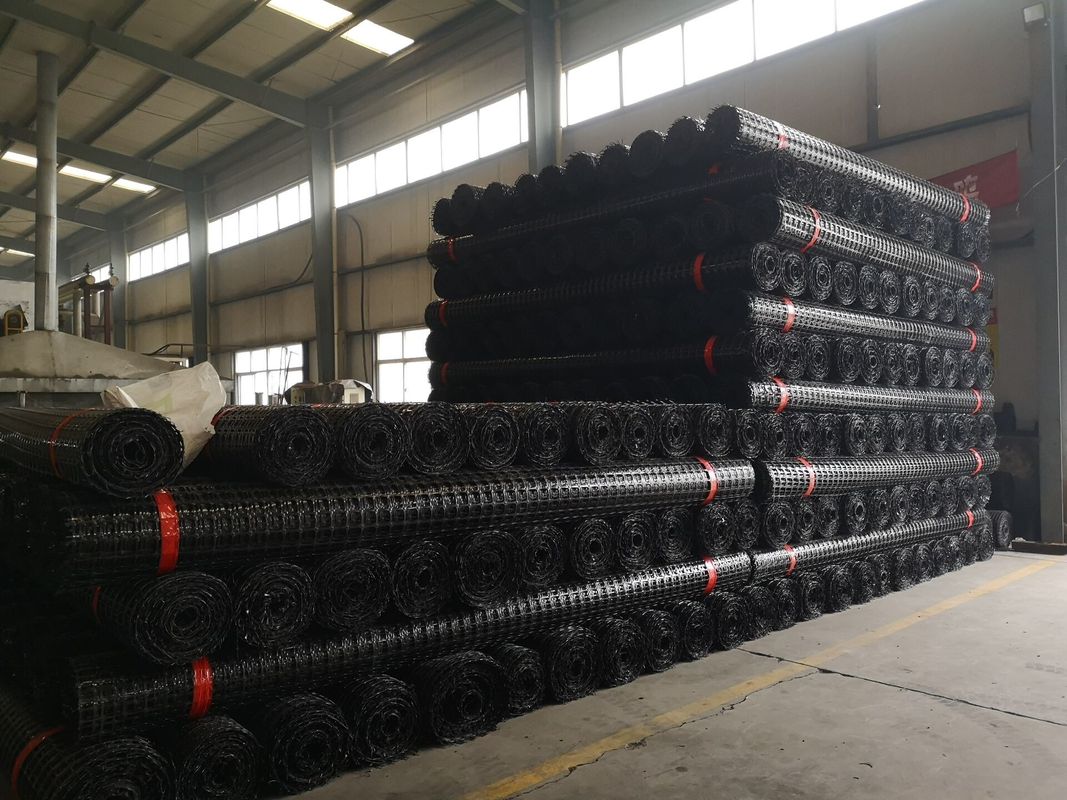

20-20 KN Pp Grid Plastic Geogrid For Base Subgrade Slope Embankment Reinforcement

Packing & Delivery

20KnX20Kn: width 3.95 m * l ength 50 m per roll, 228 rolls, 45030 M2/40'HQ

20-20 KN Pp Grid Plastic Geogrid For Base Subgrade Slope Embankment Reinforcement

Delivery Time: 3-15 days

Sample Time: 1-3 days

Payment Methord: T/T, L/C, or as per negotiate

Specification of 15-15 KN, 20-20 KN, 25-25 KN, 30-30 KN, 40-40 KN, 45-45 KN, 50-50 KN Polypropylene Geogrid:

No.	Index Properties	Test Method	15/15	20/20	25/25	30/30	40/40	45/45	50/50
1	Polymer	_	PP
2	Minimum Carbon Black %	ASTM D4218	2
3	Tensile Strength @ 2% Strain MD kN/m	ASTM D6637	5.0	7.0	9.0	10.5	14	16	17.5
3	Tensile Strength @ 2% Strain TD kN/m		5.0	7.0	9.0	10.5	14	16	17.5
4	Tensile Strength @ 5% Strain MD kN/m		7.0	14	17	21	28	32	35
4	Tensile Strength @ 5% Strain TD kN/m		7.0	14	17	21	28	32	35
5	Ultimate Tensile Strength MD kN/m		15	20	25	30	40	45	50
5	Ultimate Tensile Strength TD kN/m		15	20	25	30	40	45	50
6	Strain @ Ultimate Strength %		13
7	Junction Efficiency %	GRI GG2	95
8	Flexural Rigidity mg-cm	ASTM D7748	690, 000	1,090,000	_	3,930,000	11,480,00	_	_
9	Aperture Stability m-N/deg	COE Method	0.64	0.7	_	1.43	2.1	_	_
	Dimensions
10	Aperture Dimensions MD mm	_	36	36	34	34	34	34	34
10	Aperture Dimensions TD mm	_	38	38	36	36	35	34	36
	Aperture Dimensions TD mm	_	38	38	36	36	35	34	36
11	Minimum Rib Thickness MD mm	ASTM D1777	0.9	1.3	1.8	2.1	2.6	3.2	3
11	Minimum Rib Thickness TD mm	ASTM D1777	0.7	1	1.5	1.8	1.6	1.6	2
12	Roll Width m	_	3.95	3.95	3.95	3.95	3.95	3.95	3.95
13	Roll Length m	_	50	50	50	50	50	50	50
14	Roll Weight Kg	_	39	48	58	68	96	110	128
