Glued Hooked End Steel Fiber Used In Concrete For Shotcrete ELT-65/35

Minimum Order Quantity : 1000KGS Price : Negotiation
Packaging Details : 20kg/Bag, 1.2Ton/Pallets, total 20Pallets,24Ton/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 100000/Month
Place of Origin: ANHUI,CHINA Brand Name: ELITE-INDUS
Certification: ISO/CE Model Number: ELT-HEG

Detail Information

Material: High Quality High Speed Wire Density: 7800KG/m3
Type: Hooked End Glued Length: 35MM
Diameter: 0.55MM Draw Ratio (L/D): 65
High Light:

fibrillated polypropylene fibers


synthetic polymer fibers

Product Description

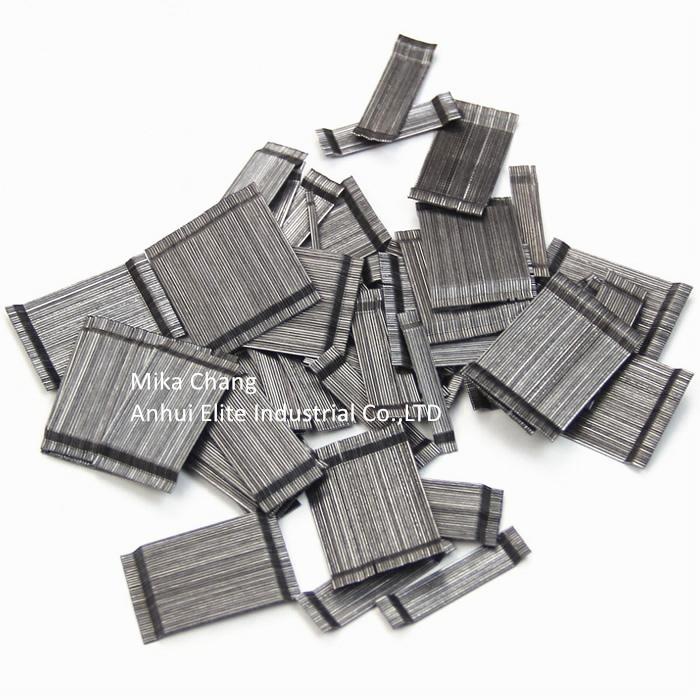

              Diameter 0.55mm Length 35mm Hooked End Glued Steel Fiber For Shotcrete ELT-65/35


1,Steel Fiber Introduction:

In the concrete mixture, add right amount steel fiber can be mixed into a kind of special jetting as well as casting concrete,

namely steel fiber reinforced concrete.compared with general concrete, steel fiber concrete has great improvement in

tensile strength, flexural strength, abrasion resistance, impact resistance, fatigue resistance, toughness, crack resistanceand

antiknock performance, because large number of very minute steel fiber is evenly dispersed in the concrete and has a

large contact area with concrete,therefore,concrete strength is improved in all directions and the variousperformances

of concrete are greatly improved.

Glued Hooked End Steel Fiber Used In Concrete For Shotcrete ELT-65/35 0


2,Steel Fiber Standard:

Conforming to the provisions of ASTM A820.Type 1 (Drawn Wire)


Glued Hooked End Steel Fiber Used In Concrete For Shotcrete ELT-65/35 1

3,Steel Fiber Functions:

(1) greatly improve concrete bonding and tensile strength
(2) improve mechanical performance concrete
(3) prevent the damage to the concrete
(4) decrease the danger from crack of the concrete
(5) provide exceptional load stability and durability

4,Steel Fiber Advantages:

(1)very suitable for high temperature firebrick
(2)high intensity
(3)high anti-bending
(4)high solid riveting force
(6)good comprehensive effect



Glued Hooked End Steel Fiber Used In Concrete For Shotcrete ELT-65/35 2


Steel Fiber Dosage: 25kg-70kg/m3









Draw Ratio


Tensile Strength


Kilograms Per

Cubic Meter

ELT 70/55 55 0.8 70 ≥1000 4400
ELT 80/60 60 0.75 80 ≥1000 4600
ELT 50/38 38 0.75 50 ≥1000 7300
ELT 45/35 35 0.75 45 ≥1000 7900
ELT 45/30 30 0.65 45 ≥1000 12500
ELT 100/60 60 0.62 100 ≥1000 6800
ELT 80/50 50 0.62 80 ≥1000 8100
ELT 55/35 35 0.62 55 ≥1000 11800
ELT 50/30 30 0.62 50 ≥1000 13500
ELT 65/35 35 0.55 65 ≥1000 14500


6, Typical Application

It is a kind of special metal steel fibre, has high compressive strength, tensile strength,crack resistance

and is widely used in high iron casting, RPC cover plate, important projects components and external rendering.


It can also greatly improve anti-tensile,
anti-compressive, anti-shear intensity, impermeability, impact resistance and fatigue
resistance, etc.


Glued Hooked End Steel Fiber Used In Concrete For Shotcrete ELT-65/35 3


7, Our Company:


Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds

of Concrete additivein the world market.


Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported

to more than 30 countries, Such as USA,Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.


Our Product was made by 100% Virgin Material with advanced equipment , we have one full set of precise testing instrument,

testing equipment andquality inspection team, technology research and development team. the management system was

certified by ISO9001 and our products have been passed the CE Certification.


Our Mainly Product and Production Capacity as below:


Main Item
Polypropylene Fiber (PP Fiber)
Polyester Fiber (PET Fiber)
Polyvinyl Alcohol Fiber ( PVA Fiber)
Polyacrylonitrile Fiber (PAN Fiber)
Naphthalene Formaldehyde Sulphonate
Polycarboxylate Superplasticizer (Flake/Powder/Liquid)
Foam Agent


8, Related Product:

Glued Hooked End Steel Fiber Used In Concrete For Shotcrete ELT-65/35 4
