54MM Twisted Bundle Engineering PP Concrete Reinforcement Fiber

Minimum Order Quantity : 1000kgs Price : FOB Qingdao Port,China
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12000KG/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: Elt-Twist

Detail Information

Material: PP Length: 48MM 54MM
Elastic Modulas: Min 3500MPa Equivalent Diameter: 0.3+/-0.03mm
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 500MPA To 800Mpa Color: Gray/black/white
Use: Concrete Reinforcement
High Light:

54MM pp twist fiber

,

PP Twist Concrete reinforcement fiber

,

Twisted Bundle Concrete reinforcement fiber

Product Description

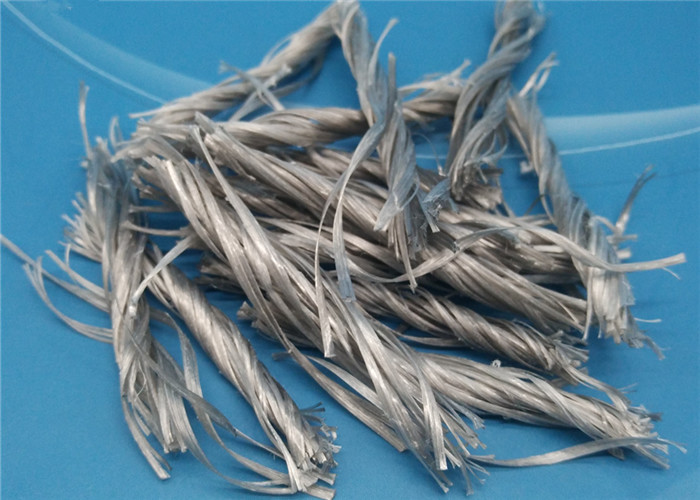

                                           54MM Twisted Bundle PP Twist Fibre for engineering



1, Description:



EltFiber-Twist can be used to instead of steel fibre for reinforcement to cement concrete.
Compared with steel fibre, it has the advantage of easy dispersing and blending, no damage to the mixing equipments, etc

The rigid polymer fibre is used polypropylene as its raw material, produced the rough surface Treatment by special parallel thread

extruding & twisting process. It has high break strength, better dispersion and strong combining ability, will be widely used to

instead of steel fibre to reinforce the cement concrete and crack resistant.



ELT-TWIST is a 100% virgin blended copolymer synthetic Structural macro-fiber successfully used as an alternate to steel fibers, welded wire

mesh and conventional reinforcing bars in a wide variety of secondary reinforcement applications.

ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.

A twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.



2, Production Process



54MM Twisted Bundle Engineering PP Concrete Reinforcement Fiber 0



3, Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
PP
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>3500
Resistance to acid & alkali
strong



4, Packing:



54MM Twisted Bundle Engineering PP Concrete Reinforcement Fiber 1



5, Applying Instruction:



1, Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.


2, Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm


3, Matching Ratio:


Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.



5, Mixing process:

Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add

cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be

properly prolonged to make fiber completely Mixed.



6, Shaping & Maintenance


There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



6, CERTIFICATE:



54MM Twisted Bundle Engineering PP Concrete Reinforcement Fiber 3





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
