quality 24mm PP Monofilament Similar Concrete Reinforcement Fiber factory

<

>

24mm PP Monofilament Similar Concrete Reinforcement Fiber

Name: 24mm PP Monofilament Similar Concrete Reinforcement Fiber
Brand: ANHUI ELITE INDUSTRIAL CO.,LTD
SKU: EltFiber-PPMF
Availability: InStock

Specifications

Highlight:

PP monofilament Concrete Reinforcement Fiber

,

24mm Concrete Reinforcement Fiber

,

24mm PP monofilament

Material:

PP

Length:

6mm 10mm 12mm 18mm 20mm 24mm

Crack Elongation::

20+/-5%

Fiber Diameter:

18+/-2um

Melting Point(C Deg.):

160 - 170

Density(g/cm3):

0.91+/-0.01

Tensile Strength(MPa):

460 Min.

Shape:

Monofilament

Packing:

PE Film Bag Or Water Soluble Paper Bag

Type:

Microfiber

Tags:

fibrillated polypropylene fibers

synthetic polymer fibers

macro synthetic fibers

Key Attributes

Brand Name: ELITE-INDUE

Model Number: EltFiber-PPMF

Place of Origin: Anhui

Certification: CE ISO

Minimum Order Quantity: 1000kgs

Price: Negotiation

Supply Ability: 10000TON PER YEARS

Delivery Time: Within 15days after order confirmation

Payment Terms: L/C, D/A, D/P, T/T, ,

Standard Packaging: 1kg/PE film bag, 20kg/Plastic Woven bag,9000kgs/20'gp

Product Description

PP Fiber Microfiber Monofilament Similar To FORTA-FERRO

1, Description:

ELT-Mono fiber Made by 100% virgin homopolymer polypropylene multifilament (monofilament) fibers was produced by our

patent advanced technology for fiber spinning, modified by adding functional additive and special surface-treating. Mixing into

cement concrete, it has many advantages such as good dispersing,better water affinity, strong linking force. It is suited to reinforce

and crack-resist to every kinds of cement concrete and mortar, specially used in engineering of building surface, floor, wall etc…..

ELT-Mono is a monofilament polypropylene microfiber for concrete reinforcement that complies with ASTM C 1116, Standard

Specification for Fiber Reinforced Concrete and Shotcrete, and is specifically designed to help mitigate the formation of plastic

shrinkage cracking in concrete. Typically used at a dosage rate of 0.6kg/m3 to 1.8kg/m3.

24mm PP Monofilament Similar Concrete Reinforcement Fiber

2, PP Fiber Monofilament Functions And Advantages

Functions		Advantages
Increase freezing & thawing resistance		Cost effective
Improve tendons protection		Replaces anti crack mesh reinforcement
Resist to shrink & crack		Decreases construction time and labor
Increase seepage resistance		Inhibits intrinsic cracking in concrete
Increase friction resistance		Do not rust
Replace steel net (using in plastering)		Disperses uniformly throughout the mix
Prevent mortar split and crackle expansion		Explosive spall control

3, Applications:

A). suit for the waterproof layer, floor, inner & outer wall of industrial and civil construction.

B). Increase cracking resistance on the surface of industrial workshop, warehouse and parking lot.

C). Increase cracking & seepage resistance of the ground in natatorium, swimming pool, pond and ditch.

D). Suit for any mortar projects and common concrete projects.

E). Highway, bridge and other roads.

24mm PP Monofilament Similar Concrete Reinforcement Fiber

4, Applying Instruction:

A). Dosage: for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement mortar Is enough,

and for increasing reinforce and seepage resist application 1.8kg/m3 is enough.

B). Stirring requirement: The proportion of cement, sand and aggregate is no need to be changed.

Put cement, aggregate, additive and fiber together, then stir after adding enough water

and time for stirring can be prolonged for 2~3 minutes in order to make the compound mix completely.

Also it can be mixed with cement and other aggregates in advance, stirring by adding water at worksite before construction.

5, Brief specification:

Compliance

ASTM C1116, Type III

BS EN 14889 - 2

1), Normal Type MicroFiber Monofilament PPMF-A

Raw Material	Polypropylene	Crack Elongation	20+/-5%
Fiber Type	Monofilament PPMF-A	Fiber Diameter	20-30um
Melting Point ( C Deg.)	160 - 170	Density (g/cm3)	0.91+/-0.01
Acid &Alkali Resistance	Strong	Tensile Strength (MPa)	450 min.
Length	Times of 4mm or 6mm	Water absorbency	NO
Normal Length	4mm, 6mm, 8mm, 12mm,18mm, 24mm, 30mm etc... (times of 4mm or 6mm with 1mm more or less )

2),Special Type MicroFiber Monofilament

A, MicroFiber Monofilament PPMF-B: High Tensile Strength -----------600MPa Min

B, MicroFiber Monofilament PPMF-C: Superfine---------------------------20+/-2um Dia

C, MicroFiber Monofilament PPMF-D: High dispersion------------------Special Surface-Treating

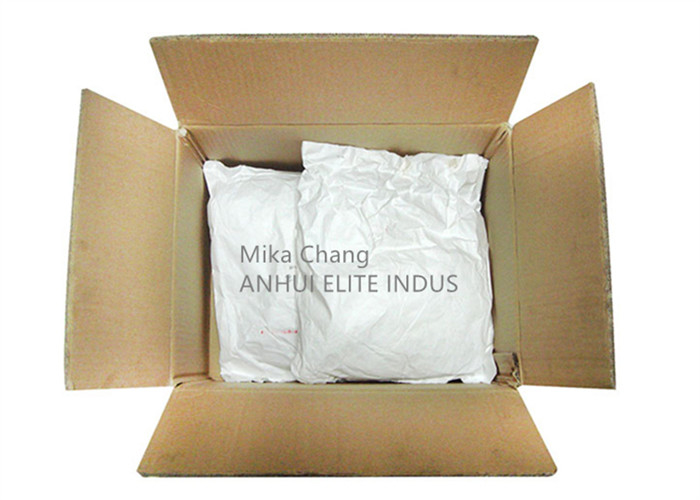

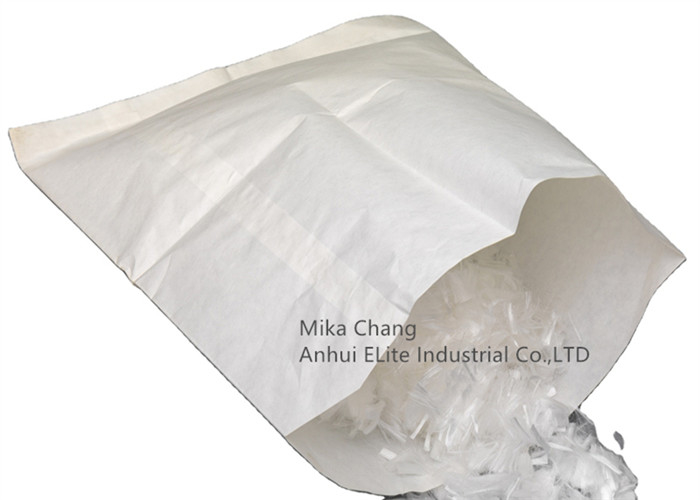

6, Packing:

24mm PP Monofilament Similar Concrete Reinforcement Fiber

PP Fiber Shape	Inner Packing (PE film bag)	Outer Packing (Plastic Woven bag)	20’gp	40’HQ
Monofilament	0.6/0.9/1.0 kg	18/20kg	10000kg	20000kg
Fibrillated	0.6/0.9/1.0 kg	12/18kg	5500kg	12000kg
Twist/Hybrid	0.5/1.0kg	10kg	5500kg	12000kg
Wave	1.0kg	10kg	3000kg	7500kg
	Inner Packing (water Soluble paper bag)	Outer Packing (Carton)
Monofilament	0.6/0.9/1.0 kg	18/20kg	8000kg	16000kg
Fibrillated	0.6/1.0 kg	12kg	4800kg	9000kg
Twist/Hybrid	0.5/1.0kg	10kg	4000kg	8500kg
