20mm FIBERMESH 150 Polypropylene Synthetic Monofilament Fiber For Concrete

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 20kg/Plastic Woven bag,9000kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-PPMF

Detail Information

Material: 100% Virgin Polypropylene Length: 6mm 10mm 12mm 18mm 20mm 24mm
Crack Elongation:: 20+/-5% Fiber Diameter: 18+/-2um
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 460 Min. Shape: Monofilament
Type: Micro Fiber
High Light:

20mm monofilament fiber

,

20mm polypropylene synthetic fiber

,

polypropylene synthetic monofilament fiber

Product Description

                              Polypropylene Microsynthetic Fiber Monofilament Similar to SIKA FIBERMESH 150

1, Description:



ELT-Mono is a monofilament polypropylene microfiber for concrete reinforcement that complies with ASTM C 1116, Standard

Specification for Fiber Reinforced Concrete and Shotcrete, and is specifically designed to help mitigate the formation of plastic

shrinkage cracking in concrete. Typically used at a dosage rate of 0.6kg/m3 to 1.8kg/m3.



ELT-Mono fiber Made by 100% virgin homopolymer polypropylene multifilament (monofilament) fibers was produced by our

patent advanced technology for fiber spinning, modified by adding functional additive and special surface-treating.

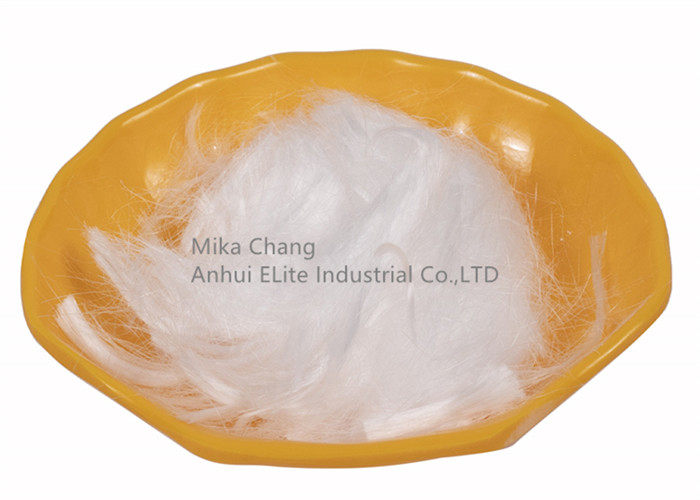

20mm  FIBERMESH 150 Polypropylene Synthetic Monofilament Fiber For Concrete 0


2, PP Fiber Monofilament Functions And Advantages

Functions
Advantages

Increase freezing & thawing resistance
Cost effective
Improve tendons protection
Replaces anti crack mesh reinforcement
Resist to shrink & crack
Decreases construction time and labor
Increase seepage resistance
Inhibits intrinsic cracking in concrete
Increase friction resistance
Do not rust
Replace steel net (using in plastering)
Disperses uniformly throughout the mix
Prevent mortar split and crackle expansion
Explosive spall control



3, Applications:



A). suit for the waterproof layer, floor, inner & outer wall of industrial and civil construction.

B). Increase cracking resistance on the surface of industrial workshop, warehouse and parking lot.

C). Increase cracking & seepage resistance of the ground in natatorium, swimming pool, pond and ditch.

D). Suit for any mortar projects and common concrete projects.

E). Highway, bridge and other roads.

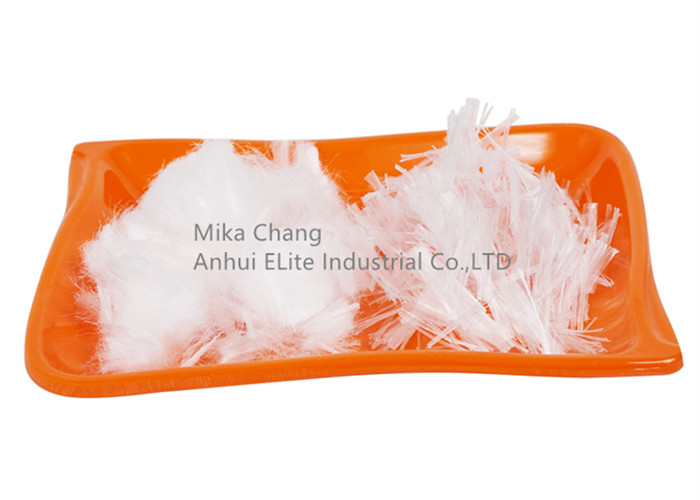

20mm  FIBERMESH 150 Polypropylene Synthetic Monofilament Fiber For Concrete 1



4, Applying Instruction:



A). Dosage: for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement mortar Is enough,

                    and for increasing reinforce and seepage resist application 1.8kg/m3 is enough.



B). Stirring requirement: The proportion of cement, sand and aggregate is no need to be changed.

                                        Put cement, aggregate, additive and fiber together, then stir after adding enough water

                                        and time for stirring can be prolonged for 2~3 minutes in order to make the compound mix completely.



      Also it can be mixed with cement and other aggregates in advance, stirring by adding water at worksite before construction.



5, Brief specification:



Compliance

ASTM C1116, Type III

BS EN 14889 - 2



1), Normal Type MicroFiber Monofilament PPMF-A





Raw Material

Polypropylene Crack Elongation 20+/-5%



Fiber Type

Monofilament PPMF-A Fiber Diameter 20-30um



Melting Point ( C Deg.)

160 - 170 Density (g/cm3)  0.91+/-0.01



Acid &Alkali Resistance

Strong Tensile Strength (MPa) 450 min.



Length

Times of 4mm or 6mm Water absorbency  NO
Normal Length



4mm, 6mm, 8mm, 12mm,18mm, 24mm, 30mm etc...

(times of 4mm or 6mm with 1mm more or less )



2),Special Type MicroFiber Monofilament



A, MicroFiber Monofilament PPMF-B: High Tensile Strength -----------600MPa Min

B, MicroFiber Monofilament PPMF-C: Superfine---------------------------20+/-2um Dia

C, MicroFiber Monofilament PPMF-D: High dispersion------------------Special Surface-Treating

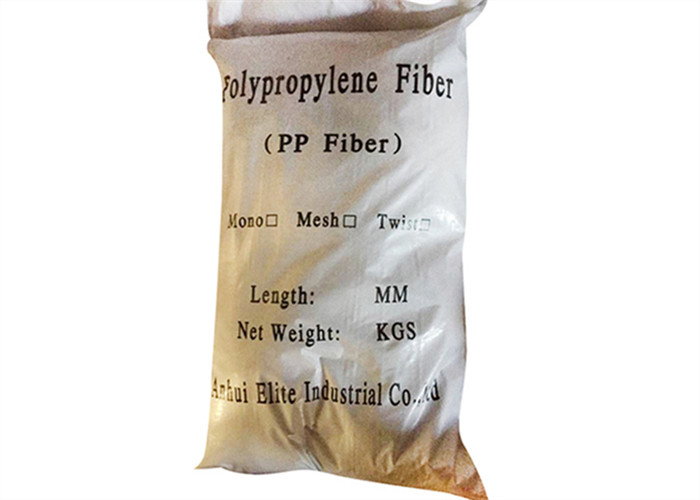

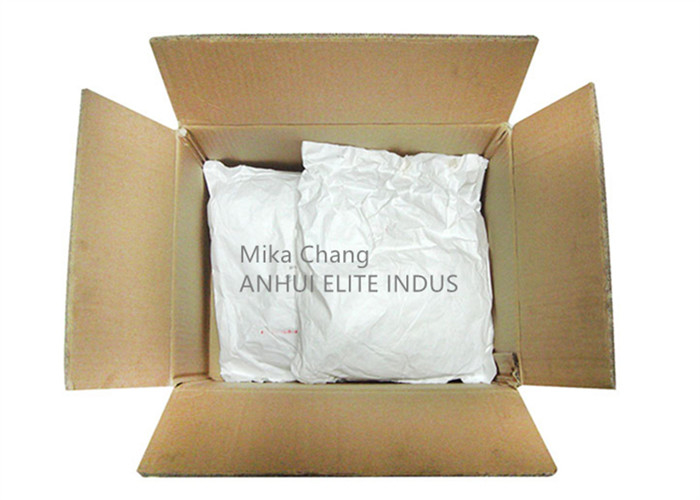

6, Packing:

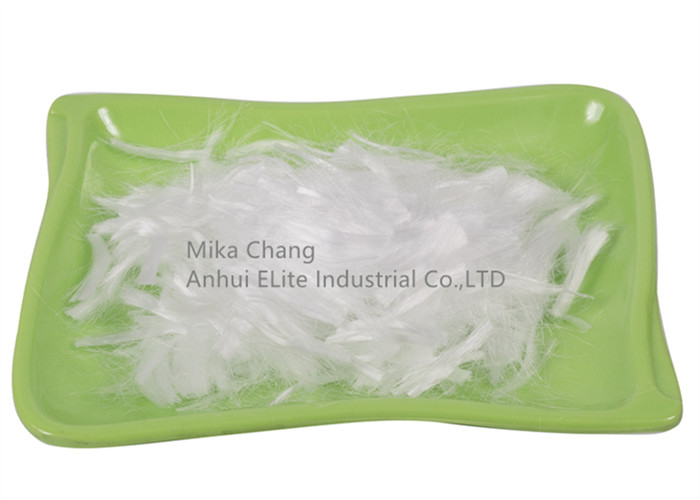

20mm  FIBERMESH 150 Polypropylene Synthetic Monofilament Fiber For Concrete 2
