quality Virgin Blended Copolymer Structural Macro Synthetic Fiber For Toppings factory

<

>

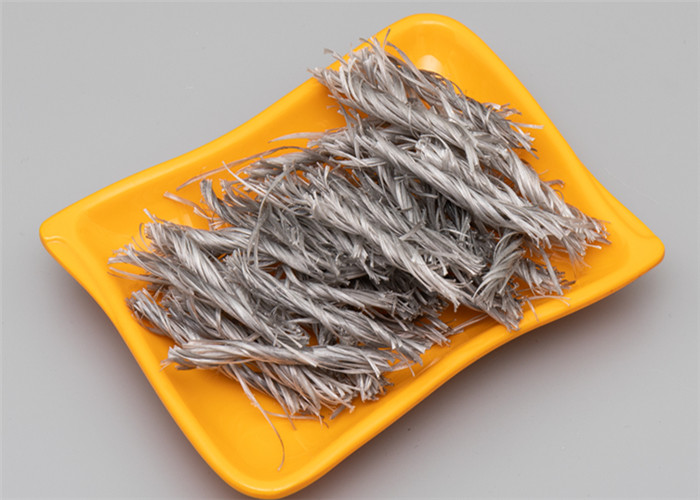

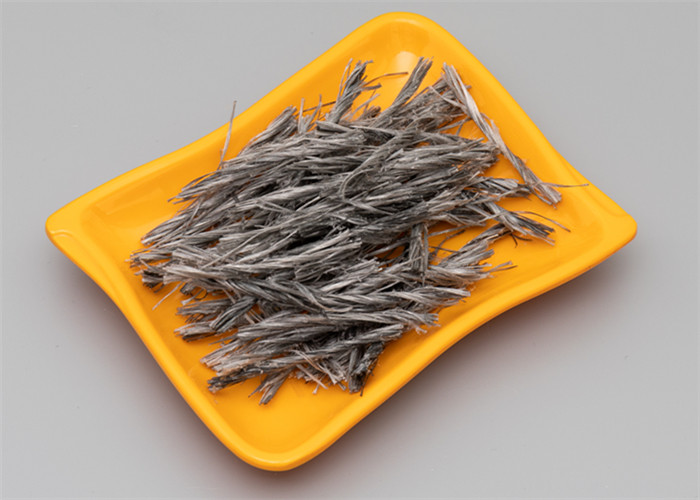

Virgin Blended Copolymer Structural Macro Synthetic Fiber For Toppings

Name: Virgin Blended Copolymer Structural Macro Synthetic Fiber For Toppings
Brand: ANHUI ELITE INDUSTRIAL CO.,LTD
SKU: Elt-Twist
Availability: InStock

Specifications

Highlight:

Copolymer macro synthetic fiber

,

Virgin Blended macro synthetic fiber

,

800Mpa macro synthetic fiber reinforced concrete

Material:

Virgin Blended Copolymer

Length:

54MM

Elastic Modulas:

Min 4700MPa

Equivalent Diameter:

0.3+/-0.03mm

Melting Point(C Deg.):

160 - 170

Density(g/cm3):

0.91+/-0.01

Tensile Strength(MPa):

550MPA To 800Mpa

Use:

Slabs-on-Grade And Toppings

HS CODE:

5503400000

Tags:

fibrillated polypropylene fibers

macro synthetic fibers

Key Attributes

Brand Name: ELITE-INDUE

Model Number: Elt-Twist

Place of Origin: Anhui

Certification: CE ISO

Minimum Order Quantity: 1000kgs

Price: FOB Qingdao Port，China

Supply Ability: 10000TON PER YEARS

Delivery Time: Within 15days after order confirmation

Payment Terms: L/C, D/A, D/P, T/T, ,

Standard Packaging: 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'gp

Product Description

100% virgin blended copolymer Structural Synthetic Macro Fiber for Slabs-on-Grade and Toppings

1, Description:

ELT-Twist IS 100% virgin blended copolymer Structural Synthetic Macro Fiber for Slabs-on-Grade and Toppings

ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.A twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.

ELT-TWIST fibers comply with ASTM C1116, Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used for the reduction of plastic shrinkage cracks, to improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term durability of concrete, structural enhancements and cement based building products.

Virgin Blended Copolymer Structural Macro Synthetic Fiber For Toppings

2, Production Process

3, Specification:

Density(g/cm3)	0.91 +/- 0.01	Raw material	PP
Length(mm)	48mm,54mm	Equivalent Dia(mm)	0.3±0.03
Shape	twist	break tensile Ratio(%)	8-15
Crack Ratio	20+/-5 %	Melting point ( C. Deg)	160-170
Tensile Strength	>500 MPa	Water absorbency	NO
Elastic Modulus (mPa)	>3500	Resistance to acid & alkali	strong

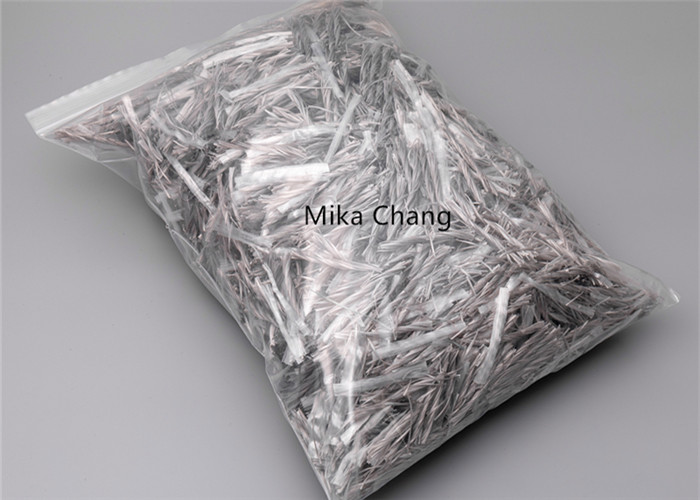

4, Packing:

5, Applying Instruction:

1, Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.

2, Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm

3, Matching Ratio:

Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.

5, Mixing process:

Doses of synthetic macro fibers varies between 2,5 kg/m3 and 5 kg/m3 depending on engineering requirements of the projects. Homogeneous mixture is obtained by adding the fibers to the aggregate band at the batching plant or mixing at the site to the truck. It is recommended to to add fibers after plasticizer additives and mix for at least 4 to 5 min. at high speed

6, Shaping & Maintenance

There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete

6, CERTIFICATE:

Virgin Blended Copolymer Structural Macro Synthetic Fiber For Toppings

Our Mainly Product and Production Capacity as below:

Main Item		Capacity/Annual
Polypropylene Fiber (PP Fiber)		15000mts
Polyester Fiber(PET Fiber)		6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)		30000mts
Polyacrylonitrile Fiber(PAN Fiber)		6000mts
Naphthalene Formaldehyde Sulphonate		300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)		150000mts
Foam Agent		30000mts
