ASTM C1116 Blended Copolymer Macro Twist Polypropylene Fiber

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 5kgs/water soluble paper carton, total 1200-1300kg/pallet, 12800kg/20'GP, 25800kg/40'GP Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: Elt-Embossed

Detail Information

Material: Virgin Blended Copolymer Length: 48mm 55mm 65mm
Elastic Modulas: 9000MPa-10000MPA Equivalent Diameter: 0.8mm+/-0.2
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 500-800Mpa Acid &Alkali Resistance: Excellent
Color: White/GRAY/Transparent Standard: ASTM C1116
High Light:

ASTM C1116 twist polypropylene fiber

,

blended copolymer twist polypropylene fiber

,

ASTM C1116 blended copolymer fiber

Product Description

                          Structural Macro Synthetic Fiber Embossed Comply With ASTM C1116



1, Description:



ELT-EMBOSSED is a Structural macro synthetic fiber engineered for use as an alternate to steel fibers and welded wire mesh for precast concrete

and shotcrete reinforcement applications.

ASTM C1116 Blended Copolymer Macro Twist Polypropylene Fiber 0



ELT-EMBOSSED fibers comply with ASTM C1116, Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used

to improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term durability

of concrete and cement based building products. Dosage rates will vary depending upon the reinforcing requirements and can range typically from 2 to 6kg/m³.



ELT-EMBOSSED synthetic macro-fibers comply with applicable portions of the International Code Council (ICC) Acceptance Criteria AC32 for synthetic

fibers and can save time and money on construction projects by eliminating the purchase, storage, handling, cutting, placing and waste of welded wire

mesh. These fibers are chemically inert and will not corrode.







2,Specification:

Raw Material Virgin grade polypropylene Tensile Strength(MPa): 550 min.
Water Absorbency: No Density(g/cm3) : 0.91+/-0.01
Melting Point(C Deg.) 160 - 170 Elastic Modulas(Mpa): 9000 min
Acid & Alkali Resistance Excellent Equivalent Diameter 0.8mm
Moisture Content 0.0% Fiber Type Embossed
Color White, Black, Gray,Natural
Length: 30mm,48mm, 55mm, 60mm,65mm or as per request
Tandard Dosage 2kg/m3 to 6kg/m3

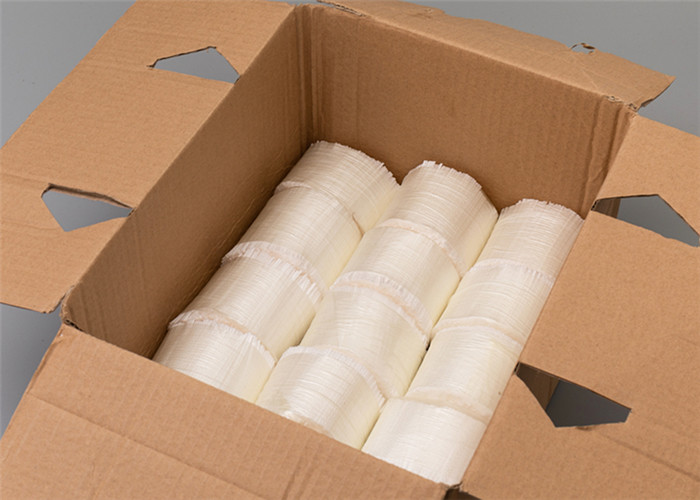

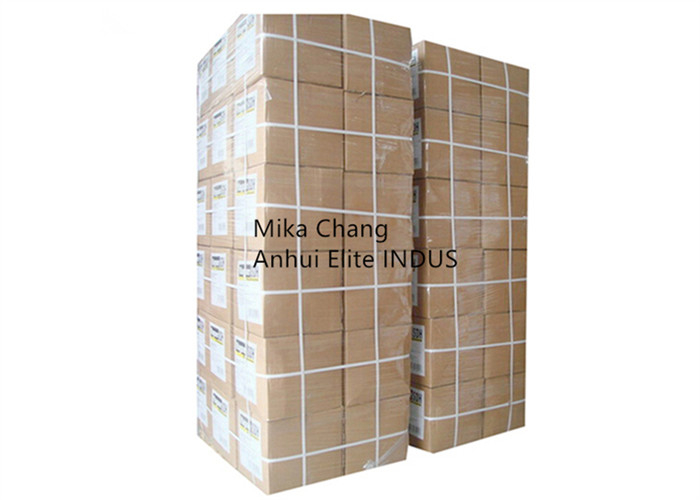

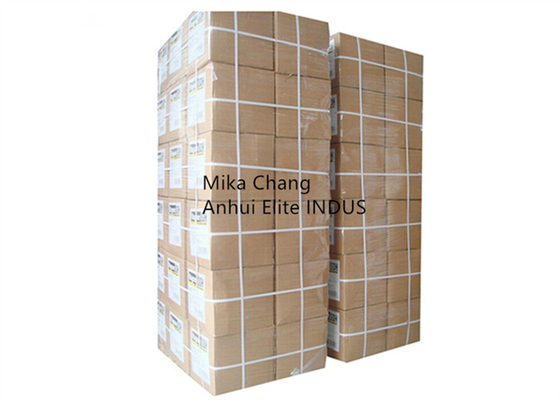

3, Packing & Delivery:



Packing: 120-140g/ water soluble film bundle, 5kgs/water soluble paper carton
total 1200-1300kg/pallet, 12800kg/20’ container, 25800kg/40’ container



Delivery Time 3-15 days after deposit (we always keep inventory)
Sample Time 1-3 days after confirmation
Production Time 7-15days
Payment Methods T/T, L/C, or as per negotiate


Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



4. Features & Benefits

Economy, Durable, High Tensile Strength

Compared with steel fiber, our fiber has the advantages of anti-corrosion and wear-resistant reducing 50% cost with same volume to steel fiber.
1), Equivalent strengths to WWM and rebar provided by engineering calculations;
2),
Controls and mitigates plastic shrinkage cracking and reduces segregation and bleed-water;
3), Provides three-dimensional reinforcement against micro and macro-cracking;
4), Reduces equipment wear, fiber rebound and increases build-up thickness compared to steel fibers for shotcrete applications;
5), Increases overall durability, fatigue resistance and flexural toughness;
6), Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control;
7), Easily added to concrete mixture at any time prior to placement;
8), Tested in accordance with ASTM C 1116, EN14889-2.



5, Application:

ASTM C1116 Blended Copolymer Macro Twist Polypropylene Fiber 2



■ Industrial and Warehouse Floors
■ Residential and commercial Slab on grade
■ Driveways and side walks
■ Replacement for welded wire fabric (WWF)
■ Composite metal decks and parking structures
■ Septic tanks,manholes and burial vaults
■ Precast elements
■ Shotcrete applications


Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



6, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





ASTM C1116 Blended Copolymer Macro Twist Polypropylene Fiber 4





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
