EN14845 Structural Embossed Macro Synthetic Fiber Fiber

China ANHUI ELITE INDUSTRIAL CO.,LTD certification
China ANHUI ELITE INDUSTRIAL CO.,LTD certification
I'm Online Chat Now

EN14845 Structural Embossed Macro Synthetic Fiber Fiber

EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber
EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber

Large Image :  EN14845 Structural Embossed Macro Synthetic Fiber Fiber

Product Details:
Place of Origin: Anhui
Brand Name: ELITE-INDUE
Certification: CE ISO
Model Number: EltFiber-Embossed
Payment & Shipping Terms:
Minimum Order Quantity: 1000kgs
Price: Negotiation
Packaging Details: 5kgs/water soluble paper carton, total 1200-1300kg/pallet, 12800kg/20'GP, 25800kg/40'GP
Delivery Time: Within 15days after order confirmation
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 10000TON PER YEARS
Detailed Product Description
Material: Virgin Grade Polymer Polypropylene Length: 48mm 55mm 65mm
Elastic Modulas: 10000MPa Equivalent Diameter: 0.8mm+/-0.2mm
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 550MPA To 700Mpaa Thickness: 0.55mm-0.6mm
Width: 1.3mm-1.4mm Dosage: 2kg/m3 To 6kg/m3
Color: White, Black, Gray,Natural
High Light:

EN14845 Embossed Macro Synthetic

,

65mm Macro Synthetic Fiber

,

65mm Embossed Synthetic Fiber

Macro Fiber Synthetic Fiber Concrete Fiber Engineering Fiber PP Fiber Embossed Form

1, Description:



Elite Macro Synthetic Fiber of Embossed Form is a patented polypropylene/polyethylene macro synthetic fiber successfully used

to replace steel fibers, welded wire mesh and conventional reinforcing bars in a wide variety of applications.



Our Macro Synthetic Fiber comply with ISO CE and suitable for Concrete and Shotcrete, and are specifically used to provide

equivalent tensile and bending resistance to conventional reinforcement requirements.



Elite Macro Synthetic Fiber of Embossed Form is macro synthetic reinforcing fiber complying with ASTM–C1116 and carries CE Mark,

Type III and EN 14889-2: 2006 Polymer Fibers - Definitions, specifications and conformity.

ELT-EMBOSSED is a Structural macro synthetic fiber engineered for use as an alternate to steel fibers and welded wire mesh for

precast concrete and shotcrete reinforcement applications.



EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber 0



2,Specification:



Raw Material Virgin grade polymer polypropylene Tensile Strength(MPa): 550Min
Water Absorbency: No Density(g/cm3) : 0.91+/-0.01
Melting Point(C Deg.) 160 - 170 Elastic Modulas(Mpa): 9000 min
Acid & Alkali Resistance Excellent Equivalent Diameter 0.8mm+/-0.2mm
Thickness 0.55mm-0.6mm Width 1.3mm-1.4mm
Moisture Content 0.0% Fiber Type Embossed
Color White, Black, Gray,Natural
Length: 30mm,47mm,48mm,50mm, 54mm,55mm, 60mm,65mm or as per request
Tandard Dosage 2kg/m3 to 6kg/m3

3, Packing & Delivery:

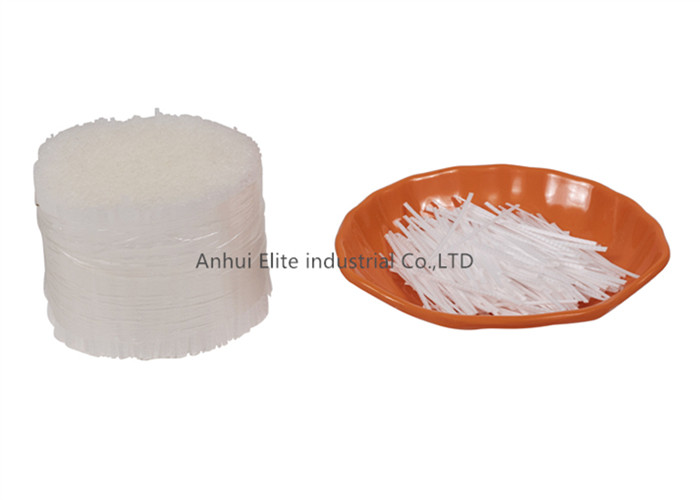

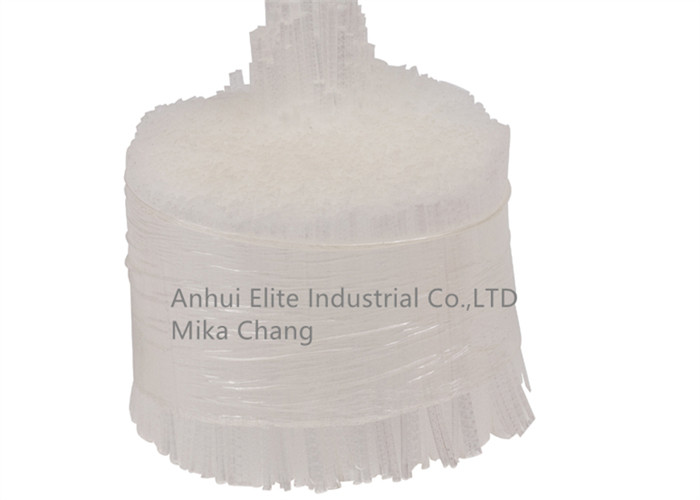

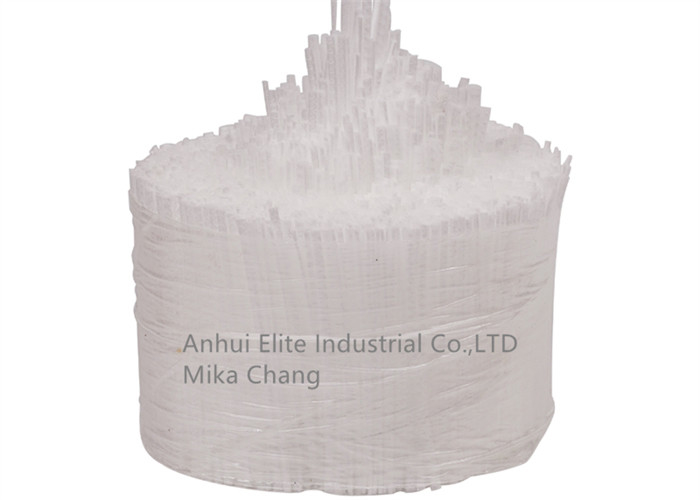

Packing: 120-140g/ water soluble film bundle, 5kgs/water soluble paper carton
total 1200-1300kg/pallet, 12800kg/20’ container, 25800kg/40’ container

EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber 1



4, Application:



■ Industrial and Warehouse Floors
■ Residential and commercial Slab on grade
■ Driveways and side walks
■ Replacement for welded wire fabric (WWF)
■ Composite metal decks and parking structures
■ Septic tanks,manholes and burial vaults
■ Precast elements
■ Shotcrete applications


EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber 2



5, Certificate:



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





EN14845 Structural  Embossed Macro Synthetic  Fiber Fiber 3
