Structural Polymer Twisted Bundle Concrete Reinforcement Fiber
Twisted Bundle Concrete Reinforcement Fiber
,Twisted Bundle PP Fiber
,Twisted Bundle Polypropylene Fiber

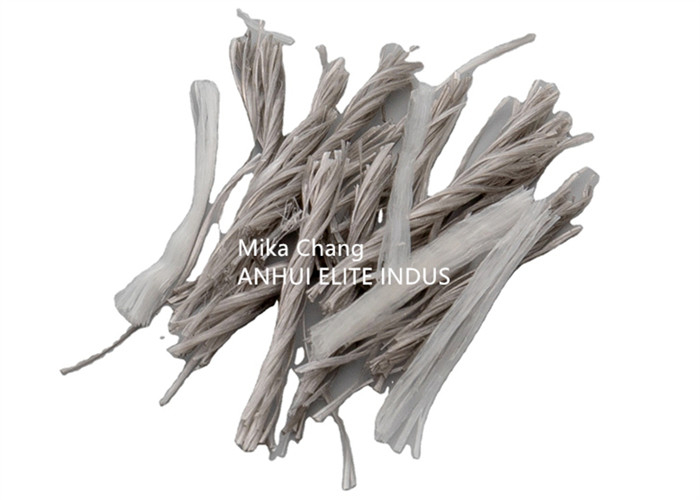

Polypropylene Macro Synthetic Fibre Structural Polymer Fiber Twisted Bundle Bunchy Form
1, Description:
ELT-TWIST polypropylene plastic fiber is made from raw material of 100% modified polypropylene via special processes,with Twisted Bundle
Bunchy Form, As an enhancing fiber for concrete dedicated to highway,railway,tunnel and culvert,its most distinctive features are high strength,
high modulus,low elongation and no pollution,able to replace the steel fiber for anti-crack and enhancing treatment of cement concrete.
ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.
B twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.
PMFT-A: 100% Twist Fiber PMFT-B: Hybrid(PP Twist Fiber Mix with PP Fibrillated Fiber)
2,Functions
· Increases impact, shatter and abrasion resistance of concrete
· Reduces segregation, plastic settlement, and shrinkage cracking of concrete
· Provides three-dimensional reinforcement against macro-cracking
· Increases overall durability, fatigue resistance and flexural toughness
· Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control
· Easily added to concrete mixture at any time prior to placement
3,Specification:
|
Density(g/cm3)
|
0.91 +/- 0.01
|
Raw material
|
Virgin Copolymer/Polypropylene
|
|
Length(mm)
|
48mm,54mm
|
Equivalent Dia(mm)
|
0.3±0.03
|
|
Shape
|
twist
|
break tensile Ratio(%)
|
8-15
|
|
Crack Ratio
|
20+/-5 %
|
Melting point ( C. Deg)
|
160-170
|
|
Tensile Strength
|
>550 MPa
|
Water absorbency
|
NO
|
|
Elastic Modulus (mPa)
|
>5500
|
Resistance to acid & alkali
|
strong
|

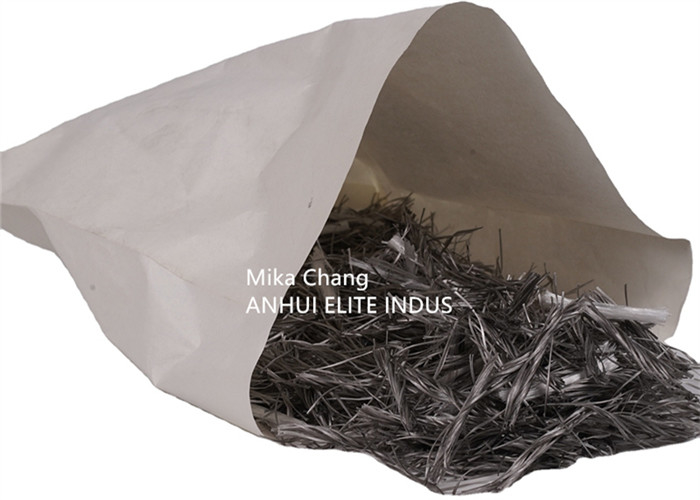

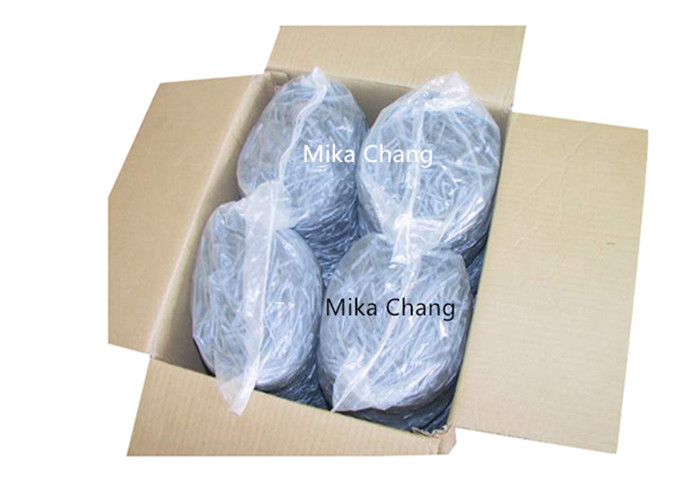

4, Packing:
5, Applying Instruction:
1), Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding
amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2), Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer
fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
3), Mixer Adoption: Double-axle horizontal compelling mixer is priority.
4), Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add
cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be
properly prolonged to make fiber completely Mixed.
5),Directions for Use
ELT-TWIST fibers can be added to the concrete mixture at any time prior to placement of the concrete. It is generally recommended to
add any fiber material at the ready-mix concrete plant during batching. Fibers must be mixed with concrete for a minimum of three to five
minutes at maximum mixing speed, depending on the mixer type, to ensure complete dispersion and uniformity.
6 Application:
- Field Concrete and Industrial Floors
- Coastal Structures & Ports
- Mining
- Tunnel Applications
- Residential Buildings
- Parking Lot Flooring
- Pre-cast and Prefabricated Structures
- Water Structures
- Concrete Pavements
7, Our Company:
Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of
Concrete Admixture in the world market.
Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,
Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.
Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.
Our Mainly Product and Production Capacity as below:
|
Main Item
|
Capacity/Annual
|
||
|
Polypropylene Fiber (PP Fiber)
|
15000mts
|
||
|
Polyester Fiber(PET Fiber)
|
6000mts
|
||
|
Polyvinyl Alcohol Fiber( PVA Fiber)
|
30000mts
|
||
|
Polyacrylonitrile Fiber(PAN Fiber)
|
6000mts
|
||
|
Naphthalene Formaldehyde Sulphonate
|
300000mts
|
||
|
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
|
150000mts
|
||
|
Foam Agent
|
30000mts
|
-
