Virgin Fibrillated Polypropylene Concrete Reinforcement Fiber

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-TWIST

Detail Information

Fiber Length: 54mm+/-1mm Elastic Modulas: Min 4990MPa
Equivalent Diameter: 0.3mm+/-0.04 Melting Point(C Deg.): 160-170
Density(g/cm3): 0.91 Tensile Strength(MPa): 598min.
Similar To: FORTA FERRO/Ruredil X-Fiber 54 Standard: ASTM C1116
Raw Material: Virgin Polypropylene Copolymer Application: Concrete Reinforcement
High Light:

Virgin fibrillated polypropylene fibers

,

monofilament fibrillated polypropylene fibers

,

Virgin monofilament polypropylene fibers

Product Description

              Virgin Polypropylene Copolymer Concrete Reinforcement Macro Synthetic Fiber Twist Blend Fibrillated



1, Description:

ELT-TWIST Synthetic macrofibers are manufactured from a proprietary blend of polypropylene resins, in compliance with ASTM C 1116/C 1116M. They are specifically

engineered for use as shrinkage and temperature (secondary) reinforcement and provide excellent plastic shrinkage control and reduced settlement cracking.

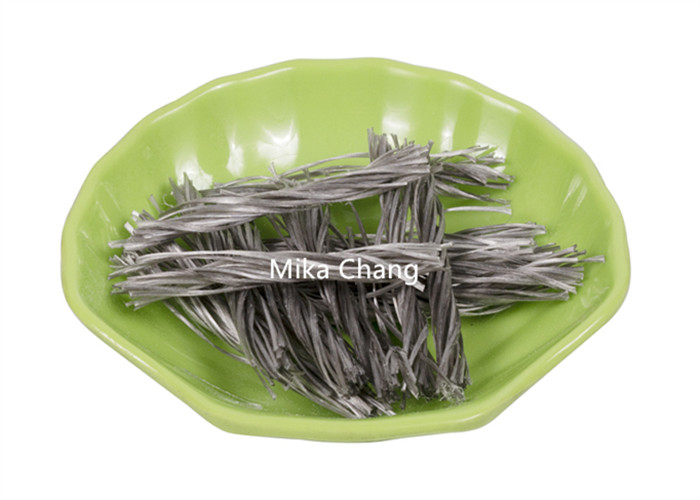

Virgin Fibrillated Polypropylene Concrete Reinforcement Fiber 0

ELT-TWIST fiber Made by 100% virgin homopolymer polypropylene,this macro fibers was produced by our patent advanced technology

for fiber spinning, modified by adding functional additive and special surface-treating. Mixing into cement concrete, it has many advantages such as good

dispersing,better water affinity, strong linking force. It is suited to reinforce and crack-resist to every kinds of cement concrete and mortar, specially used

in engineering of building surface, floor, wall etc…..​​



2,Advantage:

  • Compared with steel fiber, our fiber Twist has the advantages of corrosion and wear-resistant reducing 50% cost with same volume to steel fiber.
  • Decrease the fragility of high strength concrete;
  • Increase the quality of concrete;
  • Increase the freezing resistance of concrete;
  • Increase the impact resistance of concrete;
  • Increase the durability resistance of cncrete;
  • Increase the fire resistance of concrete.

3, Production Process

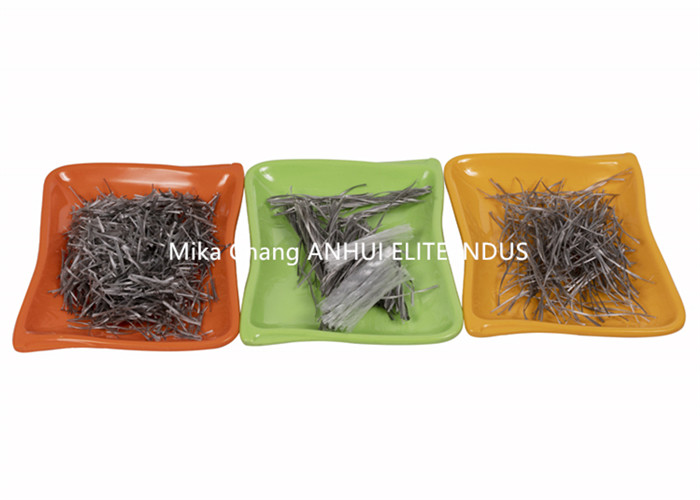

Virgin Fibrillated Polypropylene Concrete Reinforcement Fiber 1



4,Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
PP
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>3500
Resistance to acid & alkali
strong



5, Packing:

PP Fiber Shape Inner Packing
(PE film bag)
Outer Packing
(Plastic Woven bag)
20'gp 40'HQ
hybrid 0.5/1.0 kg 10kg 5500kg 12000kg
  Inner Packing
(water Soluble paper bag)
Outer Packing
(Carton)
20' Gp 40' HQ
hybrid 0.5/1.0 kg 10kg 4000kg 9000kg

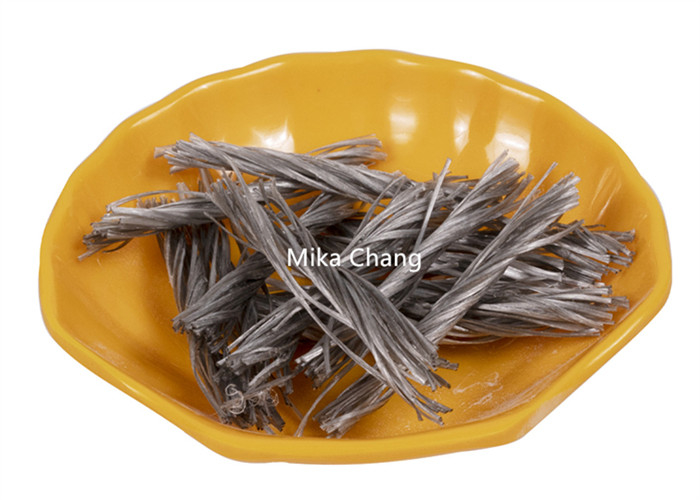

Virgin Fibrillated Polypropylene Concrete Reinforcement Fiber 2



6 Application:

  • Field Concrete and Industrial Floors
  • Coastal Structures & Ports
  • Mining
  • Tunnel Applications
  • Residential Buildings
  • Parking Lot Flooring
  • Pre-cast and Prefabricated Structures
  • Water Structures
  • Concrete Pavements



Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



7, Our Certificate:



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.

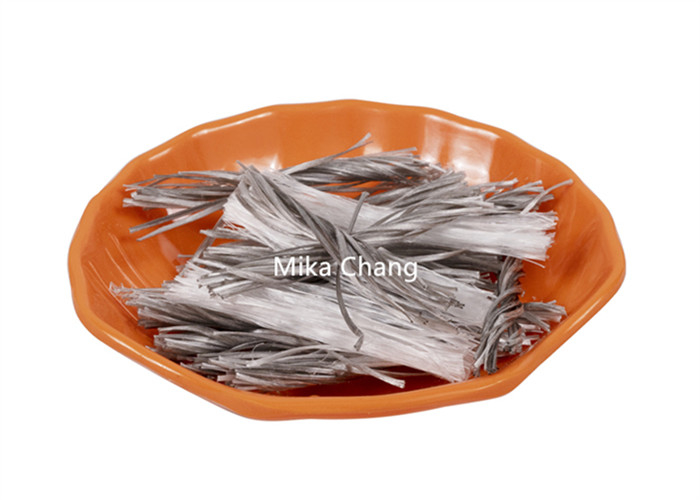

Virgin Fibrillated Polypropylene Concrete Reinforcement Fiber 4





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
