Polypropylene Macro Structural Twist Hybrid Blend Concrete Reinforcement Fiber
hybrid Blend Concrete Reinforcement Fiber
,Structural Concrete Reinforcement Fiber
,Blend reinforced pp FIBER
Polypropylene Macro Structural Synthetic Fibres TWIST HYBRID Blend form for Concrete Tunnel Lining
1, Description:
ELT-Twist is mainly used in concrete applications such as slabs-on-ground,composite steel decks,overlays,pavements,bridge decks,shotcrete,
and precast products–anywhere that steel reinforcement reduction or replacement is the objective.

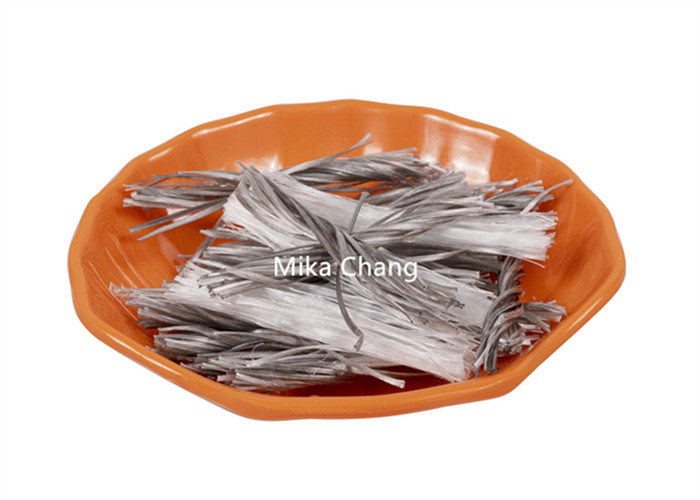

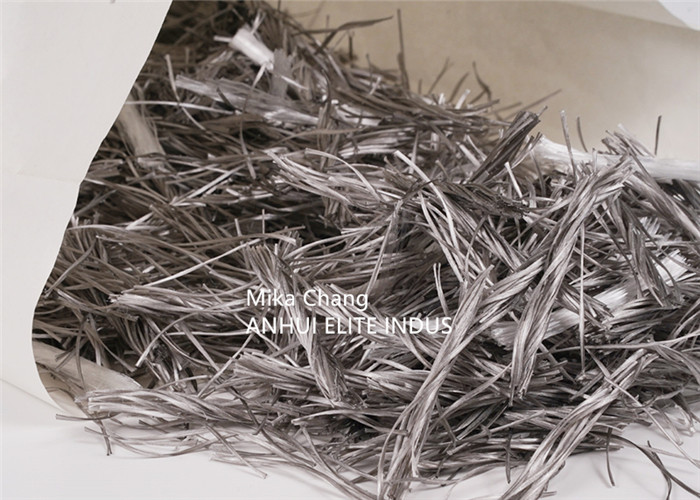

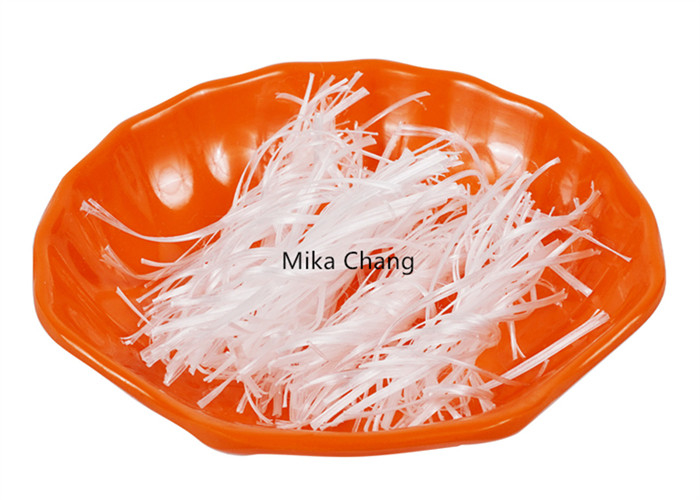

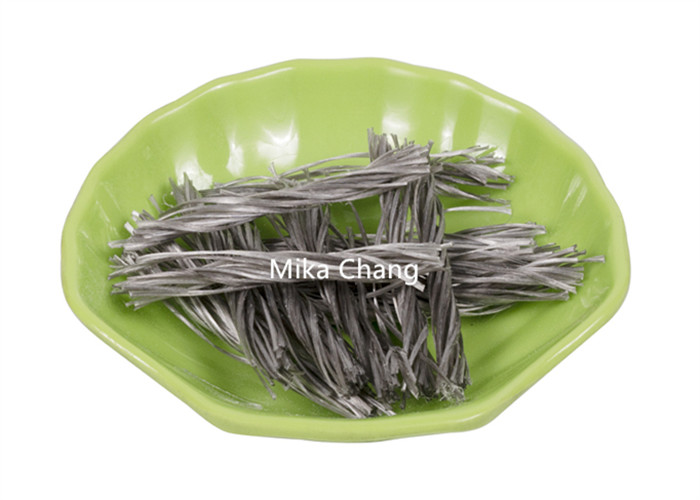

ELT-Twist macro synthetic fiber made of 100% virgin copolymer/polypropylene,is actually a Hybrid of two fibers:A standard fibrillated polypropylene
fiber to reduce and control shrinkage and temperature cracking B twisted-bundle monofilament fiber made of a strong synthetic copolymer,
to increase load-transfer and post-crack performance.
2,Advantage:
- Decrease the fragility of high strength concrete;
- Increase the quality of concrete;
- Increase the freezing resistance of concrete;
- Increase the impact resistance of concrete;
- Increase the durability resistance of cncrete;
- Increase the fire resistance of concrete.
- Enhance durability
- Reduce plastic shrinkage cracking
- Reduce crack width opening
- Improve flexural toughness and fatigue resistance
- Increase impact and shear resistance
- Increase post-cracking residual strength
3, Production Process
4,Specification:
|
Density(g/cm3)
|
0.91 +/- 0.01
|
Raw material
|
Copolymer
|
|
Length(mm)
|
48mm,54mm
|
Equivalent Dia(mm)
|
0.3
|
|
Shape
|
twist
|
break tensile Ratio(%)
|
8-15
|
|
Crack Ratio
|
20+/-5 %
|
Melting point ( C. Deg)
|
160-170
|
|
Tensile Strength
|
>500 MPa
|
Water absorbency
|
NO
|
|
Elastic Modulus (mPa)
|
>4500
|
Resistance to acid & alkali
|
strong
|

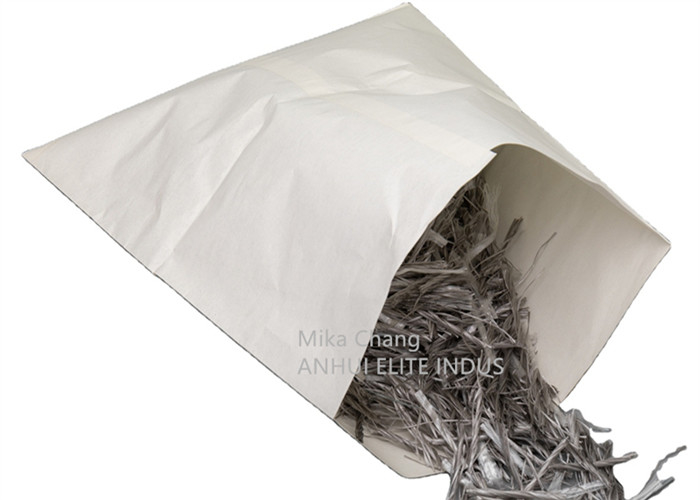

5, Packing:
| PP Fiber Shape | Inner Packing (PE film bag) |
Outer Packing (Plastic Woven bag) |
20'gp | 40'HQ |
| ELT-TWIST | 0.5/1.0 kg | 10kg | 5500kg | 12500kg |
| Inner Packing (water Soluble paper bag) |
Outer Packing (Carton) |
20' Gp | 40' HQ | |
| ELT-TWIST | 0.5/1.0 kg | 10kg | 4000kg | 9300kg |
6 Application:
- Parking Lot Flooring
- Pre-cast and Prefabricated Structures
- Water Structures
- Concrete Pavements
- Industrial and Warehouse Floors
- Residential and commercial Slab on grade
- Driveways and side walks
- White toppings and overlays
- Replacement for welded wire fabric (WWF)
- Composite metal decks and parking structures
- Septic tanks, manholes and burial vaults
- Shotcrete applications
7, Our Certificate:
Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.
-
