550MPa 48mm Plastic Concrete Reinforcement Fiber For Paving

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, T/T, Western Union Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-TWIST

Detail Information

Fiber Length: 48MM 54MM Elastic Modulas: Min 5200MPa
Equivalent Diameter: 0.3mm+/-0.05 Melting Point(C Deg.): 160-170
Density(g/cm3): 0.91 Tensile Strength(MPa): 550Mpa
Similar To: FORTA FERRO/Ruredil X-Fiber 54 Standard: ASTM C1116
Application: Roadway Paving Concrete Color: White/GRAY/Black
High Light:

paving Concrete Reinforcement Fiber

,

550MPa Concrete Reinforcement Fiber

,

Plastic cement fiber additive

Product Description

              550MPa 48mm 54mm Plastic Polypropylene Macro Synthetic Fiber for Roadway Paving Concrete



1, Description:

ELT-Twist Polypropylene bundle twisted fiber is a new type of organic synthetic fiber.The product has the advantages of corrosion resistance,

dispersion resistance,construction resistance and no damage to mixing equipment.At the same time,it has the advantages of high fracture strength,

good dispersion in concrete and strong binding force.It can improve the characteristics of low tensile strength,small ultimate elongation and brittleness

of concrete,and make the concrete have excellent properties such as tensile strength,bending resistance,crack resistance,fatigue resistance and high toughness.

It has been applied in water conservancy,construction,bridge and other engineering fields.

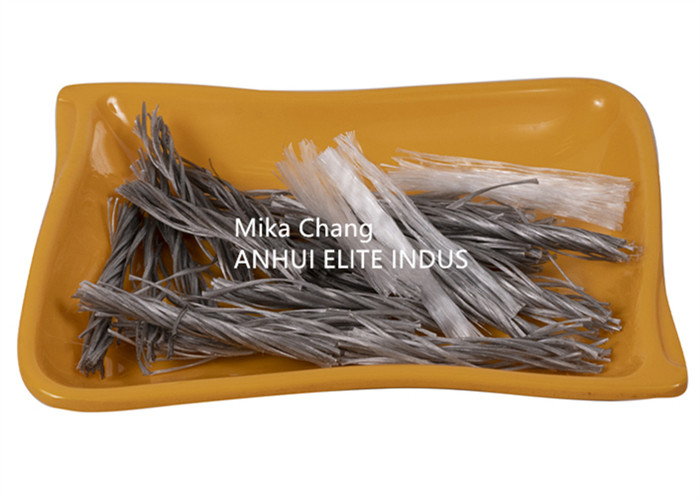

550MPa 48mm Plastic Concrete Reinforcement Fiber For Paving 0



2,Advantage:

  • Effectively reduce the risk of concrete cracks,improve the tensile strength, bending strength and flexural strength of concrete
  • When encountering earthquake and other bad natural disasters,it can reduce the damage
  • Reduce fatal defects in concrete and improve impermeability of concrete
  • Protect the steel bar from corrosion and improve the durability of concrete structure
  • Increase the abrasion resistance of concrete
  • No abrasion to mixing equipment
  • It can be used to prevent tire injury

3, Production Process

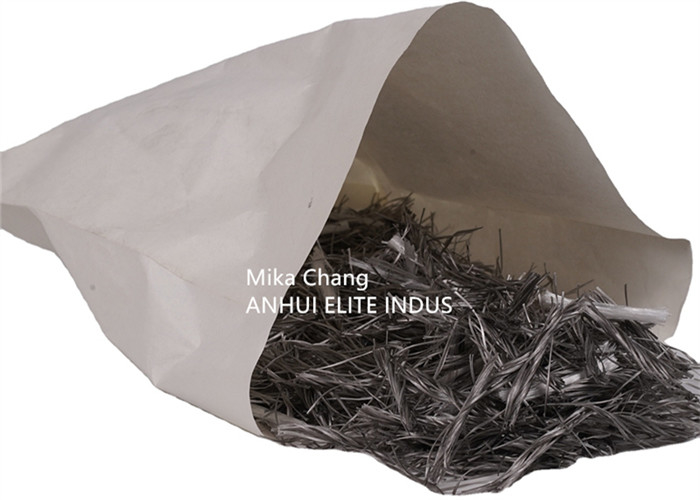

550MPa 48mm Plastic Concrete Reinforcement Fiber For Paving 1



4,Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
Copolymer
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>4500
Resistance to acid & alkali
strong



5, Packing:

PP Fiber Shape Inner Packing
(PE film bag)
Outer Packing
(Plastic Woven bag)
20'gp 40'HQ
ELT-TWIST 0.5/1.0 kg 10kg 5500kg 12500kg
  Inner Packing
(water Soluble paper bag)
Outer Packing
(Carton)
20' Gp 40' HQ
ELT-TWIST 0.5/1.0 kg 10kg 4000kg 9300kg

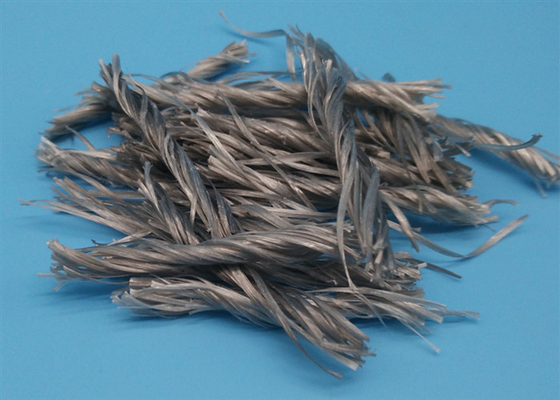

550MPa 48mm Plastic Concrete Reinforcement Fiber For Paving 2



6 Application:

  • Parking Lot Flooring
  • Pre-cast and Prefabricated Structures
  • Water Structures
  • Concrete Pavements
  • Industrial and Warehouse Floors
  • Residential and commercial Slab on grade
  • Driveways and side walks
  • White toppings and overlays
  • Replacement for welded wire fabric (WWF)
  • Composite metal decks and parking structures
  • Septic tanks, manholes and burial vaults
  • Shotcrete applications

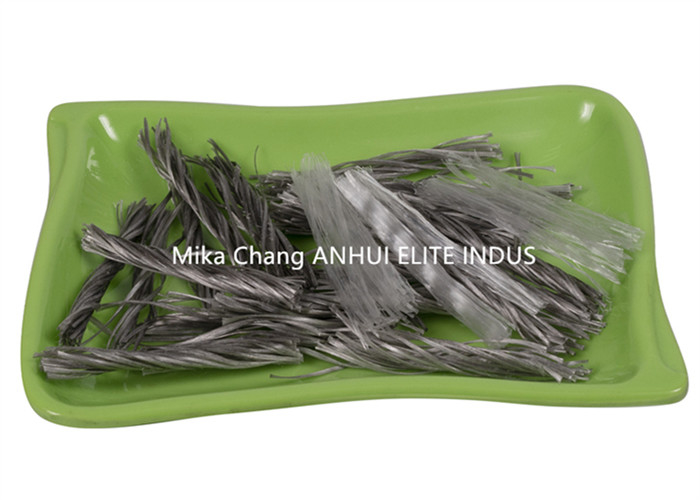

550MPa 48mm Plastic Concrete Reinforcement Fiber For Paving 3



7, Our Certificate:



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.

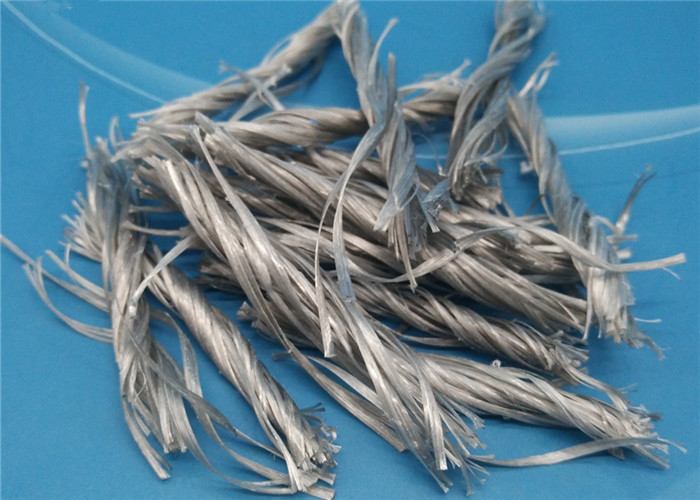

550MPa 48mm Plastic Concrete Reinforcement Fiber For Paving 4
