Virgin Copolymer Macro Synthetic 54MM Fibrillated Concrete Reinforcement Fiber

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, T/T, Western Union Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-TWIST/HYBRID

Detail Information

Elastic Modulas: 5.1GPa Equivalent Diameter: 0.3mm+/-0.02
Melting Point(C Deg.): 160 To 170 Density(g/cm3): 0.91
Tensile Strength(MPa): MIN 550Mpa Similar To: FORTA FERRO/Ruredil X-Fiber 54
Length: 54mm Material: Copolymer Polypropylene
High Light:

54MM Concrete Reinforcement Fiber

,

Macro Synthetic Concrete Reinforcement Fiber

,

54MM fibrillated polypropylene fibers

Product Description

         100% virgin Copolymer Polypropylene Macro Synthetic Fiber 54MM FORTA FERRO



1, Description:

ELT-TWist 54mm Macro FIBER is a modified polyolefin reinforcement fiber,specially designed to be added to poured concrete, in order to provide

flexo-tensile strength and increase the energy absorption capacity, improve impact and abrasion resistance, avoid cracking and increase concrete

durability, improving meshes and metallic fibers properties, and reducing costs.These fibers replace the armor designed to absorb tensile forces created

during the concrete setting and hardening process, making it possible to substitute it, either, partially or totally depending on the case.
If we add
ELT-TWist 54mm Macro FIBER to concrete, energy absorption capacity and tensile strength increases, giving to concrete a residual flexion resistance

of 1.3MPa at 0.5mm CMOD and 0.9Mpa at 3.5mm CMOD with a dosage of 4kg / m3 according to the UNE EN 14889-2: 2008.

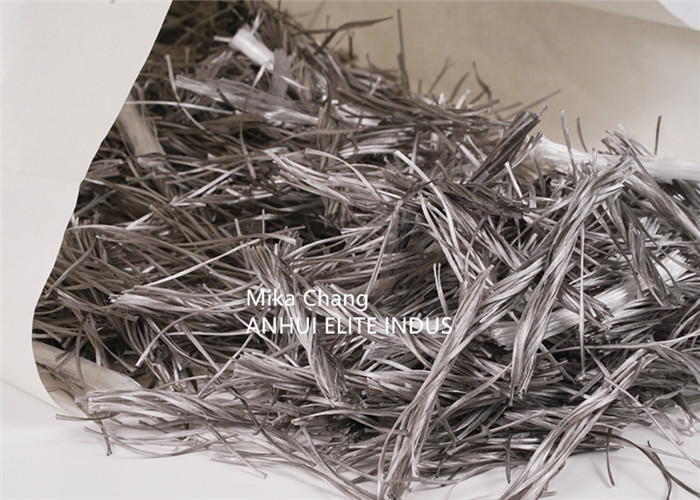

Virgin Copolymer Macro Synthetic 54MM Fibrillated Concrete Reinforcement Fiber 0

 2,Advantage:

  • Controls and inhibits crack formulation caused by plastic shrinkage, settlement or other internal stresses in concrete.
  • Can be used as a replacement to traditional steel mesh or steel fiber reinforcement.
  • Cost effective, replaces secondary reinforcements steel mesh.
  • High tensile strength.
  • Easily distributed throughout the cementitious mix.
  • Compatible with all types of cement and concrete admixtures.
  • Rust free.

3, Production Process

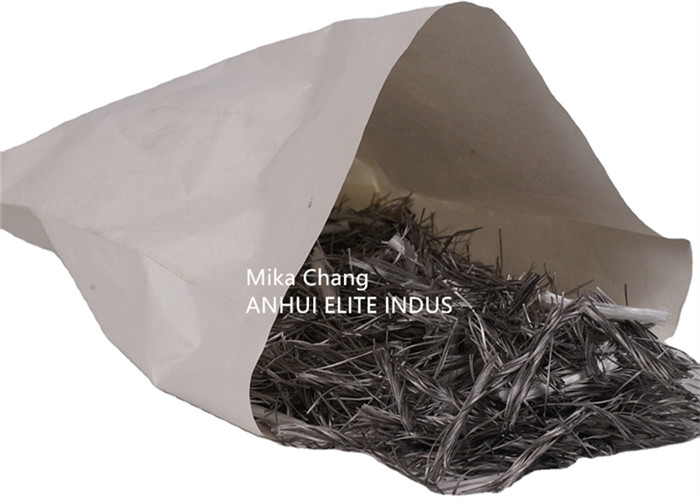

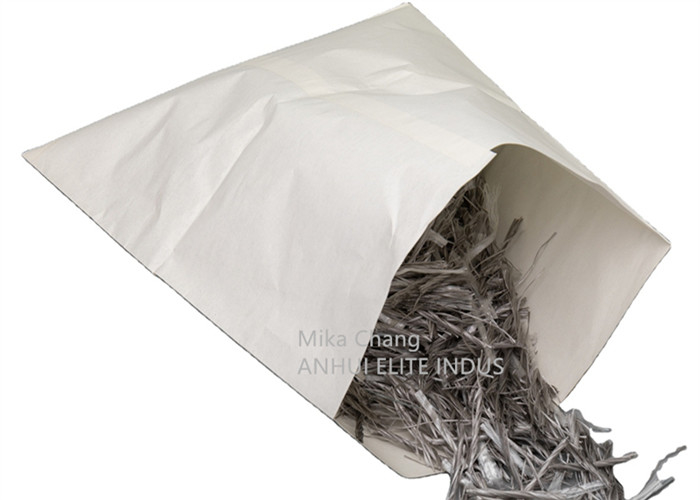

Virgin Copolymer Macro Synthetic 54MM Fibrillated Concrete Reinforcement Fiber 1



4,Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
Copolymer/pp
Length(mm)
54mm
Equivalent Dia(mm)
0.3
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>550 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>5000
Resistance to acid & alkali
strong



5, Packing:

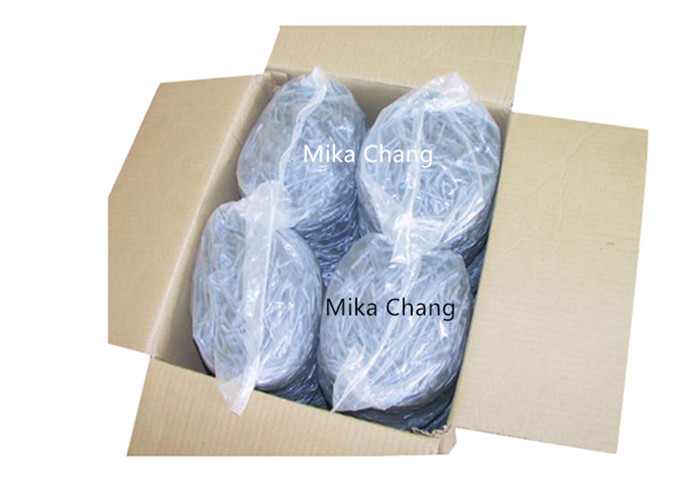

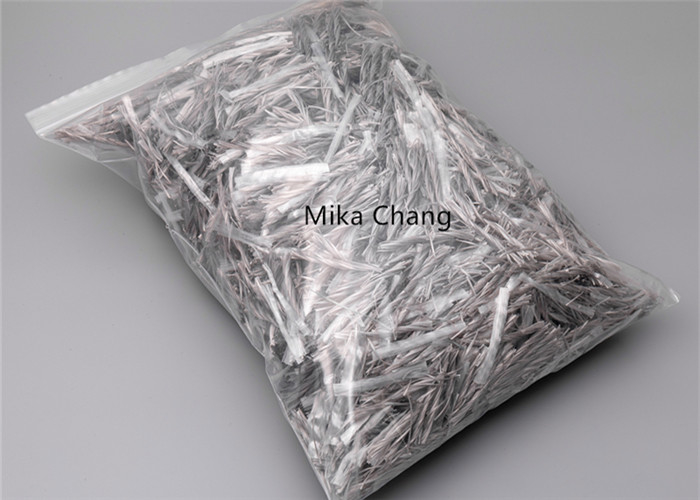

Virgin Copolymer Macro Synthetic 54MM Fibrillated Concrete Reinforcement Fiber 2



6 Application:

  • Field Concrete and Industrial Floors
  • Coastal Structures & Ports
  • Mining
  • Tunnel Applications
  • Residential Buildings
  • Parking Lot Flooring
  • Pre-cast and Prefabricated Structures
  • Water Structures
  • Concrete Pavements

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



7, Our Certificate:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of
Concrete Admixture in the world market.

Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,
Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.

Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.

Virgin Copolymer Macro Synthetic 54MM Fibrillated Concrete Reinforcement Fiber 4

Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
