Polypropylene Polymer Synthetic MacroFiber For Concrete Reinforcement
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
| Minimum Order Quantity : | 500 kgs | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1.0 kg/ PE bag, 10 kgs/plastic woven bag | Delivery Time : | 3-15 days |
| Payment Terms : | T/T, L/C, D/P | Supply Ability : | 600 tons per month |
| Place of Origin: | China | Brand Name: | Elite-indus |
|---|---|---|---|
| Certification: | ISO, CE, FDA | Model Number: | PMFT-0012 |
|
Detail Information |
|||
| Product Name: | Concrete Fiber Synthetic Polymer Fibers For Pavement / Flooring | Fiber Type: | Curved Wave/Undee |
|---|---|---|---|
| Tensile Strength: | ≥480Mpa | Acid &Alkali Resistance: | Strong |
| Application: | Concrete | Free Sample: | Yes |
| Delivery Time: | 3-15 Days | Color: | White, Black, Gray |
| High Light: | fibrillated polypropylene fibers,synthetic polymer fibers |
||
Product Description

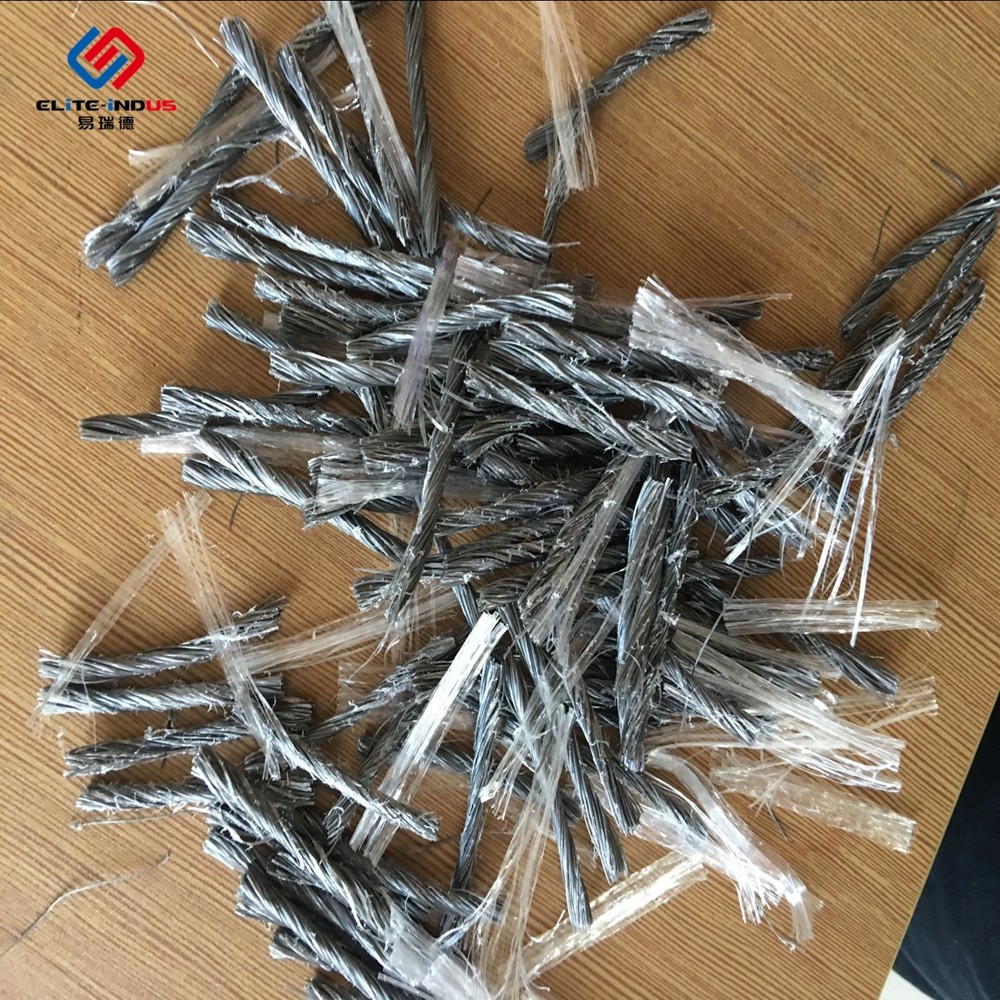

Concrete Fiber Synthetic Polymer Fibers of Twist Form is a patented polypropylene / polyethylene macro synthetic fiber successfully used to replace steel fibers, welded wire mesh and conventional reinforcing bars in a wide variety of applications.
Concrete Fiber Synthetic Polymer Fibers Macro Synthetic Fiber comply with ISO CE and suitable for Concrete and Shotcrete, and are specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements. Concrete with our Macro fiber will have three-dimensional reinforcing with enhanced flexural toughness, impact and abrasion resistance and will also help mitigate the formation of plastic shrinkage cracking in concrete.
Dosage rates will vary depending upon the reinforcing requirements and can range from 2.7 kg/m³ to 5.5 kg/m³.
|
Raw Material
|
100% Virgin Copolymer
|
Crack Elongation
|
20+/-5%
|
|
Fiber Type
|
Twist
|
Equivalent Dia.
|
0.3+/-0.03mm
|
|
Melting Point (C Deg.)
|
160 - 170
|
Density (g/cm3)
|
0.91+/-0.01
|
|
Elastic Modulas (Mpa)
|
3500 min
|
Tensile Strength (MPa)
|
480 min.
|
|
Length
|
30mm, 48mm, 54mm or as per request
|
||
Packing 1 : 1.0kg per PE bag; 10 kgs/plastic woven bag;
total 5600 kgs/1x20`gp; 12000 kgs/1x40`hq
Packing 2: 0.5kg/ 1.0kg per water soluble paper bag, 10 kgs/ carton
total 3600 kgs/1x20`gp; 9000 kgs/1x40`hq
|
Delivery Time
|
3-15 days after deposit (we always keep inventory)
|
|
Sample Time
|
1-3 days after confirmation
|
|
Production Time
|
7-15days
|
|
Payment Methods
|
T/T, L/C, or as per negotiate
|
1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg/m³ ( volume ratio is 0.3% ), reinforcement adding amount is 5.5kg/m³ , Compared with adding 47kg of steel fibre, 5.4kg macro synthetic fibre has the same volume ratio to the concrete.
2, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the macro synthetic fibre is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
3, Mixer Adoption: Double-axle horizontal compelling mixer is priority.
4, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be properly prolonged to make fiber completely Mixed.
5, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same as the normal concrete.
• Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
• Thin walled pre-cast (septic tanks, vaults, walls, etc.)
• Shotcrete for tunnel linings, pool construction and slope stabilization
• Industrial flooring, parking lot, etc....
Compared with steel fiber, Macro synthetic fiber has the advantages of anti-corrosion and wear-resistant reducing 50% cost with same volume to steel fiber.
1. Decrease the fragility of high strength concrete;
2. Increase the quality of concrete;
3. Increase the freezing resistance of concrete;
4. Increase the impact resistance of concrete;
5. Increase the durability resistance of cncrete;
6. Increase the fire resistance of concrete.
Including Macro Synthetic Fiber Wave, we we also produce:
1. Polypropylene Micro fiber monofilament, fibrillated
2. Macro synthetic fiber Twist, Wave, Hybrid
3. Polyester (PET) Fiber for Bitumen concrete
