Embossed Synthetic polymer Macrofiber for Shortcrete Spray Concrete

Contact Now

Embossed Synthetic polymer Macrofiber for Shortcrete Spray Concrete

Minimum Order Quantity :	500kgs	Price :	Negotiation
Packaging Details :	5kgs/ carton	Delivery Time :	3-15 days
Payment Terms :	T/T, , L/C, D/P	Supply Ability :	600mts per month

Place of Origin:	China	Brand Name:	Elite-indus
Certification:	ISO, CE, FDA	Model Number:	PMVE-0011

Detail Information
Product Name:	Embossed Synthetic Polymer Macrofiber	Fiber Type:	Embossed /Wave/Undee
Tensile Strength:	550Mpa Min.	Acid & Alkali Resistance:	Strong
Application:	Concrete Reinforcement	Free Sample:	Yes
Delivery Time:	Within 15 Days	Color:	White, Black, Gray
High Light:	macro synthetic fibers , synthetic polymer fibers

Product Description

Embossed Synthetic Macrofibre for Shortcrete Spray Concrete

Tensile Strength 550mpa min. or 650mpa min.

Elite Synthetic polymer macroFiber of Embossed Form is polymer macro synthetic fiber used to replace steel fibers,

welded wire mesh and conventional reinforcing bars in a wide variety of applications.

Our Synthetic polymer macroFiber comply with ISO, CE and suitable for Shotcrete, spray concrete

and specifically used to provide equivalent tensile and bending resistance to conventional reinforcement requirements.

Concrete with our Macrofiber will have three-dimensional reinforcing with enhanced flexural toughness, impact and abrasion resistance and will also help mitigate the formation of plastic shrinkage cracking in concrete.

Dosage rates will vary depending upon the reinforcing requirements and can range from 2.0 kg/m³ to 8.0 kg/m³.

1. Technical data :

Raw Material	Virgin polypropylene/polyethylene blend	Tensile Strength(MPa):	550 or 650min.
Water Absorbency	No	Density (g/cm3) :	0.92
Melting Point(C Deg.)	160 - 170	Acid & Alkali Resistance	Excellent
Elastic Modulas (Mpa)	9000 min.	Moisture Content	No
Length	48mm, 54mm, 65mm or as per request

2. Packing & Delivery

Packing: 120-140g/ water soluble film bundle, 5kgs/water soluble paper carton
total 1200-1300kg/pallet, 12800kg/20’ container, 25800kg/40’ container

Delivery Time	3-15 days after deposit (we always keep inventory)
Sample Time	1-3 days after confirmation
Production Time	7-15days
Payment Methods	T/T, L/C, or as per negotiate

Embossed Synthetic polymer Macrofiber for Shortcrete Spray Concrete 0

3. Directions For Use

1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg/m³ ( volume ratio is 0.3% ),

reinforcement adding amount is 5.5kg/m³ , Compared with adding 47kg of steel fibre,

5.4kg macro synthetic fibre has the same volume ratio to the concrete.

2, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete.

Considering the requirement of fissure-resistant,

the macro synthetic fibre is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1

( 0.9kg fiber-mesh per sqm of cement concrete).

3, Mixer Adoption: Double-axle horizontal compelling mixer is priority.

4, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession.

After stirring for two minutes,fiber will fully spread and then add cement and water and stir normally.

The addition of materials also can be put into as common concrete,

but the stirring time should be properly prolonged to make fiber completely Mixed.

5, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s,

The maintenance of the fibre concrete should be done same as the normal concrete.

4. Features & Benefits

Economy, Durable, High Tensile Strength

Compared with steel fiber, our fiber has the advantages of anti-corrosion

and wear-resistant reducing 50% cost with same volume to steel fiber.

1. Equivalent strengths to WWM and rebar provided by engineering calculations;
2. Controls and mitigates plastic shrinkage cracking and reduces segregation and bleed-water;
3. Provides three-dimensional reinforcement against micro and macro-cracking;

4. Reduces equipment wear, fiber rebound and increases build-up thickness compared to steel fibers for shotcrete applications;
5. Increases overall durability, fatigue resistance and flexural toughness;

6. Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control;
7. Easily added to concrete mixture at any time prior to placement;
8. Tested in accordance with ASTM C 1116, EN14889-2.

Easy and Convenient to Use

The fibres are wrapped with water-soluble film and uniquely packaged in paper boxes.Just throw the whole boxes of fibres into the concrete mixture, the boxes and film will dissolve within seconds, leaving the fibres to disperse evenly throughout the mixture.

5. Applications:

Slab on Grade and elevated construction (distribution centers, warehouses, etc.)
Thin walled pre-cast (septic tanks, vaults, walls, etc.)

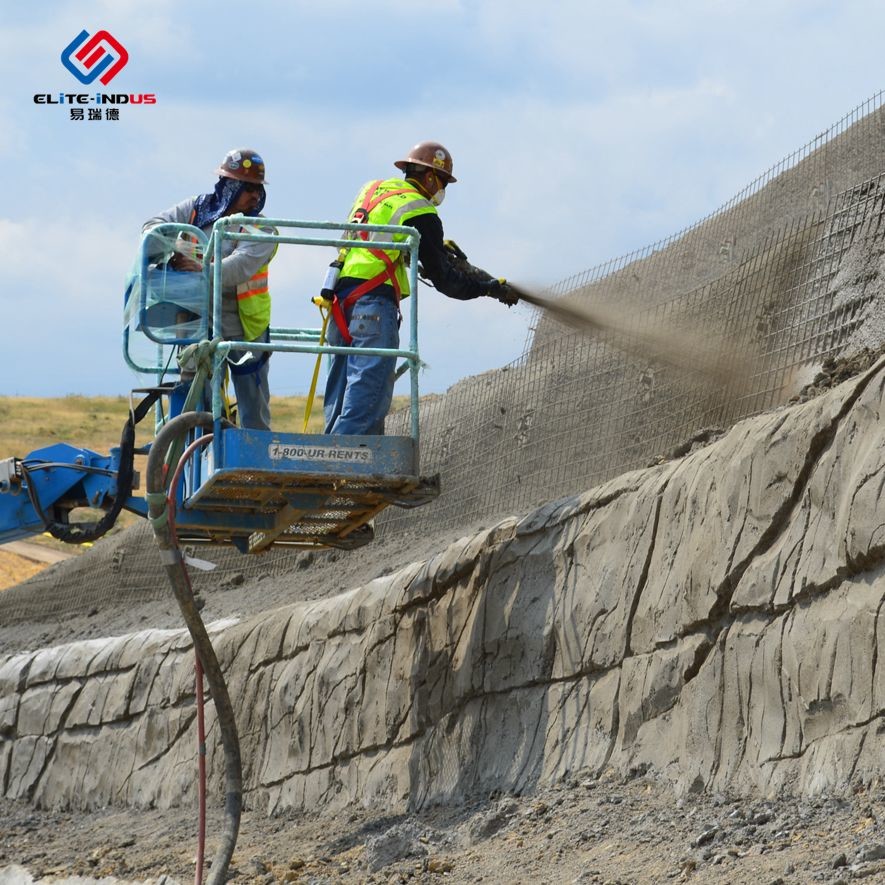

Shotcrete for tunnel linings, pool construction and slope stabilization
Pavements and white-toppings
Embossed Synthetic polymer Macrofiber for Shortcrete Spray Concrete 1

7. Related Products

Including Macro Synthetic Fiber embossed, we we also produce:

1. Polypropylene Micro fiber monofilament, fibrillated
2. Macro synthetic fiber Twist, Wave, Hybrid
3. Polyester (PET) Fiber for Bitumen concrete

Embossed Synthetic polymer Macrofiber for Shortcrete Spray Concrete 2

Company Brief Introduction
ELITE was established in 2007, has become one of the leading and professional suppliers of many kinds of Concrete Reinforcement Fibers in the world market.
ELITE fibers are made by 100% virgin PP materials with advanced equipment of yarn and cutting. We have one full set of precise testing instrument and quality inspection team, technology research & Development team.

Sales Team
Elite own a team with 10+ years experience.
We know well of Chinese Concrete reinforcement fibers on technical inspection, marketing, transportation

Exhibition
We have been to many international exhibitions all over the world. Hope to chat with all our customers face to face.
Recently exhibition information pls refer to our website.
