HDPE Geocell for Slope Stabilization With Height 50 - 300mm
|Minimum Order Quantity :||5000m2||Price :||Negotiation|
|Packaging Details :||one set a packing on pallet||Payment Terms :||L/C, D/P, T/T,|
|Supply Ability :||6000m2 a day|
|Place of Origin:||Anhui, China||Brand Name:||Elite-Indus|
|Certification:||ISO CE||Model Number:||Eltcell|
|Material:||100% Virgin HDPE||Color:||Black, Green, Sand Color, Brown|
|Cell Height:||50mm To 300mm||Welding Distance:||From 220mm To 1600mm|
|Tensile Strength:||1200mpa Min. Or 1450mpa Min.||Application:||Road, River Bed, Slope Protection|
geocell road construction

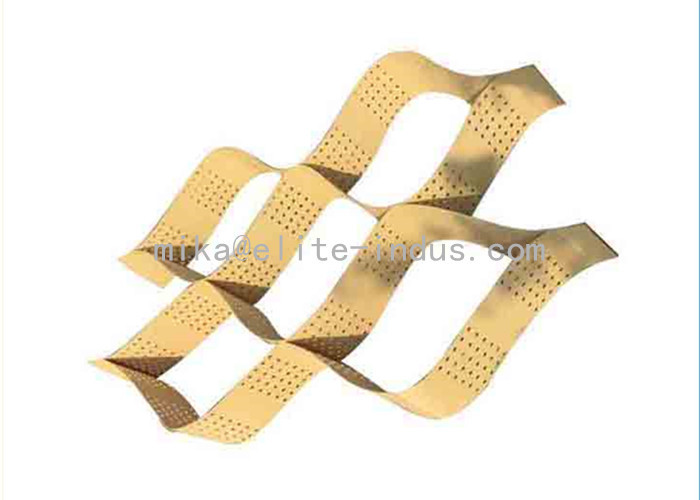

Smooth And Textured Surface Perforated HDPE Geocell Similar To GEOWEB ASTM D Standard
HDPE Geocell Introduction :
HDPE Geocell is a light weight and flexible three-dimensional,expandable panels made from high-density polyethylene (HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration.
Geocell system can be filled with a wide range of material: aggregate,concrete,sand,soil,etc.
It for soil stabilization applications, used to help improve the performance of standard
Construction materials and erosion-control treatments.
HDPE Geocell Production Process:
HDPE Geocell Applications:
¨ Load Support
¨ Slope Protection
¨ Retaining Wall
¨ Channel Protection
¨ Ground Stabilization
¨ Erosion control
HDPE Geocell Advantages :
¨ Virgin HDPE basic with Unique Formula.
¨ Tensile Strength reaches 33000 kN/m² (33 MPa)
¨ Seam Peel Strength above 16 kN/m (USACE GL-86-19); Split Strength above 28 kN/m (EN ISO13426-1 Method C).
¨ Various weld spacing available from 220mm to 1600mm
¨ Various strip height available from 25mm to maximum 300mm
¨ Maximum strip length reaches 8m, expanded width reaches 6m.
¨ Reduce construction thickness, improve load and bearing capacity, long life span, save maintenance cost
¨ Easy to transport, all weather installation with high construction speed.
¨ Local infill materials available, ungraded or recycled materials are acceptable, reduce construction cost.
HDPE Geocell Specifications
|¨ Cell Depth||-||mm||50-300(±0.5)|
|¨ Weld Spacing||-||mm||220-1600(±1.0)|
|¨ Material||-||Virgin HDPE|
|¨ ESCR||ASTM D1603||hr||400|
|¨ Density||ASTM D1505||g/cm3||0.945-0.960|
|¨ Thickness (smooth)||ASTM D5199||mm||1.20 (-5% +10%)|
|¨ Thickness (Textured)||ASTM D5199||mm||1.50 (-5% +10%)|
|¨ Carbon Black||ASTM D1603||%||≥ 1.5|
|¨ Seam Peel Strength||USACE GL-86-19||N||≥ 15KN/m|
|¨ Tensile Strength at Break||ASTM D638||kN/m2||≥ 32000 (TD) / ≥ 30000 kN (MD)|
|¨ Elongation at Break||ASTM D6693||≥ 900 (TD) / ≥ 480 (MD)|
|¨ Oxidative Induction Time||ASTM D3895||min||≥150|
¨ Long-term Seam Peel Strength
|Long term seam peel strength test shall be performed on all resin or pre-manufactured sheet or strips. A 100mm wide seam sample shall support a 72.5kg load for a period of 168 hours minimum in a temperature controlled environment undergoing a temperature change on a 1-hour cycle from 23℃ to 54℃|
|¨ Nominal Expanded Cell Size||252mmx252mm||315mmx315mm||503mmx503mm|
|¨ Nominal Section Size||2.52mx7.3m||2.52mx9.12m||2.52mx14.6m|
|¨ Nominal Section Area||18.37m2||22.96m2||36.74m2|
HDPE Geocell Testing
HDPE Geocell Packing:
