Polypropylene Polymer Synthetic MacroFiber For Concrete Reinforcement
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
| Minimum Order Quantity : | 1000kgs | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp | Delivery Time : | Within 15days after order confirmation |
| Payment Terms : | L/C, D/A, D/P, T/T, , MoneyGram | Supply Ability : | 10000TON PER YEARS |
| Place of Origin: | Anhui | Brand Name: | ELITE-INDUE |
|---|---|---|---|
| Certification: | CE ISO | Model Number: | EltFiber-PMFT |
|
Detail Information |
|||
| Name: | Macro Synthetic Fiber Twisted Bundle | Length: | 48mm, 54mm |
|---|---|---|---|
| Elastic Modulas: | Min 3500MPa | Equivalent Diameter: | 0.3+/-0.03mm |
| Melting Point(C Deg.): | 160 - 170 | Density(g/cm3): | 0.91+/-0.01 |
| Tensile Strength(MPa): | 480 Min. | Acid &Alkali Resistance: | Strong |
| Type 1: | Macro Fiber/Blend | Shape: | Twisted Bundle |
| High Light: | synthetic polymer fibers,fibrillated polypropylene fibers,Twisted Bundle synthetic polymer fibers |
||
Product Description

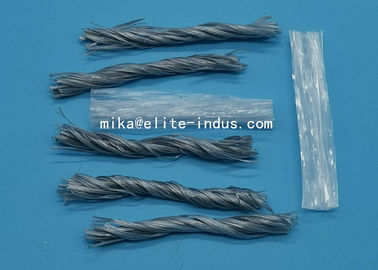

PP Polypropylene Macro Synthetic Fibre Twisted Hybrid 54mm
---------- EltFiber-PMFT
1, Description of Macro Synthetic Fibre
EltFiber-PMFT Polypropylene Macro Synthetic Fibre Twisted Bundle can be used to instead of steel fibre for reinforcement to cement
concrete. this type Polypropylene polymer fibre is used polypropylene as its raw material, produced the rough surface Treatment by
special parallel thread extruding & twisting process.
Macro Synthetic Fibre has high break strength, better dispersion and strong combining ability, Compared with steel fibre,
it has the advantage of easy dispersing and blending, no damage to the mixing equipments, small add quantity, no rust, no corrosion etc.
2, Production Process of Macro Synthetic Fibre
3, Specification of Macro Synthetic Fibre
|
Density(g/cm3)
|
0.91 +/- 0.01
|
Raw material
|
PP
|
|
Length(mm)
|
48mm,54mm
|
Equivalent Dia(mm)
|
0.3±0.03
|
|
Shape
|
twist
|
break tensile Ratio(%)
|
8-15
|
|
Crack Ratio
|
20+/-5 %
|
Melting point ( C. Deg)
|
160-170
|
|
Tensile Strength
|
>500 MPa
|
Water absorbency
|
NO
|
|
Elastic Modulus (mPa)
|
>3500
|
Resistance to acid & alkali
|
strong
|
4, Packing of Macro Synthetic Fibre
5, Applying Instruction of Macro Synthetic Fibre
1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding
amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2, Length:
48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm
3, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer
fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.
5, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add
cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be
properly prolonged to make fiber completely Mixed.
6, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same
as the normal concrete.
6, Our Company:
Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of
Concrete Admixtures, concrete fibers in the world market.
Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,
Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.
Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.
Our Mainly Product and Production Capacity as below:
|
Main Item
|
Capacity/Annual
|
||
|
Polypropylene Fiber (PP Fiber)
|
15000mts
|
||
|
Polyester Fiber (PET Fiber)
|
6000mts
|
||
|
Polyvinyl Alcohol Fiber ( PVA Fiber)
|
30000mts
|
||
|
Polyacrylonitrile Fiber (PAN Fiber)
|
6000mts
|
||
|
Naphthalene Formaldehyde Sulphonate
|
300000mts
|
||
|
Polycarboxylate Superplasticizer (Flake/Powder/Liquid)
|
150000mts
|
||
|
Concrete Foaming Agent
|
30000mts
|
