Virgin Polypropylene Polymer Synthetic Structural Fiber

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,3300kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : T/T, L/C Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: Elt-Wave

Detail Information

Material: Polymer Polypropylene Length: 20mm 25mm 48mm 50mm 54mm
Elastic Modulas: Min 4000MPa Equivalent Diameter: 0.8-1.2mm
Melting Point(C Deg.): 160 - 170 Density(g/cm3): 0.91+/-0.01
Tensile Strength(MPa): 450 Min. Acid &Alkali Resistance: Strong
Moisture Content: 0.0% Crack Elongation(%): 15+/-5
High Light:

polymer synthetic Structural fiber

,

virgin polypropylene Structural fiber

,

Structural synthetic polypropylene fiber

Product Description

        100% virgin polypropylene polymer synthetic Structural macro fiber Wave



1, Description:



ELT-WAVE is made of 100% virgin polymer and it is produced through the process of extruding, stretching, cutting and packing.ELT-WAVE is a

Structural macro synthetic fiber engineered for use as an alternate to steel fibers and welded wire mesh for precast concrete and shotcrete

reinforcement applications. .

ELT-Wave fibers comply with ASTM C1116, Standard Specification for Fiber Reinforced Concrete and Shotcrete, and are specifically used to

improve impact, shatter and abrasion resistance, to increase fatigue resistance, to increase toughness of concrete and provide long term durability

of concrete and cement based building products.

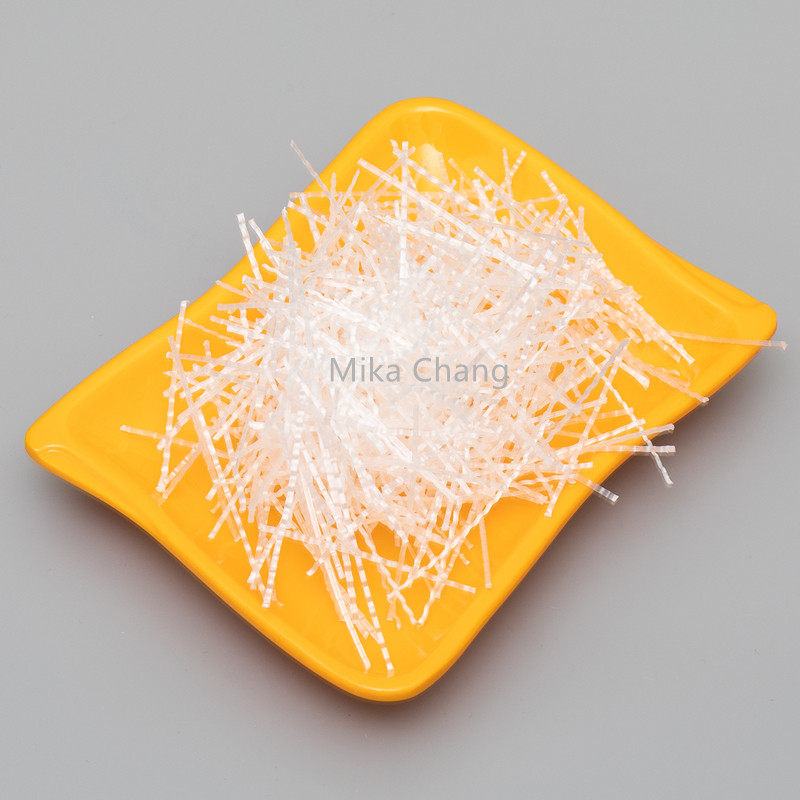

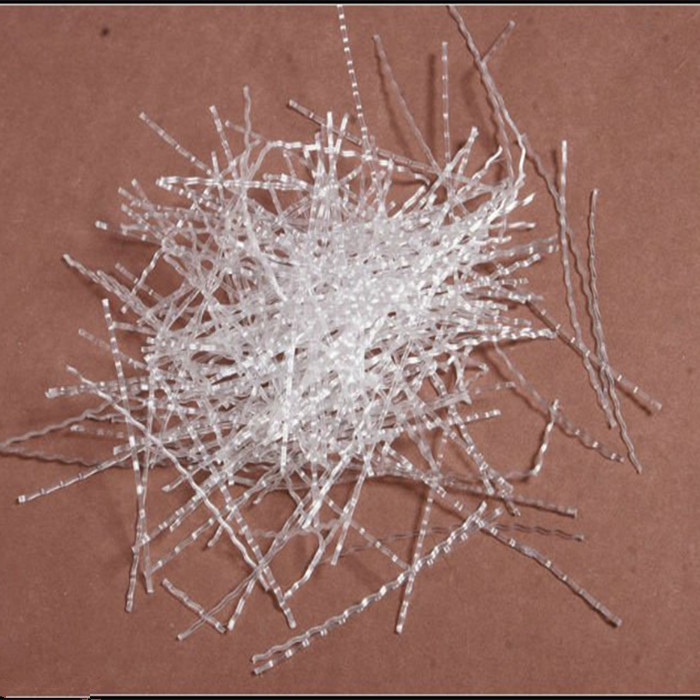

Virgin Polypropylene Polymer Synthetic Structural Fiber 0 Virgin Polypropylene Polymer Synthetic Structural Fiber 1

               PP Wave Fiber PMFC White Color                                                               PP Wave Fiber PMFC Black Color



2,Specification:



Raw Material 100% virgin polymer Tensile Strength(MPa): 500 min.
Water Absorbency: No Density(g/cm3) : 0.91+/-0.01
Melting Point(C Deg.) 160 - 170 Elastic Modulas(Mpa): 5000 min
Acid & Alkali Resistance Excellent Equivalent Diameter(mm) 0.8-1.2
Moisture Content 0.0% Fiber Type Wave/Curved
Color White, Black Crack Elongation(%) 15+/-5
Length: 30mm,48mm,54mm, or as per request
Dosage 2kg/m3 to 3kg/m3



3, Packing:

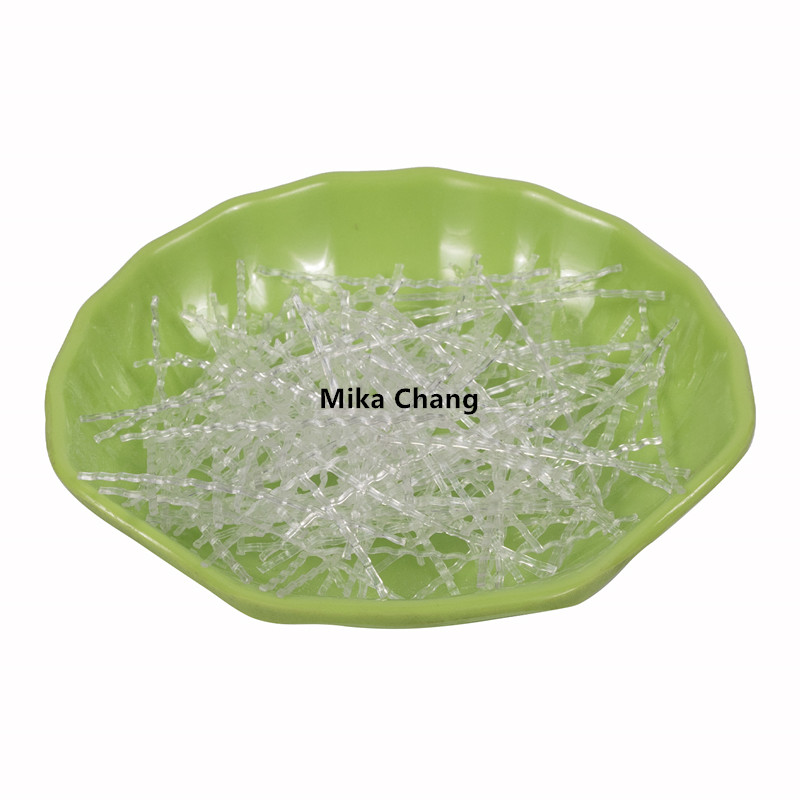

Virgin Polypropylene Polymer Synthetic Structural Fiber 2

           1kg/PE Film bag                                           10kg/Plastic Woven bag                             3300kgs/20'gp,7500kgs/40'HQ





4, Applying Instruction:



A. Resist to shrink & crack

B. Increase seepage resistance
C. Increase friction resistance

D. Increase freezing & thawing resistance
E. Improve tendons protection

F. Replace steel net (using in plastering)

G. Prevent mortar split and crackle expansion H.Increase impact resistance and peeling resistance

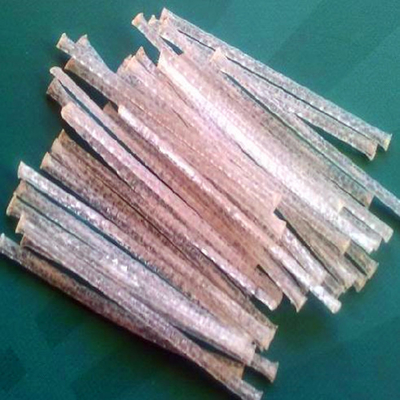

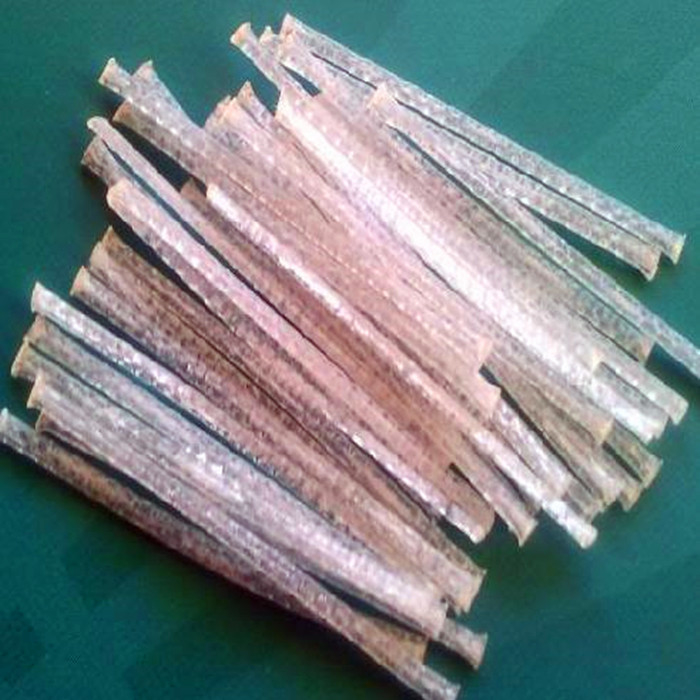

Virgin Polypropylene Polymer Synthetic Structural Fiber 3

Functions:

◆ Provides good impact,fatigue,shrinkage control and ductility in all grade concretes.

◆ Cost saving,Is easier to use,to disperse and safe to handle.

◆ Can be used in highly corrosive circumstance.

◆ The surface has been embossed,which greatly improves the cohesive force between fibres and concrete,and also boosts shrinkage resistance

   and crack resistance.

◆ The toughness of macro synthetic fibre is less stronger than steel fibre. But test has shown slabs on grade and pre-cast concrete predominately

require a dosage rate of between 25kg-40kg of steel fibers per cubic meter, in comparison,using between 2kg-6kg of macro synthetic fibre per

cubic meter of concrete. Synthetic fibers achieve greater strength and ductility in the matrix

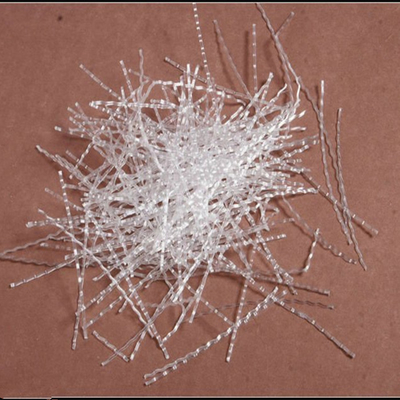

Virgin Polypropylene Polymer Synthetic Structural Fiber 4



5, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





Virgin Polypropylene Polymer Synthetic Structural Fiber 5





Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
