Polypropylene Polymer Synthetic MacroFiber For Concrete Reinforcement
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
Minimum Order Quantity : | 1000kgs | Price : | Negotiation |
---|---|---|---|
Packaging Details : | 1kg/PE film bag, 20kg/Plastic Woven bag,9000kgs/20'gp | Delivery Time : | Within 15days after order confirmation |
Payment Terms : | L/C, D/A, D/P, T/T, , MoneyGram | Supply Ability : | 10000TON PER YEARS |
Place of Origin: | Anhui | Brand Name: | ELITE-INDUE |
---|---|---|---|
Certification: | CE ISO | Model Number: | EltFiber-PPMF |
Detail Information |
|||
Material: | Polypropylene | Length: | 6mm 12mm |
---|---|---|---|
Crack Elongation:: | 20+/-5% | Fiber Diameter: | 18+/-2um |
Melting Point(C Deg.): | 160 - 170 | Density(g/cm3): | 0.91+/-0.01 |
Tensile Strength(MPa): | 450 Min. | Acid &Alkali Resistance: | Strong |
Shape: | Monofilament | Color: | White |
Packing: | PE Film Bag Or Water Soluble Paper Bag | Type: | Microfiber |
High Light: | monifilament glass fiber reinforced polypropylene,6mm glass fiber reinforced polypropylene,6mm monofilament polypropylene fiber |
Product Description
Polypropylene Fiber Microfiber Monofilament Similar To FORTA-FERRO
1, Description:
ELT-Mono fiber Made by 100% virgin homopolymer polypropylene multifilament (monofilament) fibers was produced by our
patent advanced technology for fiber spinning, modified by adding functional additive and special surface-treating. Mixing into
cement concrete, it has many advantages such as good dispersing,better water affinity, strong linking force. It is suited to reinforce
and crack-resist to every kinds of cement concrete and mortar, specially used in engineering of building surface, floor, wall etc…..
Functions
|
Advantages
|
||
Increase freezing & thawing resistance
|
Cost effective
|
||
Improve tendons protection
|
Replaces anti crack mesh reinforcement
|
||
Resist to shrink & crack
|
Decreases construction time and labor
|
||
Increase seepage resistance
|
Inhibits intrinsic cracking in concrete
|
||
Increase friction resistance
|
Do not rust
|
||
Replace steel net (using in plastering)
|
Disperses uniformly throughout the mix
|
||
Prevent mortar split and crackle expansion
|
Explosive spall control
|
3, Applications:
A). suit for the waterproof layer, floor, inner & outer wall of industrial and civil construction.
B). Increase cracking resistance on the surface of industrial workshop, warehouse and parking lot.
C). Increase cracking & seepage resistance of the ground in natatorium, swimming pool, pond and ditch.
D). Suit for any mortar projects and common concrete projects.
E). Highway, bridge and other roads.
4, Applying Instruction:
A). Dosage: for resist the common cracks on surfaces, 0.9kg/m3 fibers to cement mortar Is enough,
and for increasing reinforce and seepage resist application 1.8kg/m3 is enough.
B). Stirring requirement: The proportion of cement, sand and aggregate is no need to be changed.
Put cement, aggregate, additive and fiber together, then stir after adding enough water
and time for stirring can be prolonged for 2~3 minutes in order to make the compound mix completely.
Also it can be mixed with cement and other aggregates in advance, stirring by adding water at worksite before construction.
5, Brief specification:
Compliance
ASTM C1116, Type III
BS EN 14889 - 2
1), Normal Type MicroFiber Monofilament PPMF-A
Raw Material |
Polypropylene | Crack Elongation | 20+/-5% |
Fiber Type |
Monofilament PPMF-A | Fiber Diameter | 20-30um |
Melting Point ( C Deg.) |
160 - 170 | Density (g/cm3) | 0.91+/-0.01 |
Acid &Alkali Resistance |
Strong | Tensile Strength (MPa) | 450 min. |
Length |
Times of 4mm or 6mm | Water absorbency | NO |
Normal Length |
4mm, 6mm, 8mm, 12mm,18mm, 24mm, 30mm etc... (times of 4mm or 6mm with 1mm more or less ) |
2),Special Type MicroFiber Monofilament
A, MicroFiber Monofilament PPMF-B: High Tensile Strength -----------600MPa Min
B, MicroFiber Monofilament PPMF-C: Superfine---------------------------20+/-2um Dia
C, MicroFiber Monofilament PPMF-D: High dispersion------------------Special Surface-Treating
6, Packing:
PP Fiber Shape |
Inner Packing (PE film bag) |

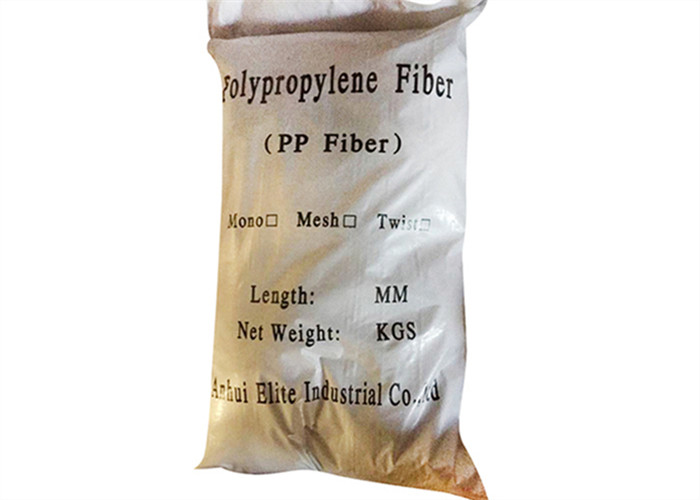

Outer Packing (Plastic Woven bag) |
20’gp | 40’HQ |
Monofilament | 0.6/0.9/1.0 kg | 18/20kg | 10000kg | 20000kg |
Fibrillated | 0.6/0.9/1.0 kg | 12/18kg | 5500kg | 12000kg |
Twist/Hybrid | 0.5/1.0kg | 10kg | 5500kg | 12000kg |
Wave | 1.0kg | 10kg | 3000kg | 7500kg |

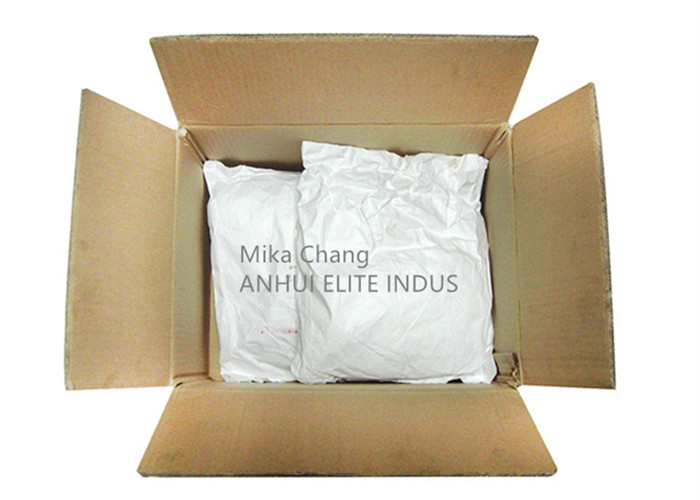

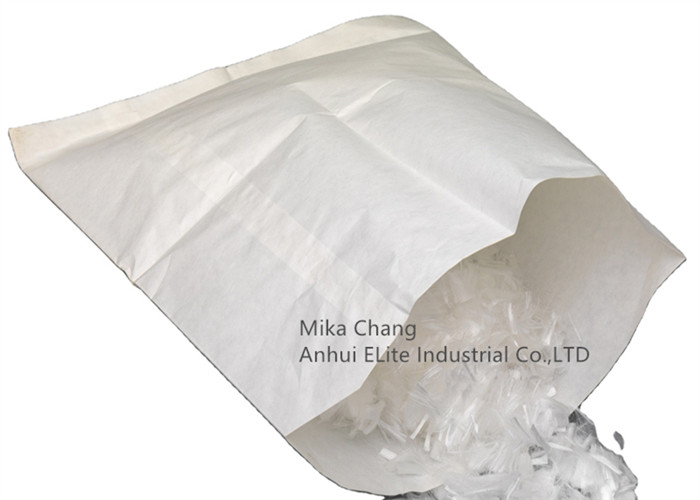

Inner Packing (water Soluble paper bag) |
Outer Packing (Carton) |
|||
Monofilament | 0.6/0.9/1.0 kg | 18/20kg | 8000kg | 16000kg |
Fibrillated | 0.6/1.0 kg | 12kg | 4800kg | 9000kg |
Twist/Hybrid | 0.5/1.0kg | 10kg | 4000kg | 8500kg |
