Polypropylene Polymer Synthetic MacroFiber For Concrete Reinforcement
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
Minimum Order Quantity : | 1000kgs | Price : | Negotiation |
---|---|---|---|
Packaging Details : | 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'gp | Delivery Time : | Within 15days after order confirmation |
Payment Terms : | L/C, T/T, 30% deposite,70% B/L COPY | Supply Ability : | 10000TON PER YEARS |
Place of Origin: | Anhui | Brand Name: | ELITE-INDUE |
---|---|---|---|
Certification: | CE ISO | Model Number: | EltFiber-PMFT |
Detail Information |
|||
Length: | 48mm, 54mm | Elastic Modulas: | Min 5000MPa |
---|---|---|---|
Equivalent Diameter: | 0.25mm | Melting Point(C Deg.): | 160 - 170 |
Density(g/cm3): | 0.91+/-0.01 | Tensile Strength(MPa): | 550 Min. |
Acid &Alkali Resistance: | Strong | Shape: | Twisted Bundle |
Application: | Precast Concrete | HS Code: | 5503400000 |
High Light: | twist Bundle Macro Synthetic Fiber,Polypropylene twist Bundle Fiber,PP twist Bundle Fiber |
Product Description

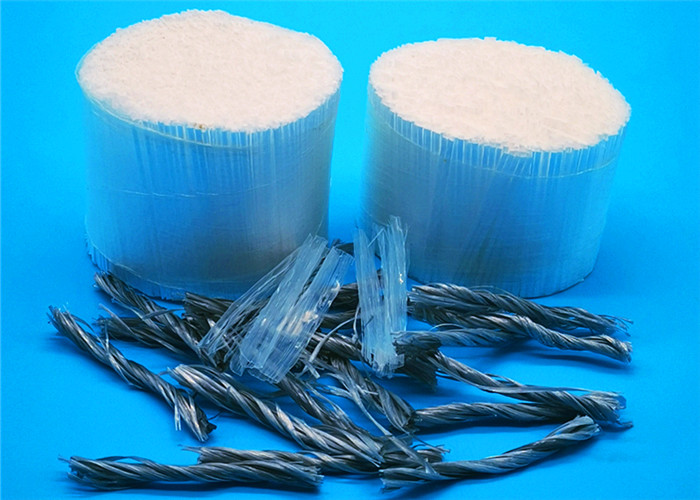

Polypropylene TWIST Bundle Macro Synthetic Fiber Reinforced Precast Concrete
1, Description:
ELT-TWIST Polypropylene polymer fibre is used polypropylene as its raw material, produced the rough surface Treatment by
special parallel thread extruding & twisting process.
it has high break strength, better dispersion and strong combining ability, Compared with steel fibre, it has the advantage of easy
dispersing and blending, no damage to the mixing equipments,small add quantity,no rust,no corrosion etc.
I
2, Production Process
3,Specification:
Density(g/cm3)
|
0.91 +/- 0.01
|
Raw material
|
Polypropylene
|
Length(mm)
|
48mm,54mm
|
Equivalent Dia(mm)
|
0.3±0.03
|
Shape
|
twist
|
break tensile Ratio(%)
|
8-15
|
Crack Ratio
|
20+/-5 %
|
Melting point ( C. Deg)
|
160-170
|
Tensile Strength
|
>500 MPa
|
Water absorbency
|
NO
|
Elastic Modulus (mPa)
|
>3500
|
Resistance to acid & alkali
|
strong
|
4, Packing:
5, Applying Instruction:
1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding
amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer
fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
3, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add
cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be
properly prolonged to make fiber completely Mixed.
4, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same
as the normal concrete.
6, Our CERTIFICATE:
Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.
Our Mainly Product and Production Capacity as below:
Main Item
|
Capacity/Annual
|
||
Polypropylene Fiber (PP Fiber)
|
15000mts
|
||
Polyester Fiber(PET Fiber)
|
6000mts
|
||
Polyvinyl Alcohol Fiber( PVA Fiber)
|
30000mts
|
||
Polyacrylonitrile Fiber(PAN Fiber)
|
6000mts
|
||
Naphthalene Formaldehyde Sulphonate
|
300000mts
|
||
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
|
150000mts
|
||
Foam Agent
|
30000mts
|
