48mm Polymer Macro Synthetic Polypropylene Staple Fiber For Concrete Floors

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, D/A, D/P, T/T, , MoneyGram Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-PMFT

Detail Information

Material: Polypropylene Polymer Fibre Length: Normal Is 48mm/54mm,other Length Can As Request
Equivalent Diameter: 0.3+/-0.03mm Melting Point(C Deg.): 160 - 170
Density(g/cm3): 0.91+/-0.01 Tensile Strength(MPa): 550 Min.
Acid &Alkali Resistance: Strong Blend Type: Twist Blend Fibrillated
Application: Concrete Floors
High Light:

Macro Synthetic polypropylene staple fiber

,

48mm polypropylene staple fiber

,

48mm Concrete polypropylene fiber

Product Description

                Polypropylene Polymer Macro-Synthetic Fibre For Concrete Floors 48mm 54mm



1, Description:



Elt-TWIST Macro Synthetic Fibre Polypropylene Hybrid is a kind of filament bunch assembled together by many round or flat yarns.

When used in concrete, Macro Synthetic Fibre Polypropylene Hybrid will be dispersed into multiple filament, then play a role in enhancing

the toughness of concrete and prevent the crack of concrete.



ELT-TWIST is a 100% virgin blended copolymer synthetic Structural macro-fiber successfully used as an alternate to steel fibers, welded wire

mesh and conventional reinforcing bars in a wide variety of secondary reinforcement applications.

ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.

B twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance.



48mm  Polymer Macro Synthetic Polypropylene Staple Fiber For Concrete Floors 0

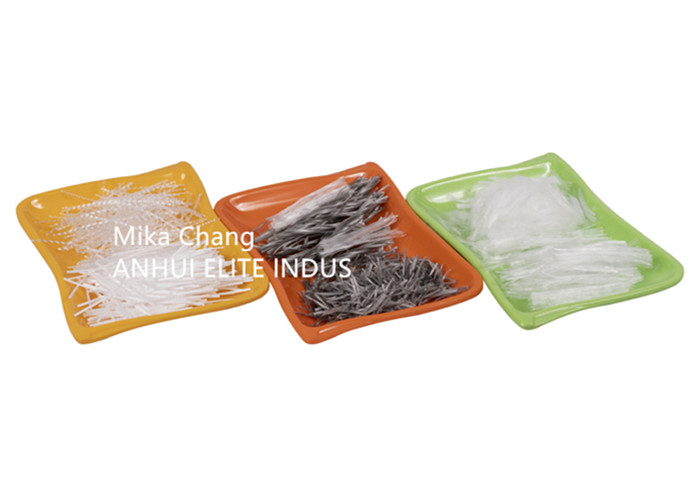

                       PMFT-A: 100% Twist Fiber                                             PMFT-B: Hybrid(PP Twist Fiber Mix with PP Fibrillated Fiber)





2, Production Process

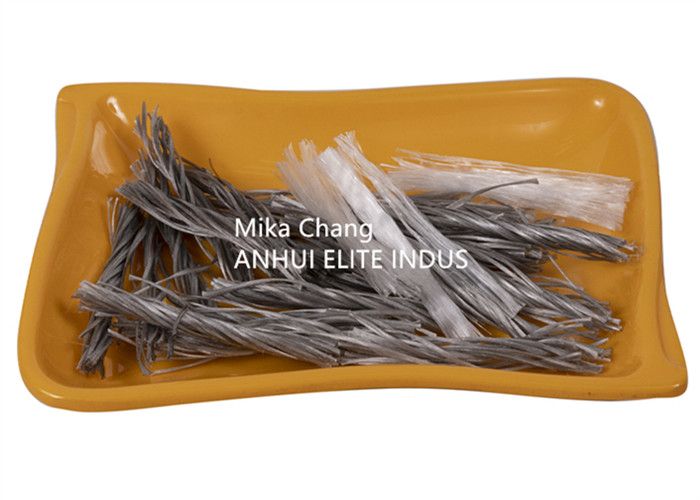

48mm  Polymer Macro Synthetic Polypropylene Staple Fiber For Concrete Floors 1



3,Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
Virgin Copolymer/Polypropylene
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3±0.03
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>550 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>5500
Resistance to acid & alkali
strong

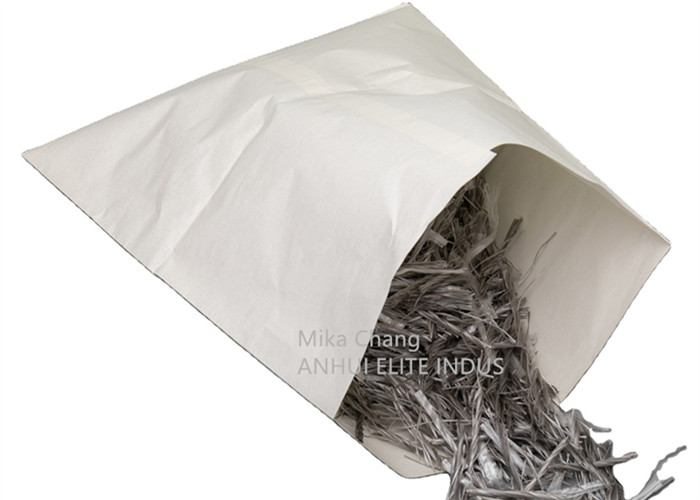

4, Packing:

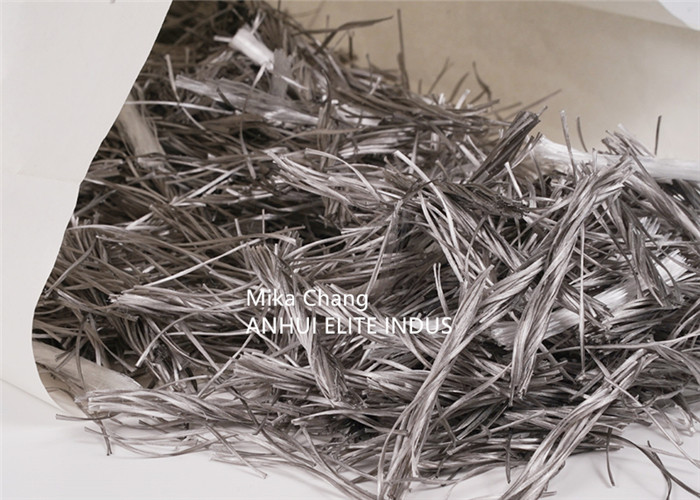

48mm  Polymer Macro Synthetic Polypropylene Staple Fiber For Concrete Floors 2



5, Applying Instruction:



1), Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.


2), Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm


3), Matching Ratio:


Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).

4), Mixer Adoption: Double-axle horizontal compelling mixer is priority.



5), Mixing process:

Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add

cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be

properly prolonged to make fiber completely Mixed.



6), Shaping & Maintenance


There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.



7),Directions for Use

ELT-TWIST fibers can be added to the concrete mixture at any time prior to placement of the concrete. It is generally recommended to

add any fiber material at the ready-mix concrete plant during batching. Fibers must be mixed with concrete for a minimum of three to five

minutes at maximum mixing speed, depending on the mixer type, to ensure complete dispersion and uniformity.



6 Application:



  • Industrial and residential floors
  • Whitetoppings, bridge decks and pavements
  • Thin walled pre-cast (septic tanks, vaults, walls, etc.)
  • Mass concrete

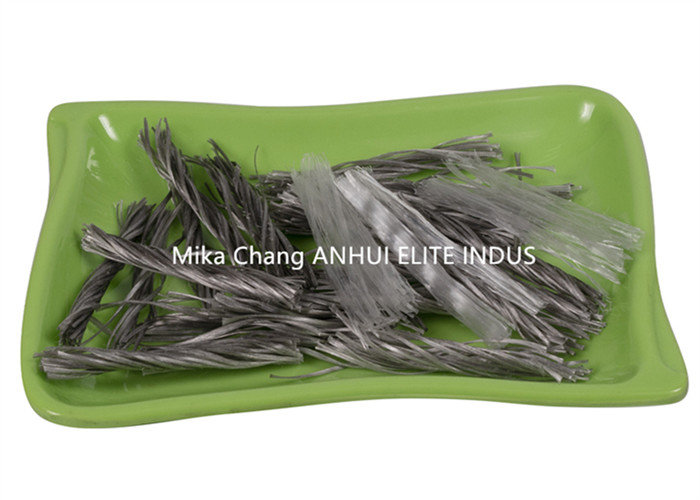

48mm  Polymer Macro Synthetic Polypropylene Staple Fiber For Concrete Floors 3



7, Our Company:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of

Concrete Admixture in the world market.



Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,

Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.



Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing

instrument, testing equipment and quality inspection team, technology research and development team. the management system

was certified by ISO9001 and our products have been passed the CE Certification.





48mm  Polymer Macro Synthetic Polypropylene Staple Fiber For Concrete Floors 4

Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
