Polypropylene Polymer Synthetic MacroFiber For Concrete Reinforcement
Contact Person : Jack
Phone Number : 0086-13955140199
WhatsApp : +8613955140199
| Minimum Order Quantity : | 1000kgs | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp | Delivery Time : | Within 15days after order confirmation |
| Payment Terms : | L/C, D/A, D/P, T/T, , MoneyGram | Supply Ability : | 10000TON PER YEARS |
| Place of Origin: | Anhui | Brand Name: | ELITE-INDUE |
|---|---|---|---|
| Certification: | CE ISO | Model Number: | EltFiber-PMFT |
|
Detail Information |
|||
| Fiber Length: | 48mm,54mm | Elastic Modulas: | Min 4500MPa |
|---|---|---|---|
| Equivalent Diameter: | 0.3+/-0.02mm | Melting Point(C Deg.): | 160-170 |
| Density(g/cm3): | 0.91 | Tensile Strength(MPa): | 580 Min. |
| Acid &Alkali Resistance: | Strong | Application: | Industrial Flooring |
| Use: | High Strength Concrete | ||
| High Light: | high strength Concrete Reinforcement Fiber,Macro reinforced polypropylene fiber,Structural reinforced polypropylene fiber |
||
Product Description
Polypropylene Macro Structural Synthetic Fiber For industrial flooring and high strength concrete
1, Description:
Our high performing polymer macro fibers offers the performance of steel fibers at lower dosage rates.The unique anchorage system
of each macro synthetic fiber and the higher aspect ratio (length/diameter) allows for higher performance in the concrete matrix.
The macro synthetic fibers infuse the concrete with added levels of toughness, energy absorption and durability. In addition,
macro-synthetic fibers provide an added measure of crack control without the risk of corrosion associated with steel.
2,Functions
· Increases impact, shatter and abrasion resistance of concrete
· Reduces segregation, plastic settlement, and shrinkage cracking of concrete
· Provides three-dimensional reinforcement against macro-cracking
· Increases overall durability, fatigue resistance and flexural toughness
· Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control
· Easily added to concrete mixture at any time prior to placement
3, Production Process
4,Specification:
|
Density(g/cm3)
|
0.91 +/- 0.01
|
Raw material
|
PP
|
|
Length(mm)
|
48mm,54mm
|
Equivalent Dia(mm)
|
0.3±0.03
|
|
Shape
|
twist
|
break tensile Ratio(%)
|
8-15
|
|
Crack Ratio
|
20+/-5 %
|
Melting point ( C. Deg)
|
160-170
|
|
Tensile Strength
|
>500 MPa
|
Water absorbency
|
NO
|
|
Elastic Modulus (mPa)
|
>3500
|
Resistance to acid & alkali
|
strong
|

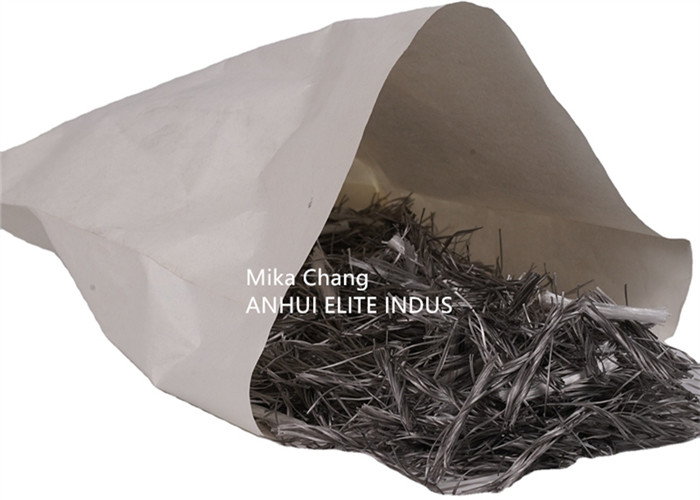

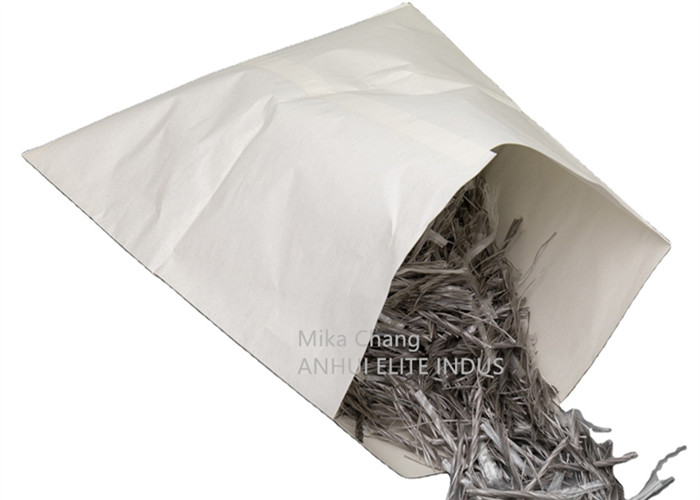

5, Packing:
6, Applying Instruction:
1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding
amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2, Length:
48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm
3, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer
fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.
5, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add
cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be
properly prolonged to make fiber completely Mixed.
6, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same
as the normal concrete.
7 Application:
8, Our Company:
Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of
Concrete Admixture in the world market.
Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,
Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.
Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.
Our Mainly Product and Production Capacity as below:
|
Main Item
|
Capacity/Annual
|
||
|
Polypropylene Fiber (PP Fiber)
|
15000mts
|
||
|
Polyester Fiber(PET Fiber)
|
6000mts
|
||
|
Polyvinyl Alcohol Fiber( PVA Fiber)
|
30000mts
|
||
|
Polyacrylonitrile Fiber(PAN Fiber)
|
6000mts
|
||
|
Naphthalene Formaldehyde Sulphonate
|
300000mts
|
||
|
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
|
150000mts
|
||
|
Foam Agent
|
30000mts
|
9, Related Product:
