Civil Tunnels Macro Synthetic Twist Polypropylene Fiber
Synthetic twist polypropylene fiber
,Macro twist polypropylene fiber
,Civil Tunnels Macro polypropylene fiber
Macro Synthetic Polypropylene Twist Concrete Reinforcement Fiber For Civil Tunnels
1, Description:
ELT-Twist synthetic macro fibers are a Twist form of high strength,high modulus synthetic reinforcement that is evenly distributed
throughout the concrete matrix.The macro fibers add toughness,impact and fatigue resistance to concrete and improve residual
strength and durability. Unlike traditional microfiber reinforcement,ELT-Twist macro fibers are specifically engineered to provide
post-crack control performance.
ELT-TWIST is a 100% virgin blended copolymer synthetic Structural macro-fiber successfully used as an alternate to steel fibers, welded wire
mesh and conventional reinforcing bars in a wide variety of secondary reinforcement applications.
2,Functions
· Increases impact, shatter and abrasion resistance of concrete
· Reduces segregation, plastic settlement, and shrinkage cracking of concrete
· Provides three-dimensional reinforcement against macro-cracking
· Increases overall durability, fatigue resistance and flexural toughness
· Reduction of in-place cost versus wire mesh for temperature / shrinkage crack control
· Easily added to concrete mixture at any time prior to placement
Advantage:
- Saves time from handling the steel mesh on the site.
- Significantly reduces application times and direct labor expenses.
- Due to being non-corrosive significantly reduces slab thickness.
- Prevention of corrosion increases service life and reduces maintenance costs.
- Eliminates labor related risks and removes potential hazards from the work site related to steel mesh and steel fibers.
- Does not damage construction equipoment as steel fiber.
- Reduces costs of storage and due to not having a shelf life can be stored for long-term.
- Overall cost is lower than steel mesh and steel fibers.
3, Production Process
4,Specification:
|
Density(g/cm3)
|
0.91 +/- 0.01
|
Raw material
|
PP
|
|
Length(mm)
|
48mm,54mm
|
Equivalent Dia(mm)
|
0.3±0.03
|
|
Shape
|
twist
|
break tensile Ratio(%)
|
8-15
|
|
Crack Ratio
|
20+/-5 %
|
Melting point ( C. Deg)
|
160-170
|
|
Tensile Strength
|
>500 MPa
|
Water absorbency
|
NO
|
|
Elastic Modulus (mPa)
|
>3500
|
Resistance to acid & alkali
|
strong
|

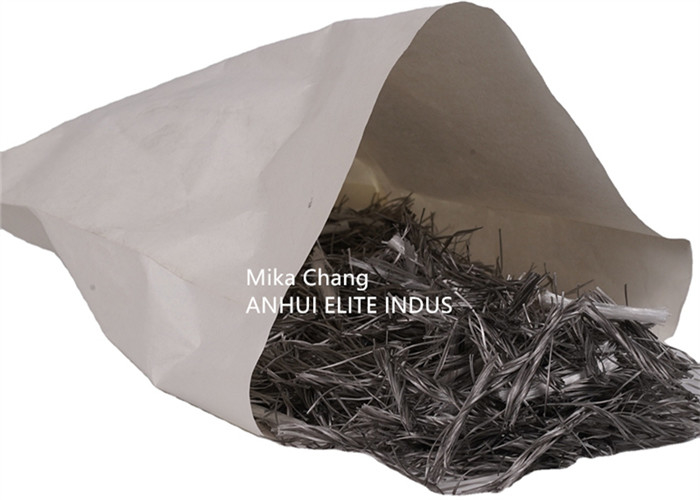

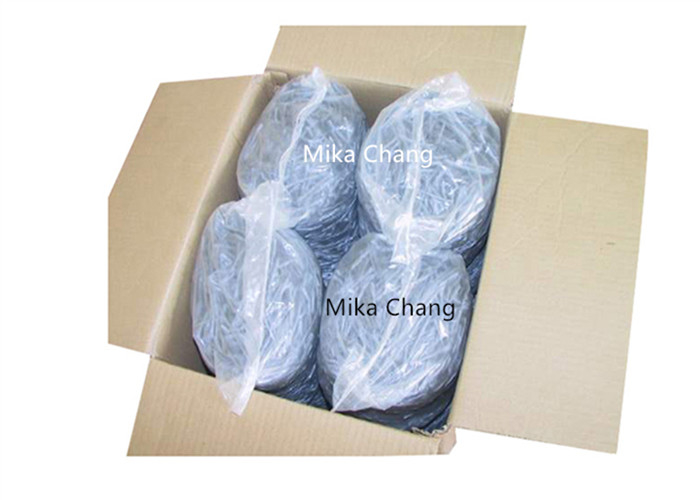

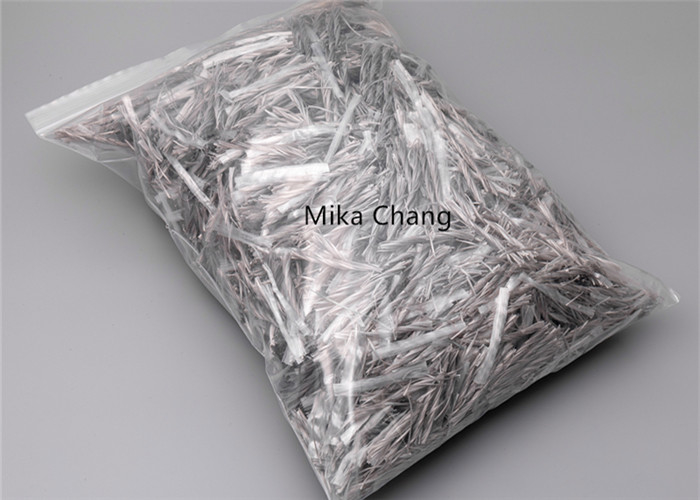

5, Packing:
- A,1kgs/PE film bag,10PE film bags/10Kg/Plastic Woven Bag.5500kgs/20'gp,11000kgs/40'gp,12000kgs/40'HQ
- B,1kgs/PE film bag, 10PE film bags/carton, 4000kgs/20'gp,8000kgs/40'gp, 9300kgs/40HQ
- C,0.5kgs/Water-soluble paper bag, 20 paper bag bags/carton, 4000kgs/20'gp,8000kgs/40'gp, 9300kgs/40HQ
- D,other packing can as per your request
6, Applying Instruction:
1, Ration design of the fibre concrete:
Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding
amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2, Length:
48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm
3, Matching Ratio:
Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer
fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.
5, Mixing process:
Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add
cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be
properly prolonged to make fiber completely Mixed.
6, Shaping & Maintenance
There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same
as the normal concrete.
7 Application:
- Field Concrete and Industrial Floors
- Coastal Structures & Ports
- Mining
- Tunnel Applications
- Residential Buildings
- Parking Lot Flooring
- Pre-cast and Prefabricated Structures
- Water Structures
- Concrete Pavements
8, Our Company:
Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of
Concrete Admixture in the world market.
Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,
Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.
Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.
Our Mainly Product and Production Capacity as below:
|
Main Item
|
Capacity/Annual
|
||
|
Polypropylene Fiber (PP Fiber)
|
15000mts
|
||
|
Polyester Fiber(PET Fiber)
|
6000mts
|
||
|
Polyvinyl Alcohol Fiber( PVA Fiber)
|
30000mts
|
||
|
Polyacrylonitrile Fiber(PAN Fiber)
|
6000mts
|
||
|
Naphthalene Formaldehyde Sulphonate
|
300000mts
|
||
|
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
|
150000mts
|
||
|
Foam Agent
|
30000mts
|
