5.2GPa Grey Color Monofilament Polypropylene Concrete Reinforcement Fiber

Minimum Order Quantity : 1000kgs Price : Negotiation
Packaging Details : 1kg/PE film bag, 10kg/Plastic Woven bag,5500kgs/20'gp,12500KG/40'gp Delivery Time : Within 15days after order confirmation
Payment Terms : L/C, T/T, Western Union Supply Ability : 10000TON PER YEARS
Place of Origin: Anhui Brand Name: ELITE-INDUE
Certification: CE ISO Model Number: EltFiber-Macro Fiber 54

Detail Information

Name: Polypropylene PP Twisted Bundle Fiber Elastic Modulas: 5.2GPa
Equivalent Diameter: 0.3mm+/-0.03 Melting Point(C Deg.): 160-170
Density(g/cm3): 0.91 Tensile Strength(MPa): MIN 550Mpa
Similar To: FORTA FERRO/Ruredil X-Fiber 54 Standard: ASTM C1116
Shape: Twisted Bundle Length: 54mm
Application: Concrete Reinforcement
High Light:

5.2GPa Concrete Reinforcement Fiber

,

5.2GPa Polypropylene Reinforcement Fiber

,

ASTM C1116 monofilament polypropylene fiber

Product Description

           Grey Color Polypropylene PP Twisted Bundle Fiber for Concrete Reinforcement



1, Description:

Macro Fiber ELT-TWIST 54 Synthetic Macro Fiber Hybrid,when used at an appropriate dosage,is an option for the replacement of WWF

and rebar as a safe and easy-to-use reinforcing system that is rust proof,alkali resistant,and compliant with industry codes when used in

concrete mixed in accordance with ASTM C94/C94M.

ELT-TWIST is a 100% virgin blended copolymer synthetic Structural macro-fiber successfully used as an alternate to steel fibers, welded wire
mesh and conventional reinforcing bars in a wide variety of secondary reinforcement applications.

ELT-Twist is actually a Hybrid of two fibers:A standard fibrillated polypropylene fiber to reduce and control shrinkage and temperature cracking.
A twisted-bundle monofilament fiber made of a strong synthetic copolymer, to increase load-transfer and post-crack performance

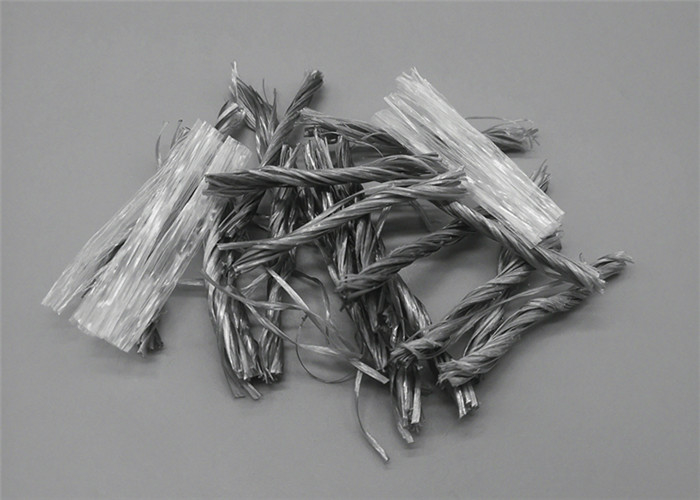

5.2GPa Grey Color Monofilament Polypropylene Concrete Reinforcement Fiber 0

 2,Advantage:

  • Controls and inhibits crack formulation caused by plastic shrinkage, settlement or other internal stresses in concrete.
  • Can be used as a replacement to traditional steel mesh or steel fiber reinforcement.
  • Cost effective, replaces secondary reinforcements steel mesh.
  • High tensile strength.
  • Easily distributed throughout the cementitious mix.
  • Compatible with all types of cement and concrete admixtures.
  • Rust free.

3, Production Process

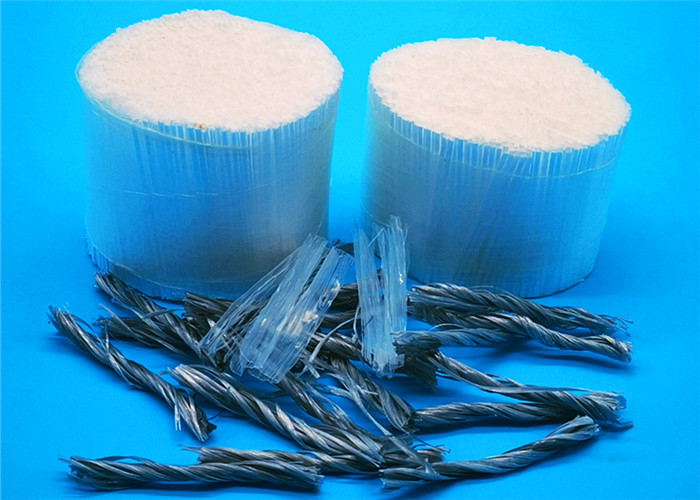

5.2GPa Grey Color Monofilament Polypropylene Concrete Reinforcement Fiber 1



4,Specification:



Density(g/cm3)
0.91 +/- 0.01
Raw material
Copolymer
Length(mm)
48mm,54mm
Equivalent Dia(mm)
0.3
Shape
twist
break tensile Ratio(%)
8-15
Crack Ratio
20+/-5 %
Melting point ( C. Deg)
160-170
Tensile Strength
>500 MPa
Water absorbency
NO
Elastic Modulus (mPa)
>4500
Resistance to acid & alkali
strong



5, Packing:

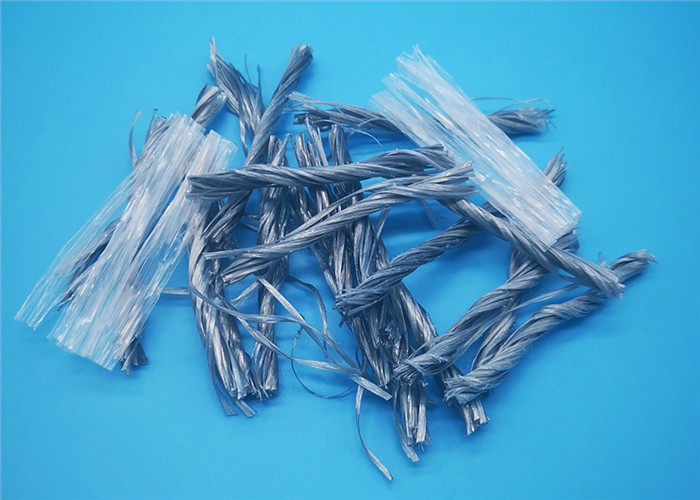

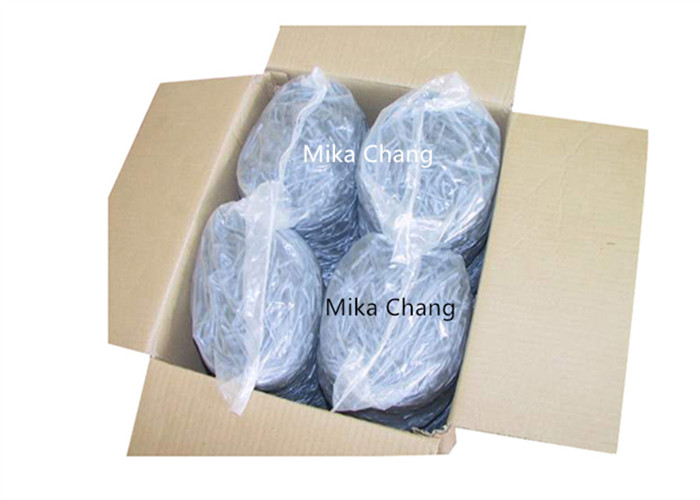

5.2GPa Grey Color Monofilament Polypropylene Concrete Reinforcement Fiber 2



6, Applying Instruction:



1, Ration design of the fibre concrete:

Generally the recommended amount to add to the concrete is more than 2.7kg per sqm ( volume ratio is 0.3% ),reinforcement adding

amount is 5.5kg, Compared with adding 47kg of steel fibre, 5.4kg polymer fibre has the same volume ratio to the concrete.
2, Length:

48mm or 54mm for common crack-resistant requirement. Other length can as per your request,such as 19mm
3, Matching Ratio:

Usually, it is no need to Change the matching ratio of the concrete. Considering the requirement of fissure-resistant, the polymer

fiber is recommend to combine with the polypropylene fiber mesh with the volume ratio of 1:1 ( 0.9kg fiber-mesh per sqm of cement concrete).
4, Mixer Adoption: Double-axle horizontal compelling mixer is priority.

5, Mixing process:

Crushed stones, fibers and sands are put into the mixer in succession. After stirring for two minutes,fiber will fully spread and then add

cement and water and stir normally. The addition of materials also can be put into as common concrete, but the stirring time should be

properly prolonged to make fiber completely Mixed.

6, Shaping & Maintenance

There is no special requirement, may along the vibrating time for 30s, The maintenance of the fibre concrete should be done same

as the normal concrete.



7 Application:

  • Slab on grade.
  • Elevated slabs.
  • Parking areas.
  • Stamped concrete.
  • Pre-cast concrete.
  • Water tanks.
  • Pavements.
  • Shotcrete.
  • Renders.
  • Composite decks.

Environmentally Friendly Concrete Reinforcement Fiber Macro Plastic Reinforced Concrete



7, Our Certificate:



Anhui Elite Industrial Co.,LTD was established in 2007, has become one of the leading and professional suppliers of all kinds of
Concrete Admixture in the world market.

Our Product were widely used in all kinds of concrete,mortar,plaster projects and exported to more than 30 countries, Such as USA,
Russia, Germany, Australia, Chile, UAE, Korea, Vietnam, Africa etc.

Our Fibers was made by 100% Virgin Material with advanced equipment of yard and cutting, we have one full set of precise testing
instrument, testing equipment and quality inspection team, technology research and development team. the management system
was certified by ISO9001 and our products have been passed the CE Certification.

5.2GPa Grey Color Monofilament Polypropylene Concrete Reinforcement Fiber 4

Our Mainly Product and Production Capacity as below:



Main Item
Capacity/Annual
Polypropylene Fiber (PP Fiber)
15000mts
Polyester Fiber(PET Fiber)
6000mts
Polyvinyl Alcohol Fiber( PVA Fiber)
30000mts
Polyacrylonitrile Fiber(PAN Fiber)
6000mts
Naphthalene Formaldehyde Sulphonate
300000mts
Polycarboxylate Superplasticizer(Flake/Powder/Liquid)
150000mts
Foam Agent
30000mts
